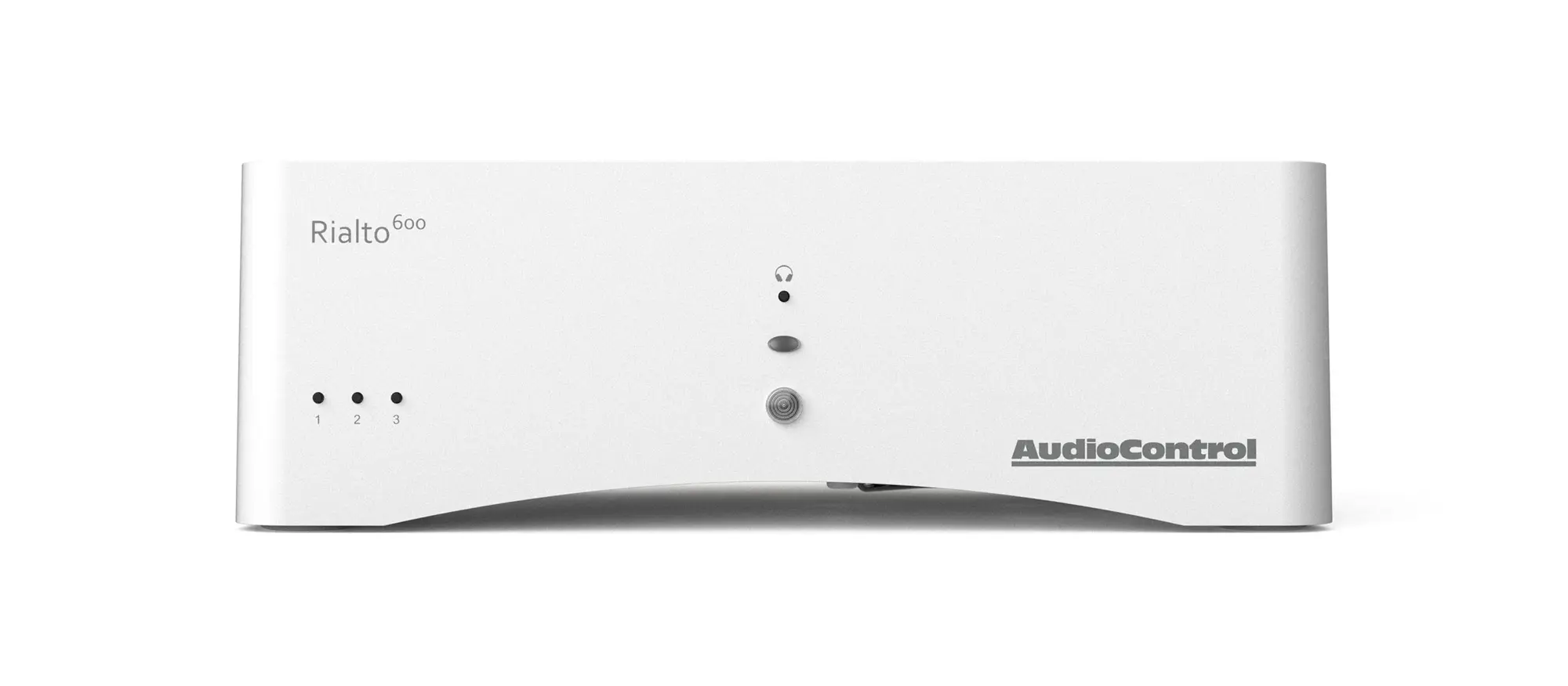

AudioControl Rialto 600 (white)

2.1 Channel Compact Amplifier with Audiophile-grade Wolfson Digital to Analog Converter

Rialto 600

Building upon the success of the Rialto 400 amplifier/DAC with the addition of Volume Control, dual-digital inputs, plus direct or remote IR and RS-232 control, the Rialto 600 is the benchmark solution in local zone audio amplification. A breakthrough, compact, high-powered amplifier with an audiophile-grade Wolfson Digital-to-Analog Converter, the Rialto 600 with variable volume output is an ideal zone solution for local speakers and source playback, analog or digital.

AudioControls Rialto 600 provides dramatic audio quality to improve performance in any localized audio zone. Upgrade the sound of analog or digital television audio, including gaming, by adding the Rialto 600 to external speakers. Improve streamed music sources like SONOS, HEOS, and others by transferring their digital signals for ultra-precise decoding by the onboard Wolfson DAC and amplification by the Rialto 600s authoritative 100 watts into 8 Ohms or 200 watts into 4 Ohms. Low-impedance stable down to 3.6 Ohms, the Rialto may also be bridged for use as a 400-watt monoblock.

The feature-packed Rialto 600 is designed, engineered, and manufactured for the residential and Pro Audio custom installation markets in the rainforest of the Northwest USA, somewhere North of Seattle, and is backed by AudioControls renowned 5-year warranty.

• 2 channels with bridged mono and subwoofer mono preamp outputs
• 100w into 8 Ohms, 200W into 4 Ohms, 400W mono into 8 Ohms
• RS-232 & IR Control
• High-quality Wolfson DAC 16-/24-bit, 32 to 192 kHz Sampling Frequencies

SKU: ACP-RIALTO

INPUTS

• Digital Inputs: Optical TOSLINK x 2, Coaxial S/PDIF 75 ohms x 2
• Analog Inputs: Stereo RCA x 1
• Input Sensitivity: 230mV
• Signal Sense Trigger Minimum: 10mV

CONTROL

• 12 Volt Trigger Inputs: 1 (mini jack)
• IR Inputs: 1 (mini jack)
• IR Outputs: 1 (mini jack)
• RS-232 Serial Control: Yes

OUTPUTS

• Amplifier Channels: 2
• Power Output (8Ω): 100W per channel
• Power Output (4Ω): 200W per channel
• Minimum Speaker Load: 4Ω
• Preamp Outputs: Mono RCA Subwoofer, Mono RCA Bridged

GENERAL

• Power Consumption (typical usage): 40W
• Power Consumption (maximum): 520W
• Line Voltage: 100-120VAC/200240VAC Switchable

PERFORMANCE

• Signal-to-Noise Ratio: >95dB
• Frequency Response: 20Hz-20kHz
• Total Harmonic Distortion: 0.09%

WEIGHT & DIMENSIONS

• Dimensions: 8.5 W x 5.4 D x 2.9 H
• Weight: 6.0lbs (2.7kg)

IN THE BOX

• Rialto 600, RT-1 Remote, Power Cord, Optical TOSLINK Cable, User Manual, Warranty

• Compact Amplifier and Digital-Analog-Converter (DAC)
• Audiophile-grade Wolfson Digital-Analog-Converter (DAC)
• 2 x 100 watts into 8 Ohms, 200 watts into 4 Ohms
• 400 watts Mono-bridgeable
• Stable Down to 3.6 Ohms
• Preamp Volume Control Via Direct and Remote IR and RS-232
• Source Switching Via Direct or Remote IR and RS-232
• Includes Remote Control
• 2 x TOSLINK & 2 x Coaxial Digital Inputs with Analog Stereo Inputs
• Subwoofer Mono-summed Output
• AudioControl Patented AccuBASS ™ Bass Response
• Built-in, Selectable Electronic Crossover Points
• 12v Trigger Input
• 3.5 mm Headphone Output
• 5-way Binding Posts
• Compact Size at 8.5 W x 5.4 D x 2.9 H

• Cutsheet
• Manual
