AudioControl Director M4840

8-Channel DSP Matrix Amplifier

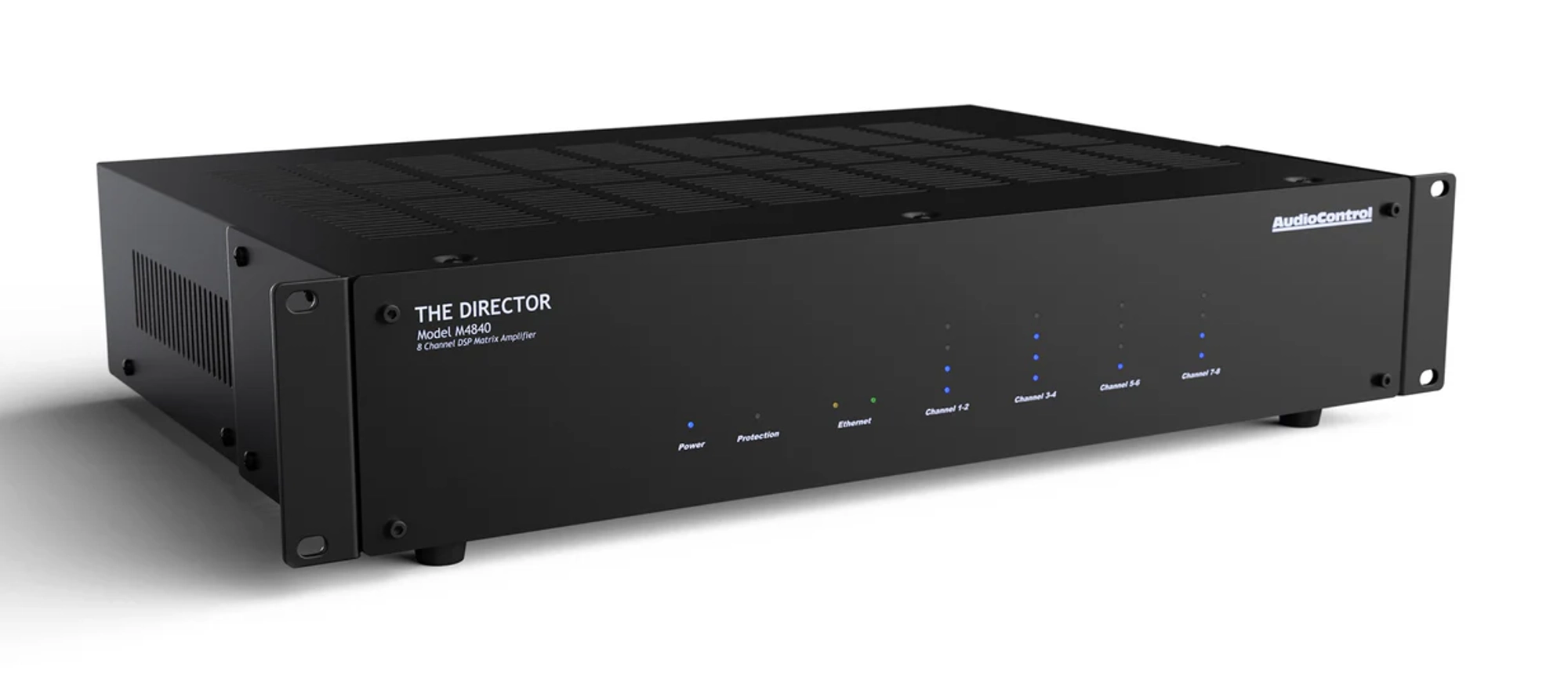

Director M4840

The Director® Model M4840 is unique in the matrix amplifier world. Four digital inputs, each featuring Coaxial and TOSLINK signal presence detection Coaxial and TOSLINK digital connectors and paired with identical loop outputs are joined

by four stereo analog inputs with loop outputs.

Combined with eight high-powered, DSP-processed channels, the Director® Model M4840 amplified audio matrix is remarkably shallow in depth, at a mere 11.75, yet still delivers 100 impressive watts per channel into 8 ohms and a stable 200 watts into 4 ohms. Channel volume, loudspeaker equalization and delay times, crossover points, and built-in speaker profiles are all controllable via network commands.

• 8 channels, up to 4 Zones
• 100 W into 8 Ohms, 200 W into 4 Ohms
• Control System Integration
• Built-in Matrix Delivers Analog or Digital audio to any zone

SKU: ACP-DMZ-M4840

INPUTS

• Inputs: 4 Stereo Analog Local Inputs, 4 Coaxial/TOSLINK Inputs
• Input Sensitivity: 1 Vrms for full output, level at maximum
• Input Gain: 30 dB

CONTROL

• Remote Power Trigger: +12 VDC or Dry Contact Closure
• Network Connection/Protocol: 10Base-T Ethernet TCP/IP
• Communication Protocol: HTTP or Telnet

OUTPUTS

• Amplifier Channels: 8
• Power Output (8 Ω): 100 W per channel
• Power Output (4 Ω): 200 W per channel
• Power Output (8 Ω Bridged Mono): 400 W
• Minimum Speaker Load: 4 Ω
• Preamp Audio Outputs: 4 Stereo Loop Outputs, 4 Coaxial2 Coaxial Digital S/PDIF BUS Outputs

WEIGHT & DIMENSIONS

• Dimensions: 17 W x 15.5 D x 3.5 H (2 U)
• Weight: 16.5 lbs. (9.5 kg)

PERFORMANCE

• Crosstalk: > 80 dB @ 1 kHz
• Damping Factor: >300
• Signal to Noise: >95 dB, A-wtd, ref full output
• Crosstalk: >80 dB @ 1 kHz
• DAC Specifications: 32 to 96 kHz sample rate, 16-/24-bit depth

IN THE BOX

• The Director Model M4840, Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty

• Network DSP Signal Matrix Amplifier With Volume Control
• 8 Channels x 100 Watts at 8 Ohms (All Channels Driven)
• 8 Channels x 200 Watts at 4 Ohms (All Channels Driven)
• Bridgeable to 400 Watts of Bridged Power
• Digital Signal Processing (DSP) Performance
• Built-In Speaker Optimization Profiles
• Ethernet Port for Status Monitoring, Source Switching, and 12 Volt Trigger Control
• Built-in Matrix Routes Analog or Digital Inputs to Any Zone or Digital Bus Output
• Network Programmable Graphic & Parametric Equalization with User Memories
• Assignable Names for All Zones & Amplifier
• Digital Signal Sense
• Programmable Electronic Crossover for Local Subwoofer Applications; Subsonic Filter
• AudioControl LightDrive™ Anti-Clipping Speaker Protection
• Digital and Analog Inputs with Digital and Analog Pass Thru / Loop Outputs
• Dual Digital Audio Bus Outputs
• Shallow-Mount 2 U Rack Space only 11.75 deep (Includes Rack Mount Brackets)
• Home and Commercial Installations
