AudioControl Bijou 5100D
SKU: AUD-ACP-BIJOU-5100
MPN: ACP-BIJOU-5100D
Description
5.1-Channel Compact Integrated Amplifier with Dante 8ohm 5x 85w HDMI eARC 1.7" Height
Send to a friend!
SKU: AUD-ACP-BIJOU-5100
MPN: ACP-BIJOU-5100D
5.1-Channel Compact Integrated Amplifier with Dante 8ohm 5x 85w HDMI eARC 1.7" Height
Send to a friend!

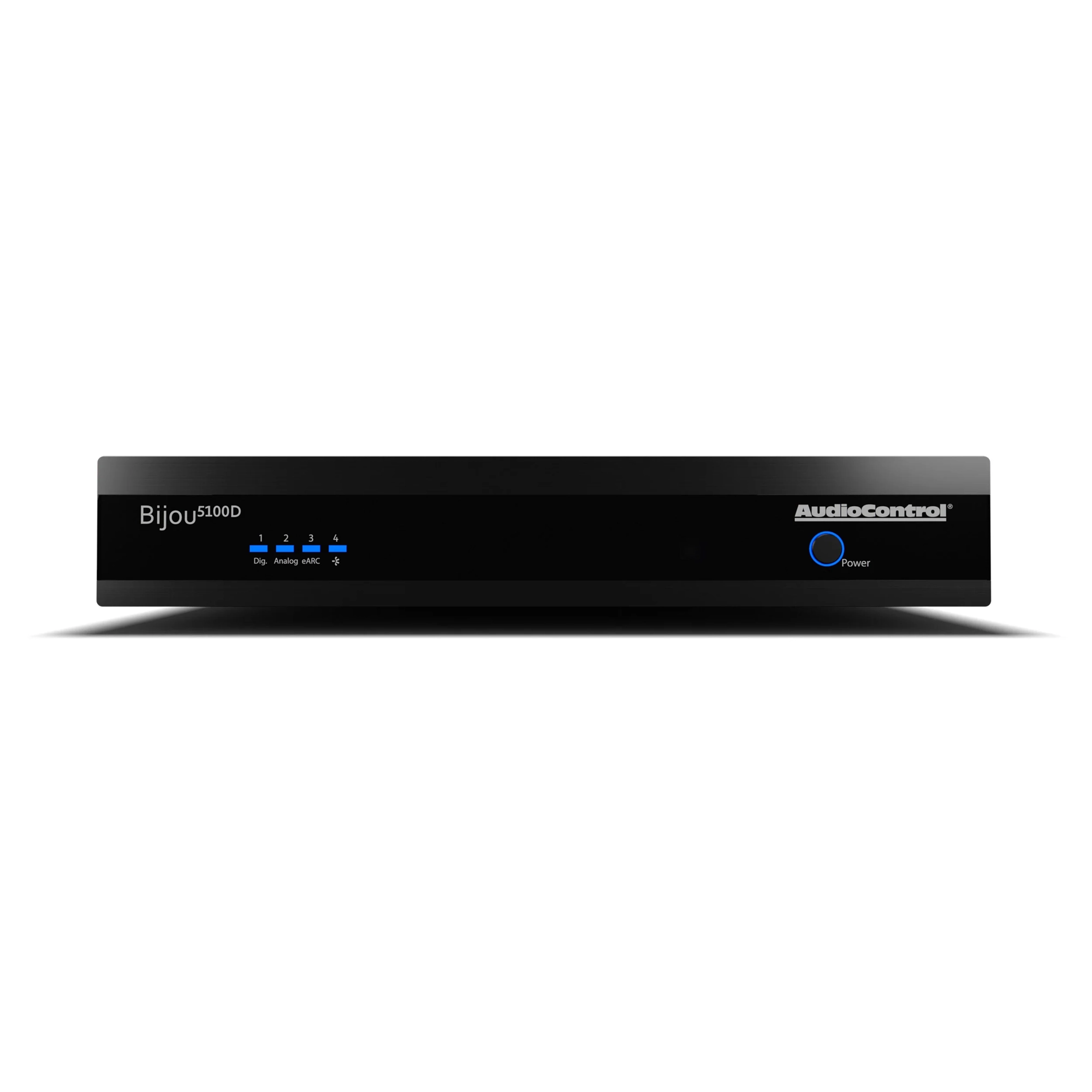

Bijou 5100D
The Bijou 5100D leads the Bijou Series range and features Dante audio support as its cherry on top. Five GaN semiconductor channels turbocharge the 5100D into a mini home theater powerhouse. All Bijou Series models decode Dolby Atmos and DTS 5.1 surround modes through the HDMI eARC input, with the 5100D having onboard power for surround channels. Dante audio creates a fourth input, fetching any audio source from a Dante network, providing the Bijou 5100D with uncompressed, near-zero latency multi-room capabilities. Unlike traditional AVRs, the Bijou 5100D can be discretely installed behind large flat-panel displays.
The Bijou 5100D is comfortable as a light-duty, powered five-channel home theater surround controller in a local, stand-alone four-source system comprising, for example, an eARC-capable video display, an analog onboard phono preamp-equipped turntable, a digital source such as a streaming music player, and streamed sources available from a connected Dante network. Digital conversion is accomplished by a high-quality internal 384 kHz/ 32-bit DAC with a 106 dB signal-to-noise ratio and a remarkable Total Harmonic Distortion + Noise (THD+N) rating of 0.0025%. Add main and surround loudspeakers, a center channel, and a powered subwoofer connected to the line-level Sub Out for an easy-to-operate, ultra-dynamic music or powerful home theater audio playback system. The RCA single-ended outputs are GUI-configurable and can be assigned to playback downmixed eARC audio while the powered outputs continue reproducing the original surround format. This is perfect for private listening through a wireless headphone interface, a Bluetooth adapter, or even multizone house-wide distribution. The eARC stereo downmix can also be simultaneously encoded and assigned as a Dante output for transmission to any Dante decoder on the network.
Combining advanced features like GaN semiconductor technology for energy efficiency and precise audio fidelity, the 5100Ds 65-watt output per channel (doubling to 130 watts into 4 ohms) and innovative design ensure high-quality performance. The amplifiers superior GaN-based design offers unmatched linearity and fidelity, distinguishing it from traditional Class-D silicon MOSFET amplifiers.
SKU: ACP-BIJOU-5100D
INPUTS
OUTPUTS
AUDIO
POWER
Input Voltage 110 - 240 VAC
POWER CONSUMPTION
BTU/hr
DIMENSIONS
5, 8
51-100
AudioControl
Next-generation GaN Semiconductor Amplification Technology
Bijou 5100Ds Class-D GaN amplification runs cool to the touch, enabling installation otherwise limited by traditional amplifier designs. GaN-based amplifier topologies achieve power conversion efficiencies in the 95% to 99% range, allowing higher output power in a more compact chassis size.
HDMI eARC Input
Video soundtracks from connected devices or internal streaming services feature immersive codecs like Dolby Atmos, or DTS surround audio. A unique eARC implementation for the Bijou Series enables GUI-assignable downmixing at the RCA outputs, enabling wireless headphone interfaces or Bluetooth adapters to provide private playback options. At the same time, original surround decoding continues at the powered speaker and subwoofer outputs. The 5100D can also be configured to encode the audio downmix into Dante for availability to all decoding devices on the same Dante Network.
Dante Audio Networking
Dante audio support enables input/output interfacing with Dante-enabled devices such as AudioControl Director M Series Models M6800D, M4800D, and CM series 70-Volt Amplifiers. These devices share uncompressed audio sources up to 328 ft (100 m) away with near-zero latency.
Web Configurable and IP-, IR-Controllable
AudioControl provides a programmer-friendly API to easily integrate the Bijou 5100D into any popular automation ecosystem. Setup configuration is intuitive and fast via the web interface. An included remote enables stand-alone IR control.
