Atlas IED TSD-PA20VG

20W Mono 4Ω/25V/70.7V/100V Power Amplifier

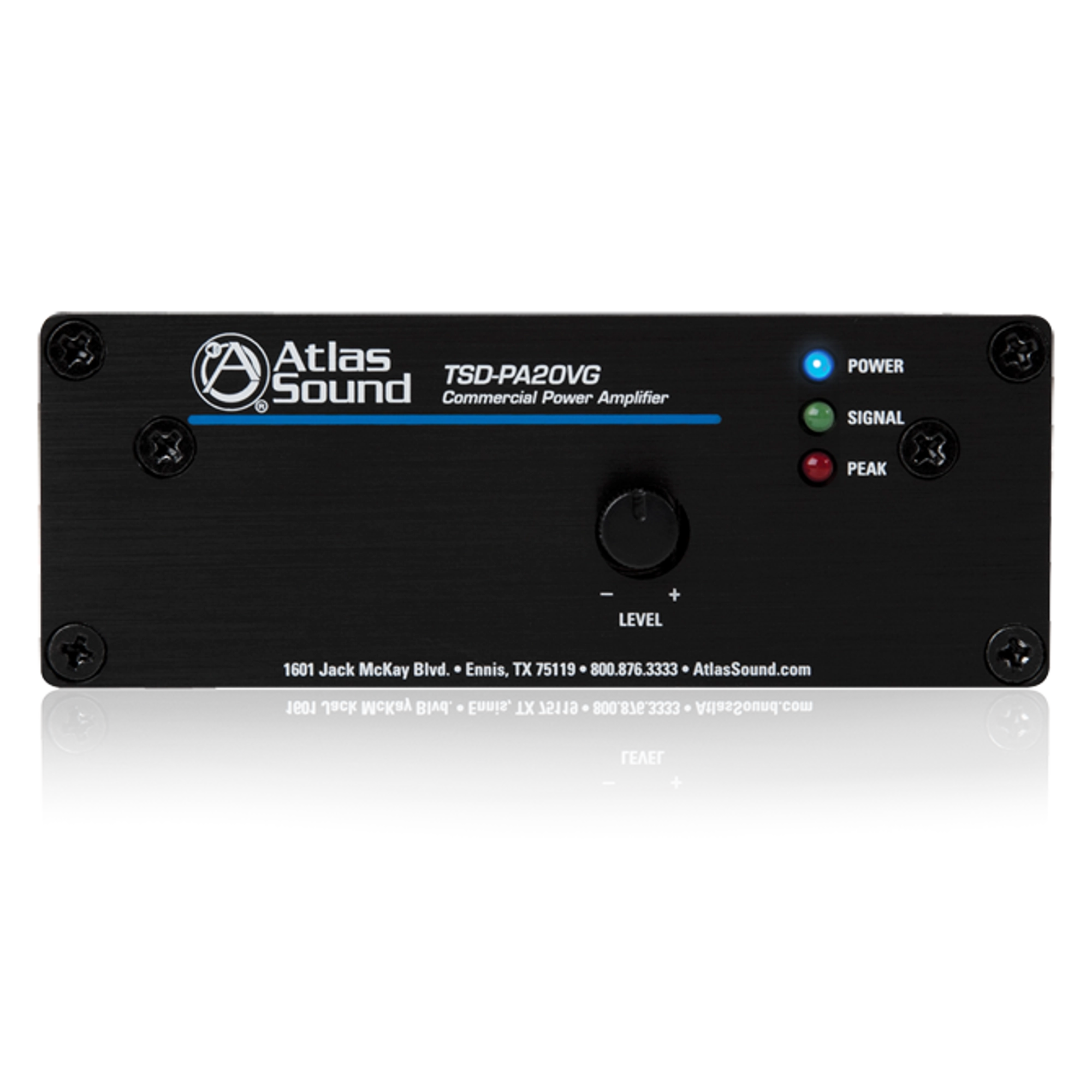

TSD-PA20VG

The TSD-PA20VG is a cost effective mono amplifier for 4Ω and distributed constant voltage speaker systems. Applications include hallways and classrooms. The TSD-PA20VG is also a cost effective alternative for small projector systems as it can be used with as many as (16) 25/70/100V ceiling speakers (tapped at 1W each), plus the extremely small footprint allows for easy mounting.

For sound masking applications the TSDPA20VG has the capacity to drive up to 34 masking speakers tapped at .5W each on a 70.7V line. Output is gain controlled from a potentiometer on the front panel with removable knob.

Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. You must use the TSD24V2500MA power supply.

• Frequency Response 40Hz - 20kHz
• Power Output 20W @ 4Ω, 10W @ 8Ω, 20W @ 25V/70V/100V Loads
• Line Input Level 500mV (-6dBV) Balanced
• Power Requirement 490mA
• Idle Current 50mA
• Height 1.5" (3.81 cm)
• Width 4" (10.16 cm)
• Depth 5.2" (13.2 cm)
• Voltage Compatibility 24V
• Warranty Period 36 months from date of purchase

• 4Ω/25V/70.7V/100V Output
• One (1) Balanced Input
• Removable Level Control with Set-It-And-Forget-It Security Cover
• Input Signal and Peak Indicator LEDs
• Cable Management System
• Removable Phoenix Style I/O Connectors
• Energy Efficient
• Compact Chassis Design
• Power Supply Sold Separately

• Cutsheet
