Atlas IED T20

High Power Line Transformer for Compression Drivers 30 W, (25/70.7V)

T20

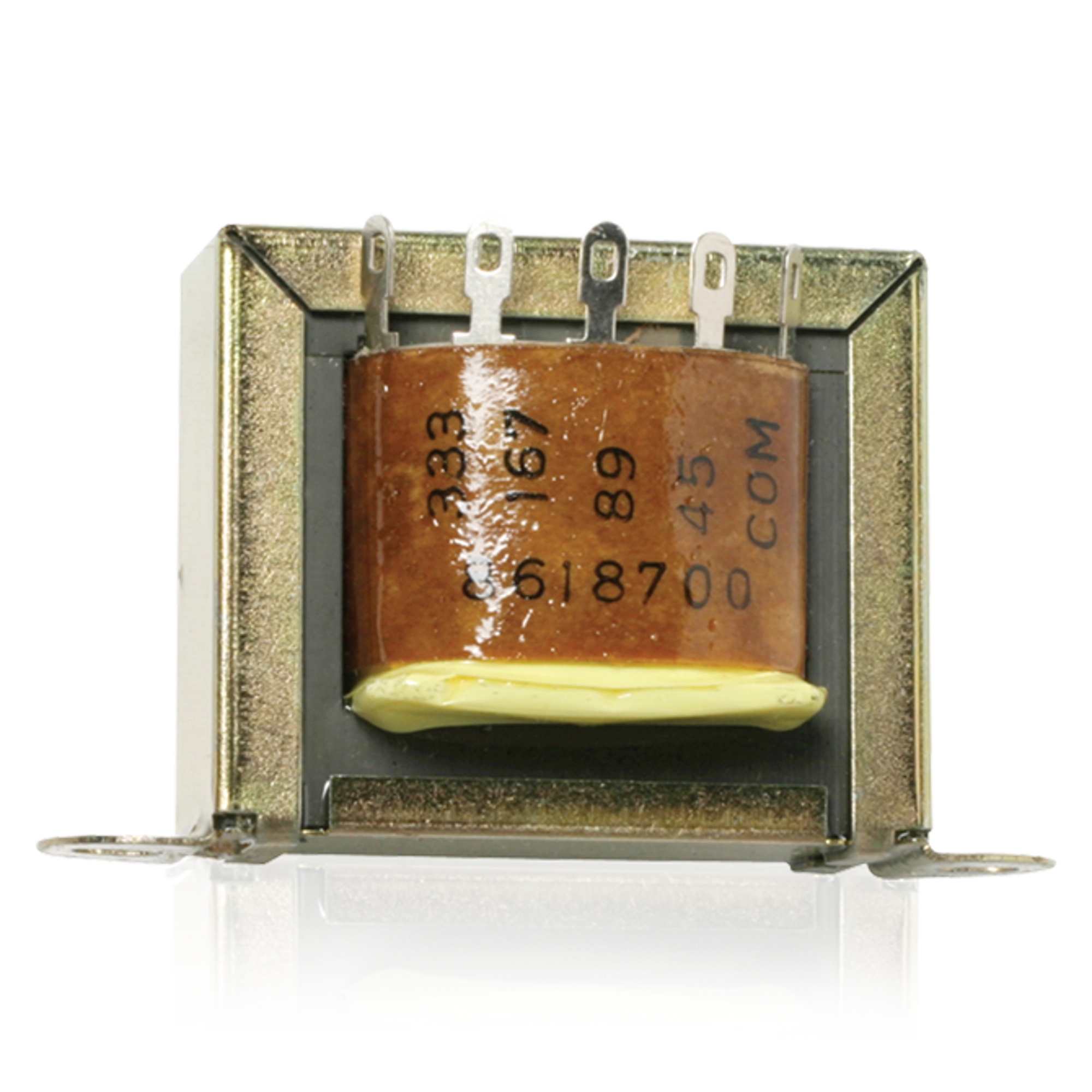

30W line matching transformer for 25/70.7V speaker lines. This product features primary taps of 1.8, 3.7, 7.5, 15 and 30W for 70V lines and 1.89, 3.7, 7, and 15W for 25V lines. The T-20 features an 8 ohm secondary and frequency response of 60Hz - 20kHz.

.

• Height 1 5/8" (4.1275 cm)
• Width 1 15/16" (4.92252 cm)
• Depth 3/4" (1.905 cm)
• Shipping Weight 2.50 lbs (1.13 kgs)
• Warranty Period 60 months from date of purchase

• 1.89, 3.7, 7.5 15 and 30 Watt Taps @ 70.7V , 8 Ohm Secondary
• 30 Watt 70.7V Line Transformer
• Perfect for Use with Compression Driver Horns in High Noise Environments

• Cutsheet
