Atlas IED T18

High-Quality Transformer 60W 70.7V

T18

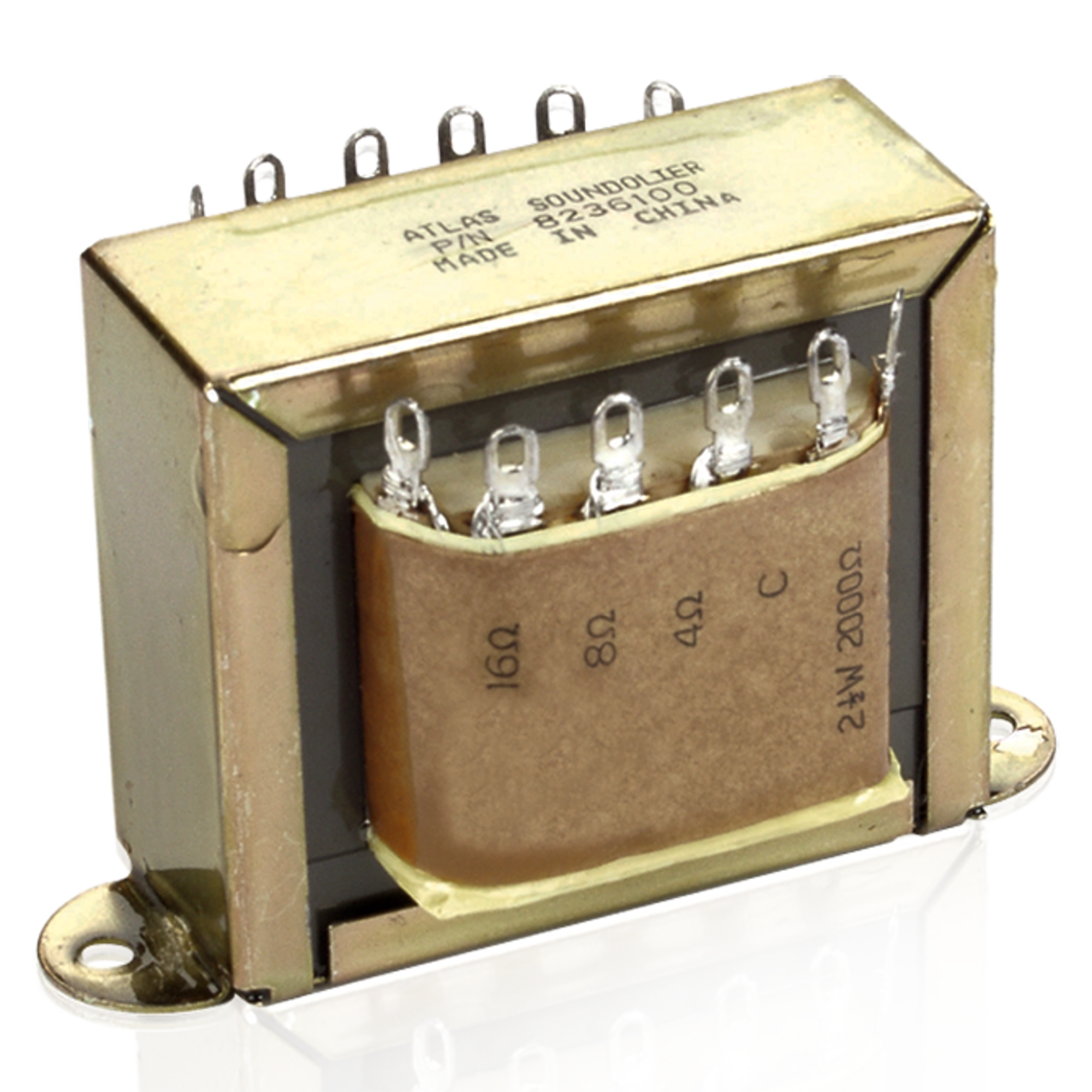

AtlasIED ModelT-18 is a line matching U-frame, varnish-impregnated transformer. High efficiency unit reduces line loss when long transmission cables interconnect amplifier and speakers and when two or more speakers are connected to a common amplifier source.

Unit features element-resistant components and clearly identified terminals for solder connection.

• Frequency Response 60Hz - 20kHz
• Height 2 1/4" (5.7 cm)
• Width 2 11/16" (6.8 cm)
• Depth 1" (2.5 cm)
• Shipping Weight 1.50 lbs (0.68 kgs)
• Warranty Period 60 months from date of purchase

• 2.5, 5, 10, 20, 40 and 60 Watt Taps, 4,8 and 16 Ohm Secondary
• 60 Watt 70.7V Line Transformer
• High Power Rating is Perfect for Use with Compression Driver Horns in High Noise Environments

• Cutsheet
