Atlas IED PM8SUB-B

8" Pendent Mount Subwoofer with 60-Watt 70.7V Transformer

PM8SUB-B

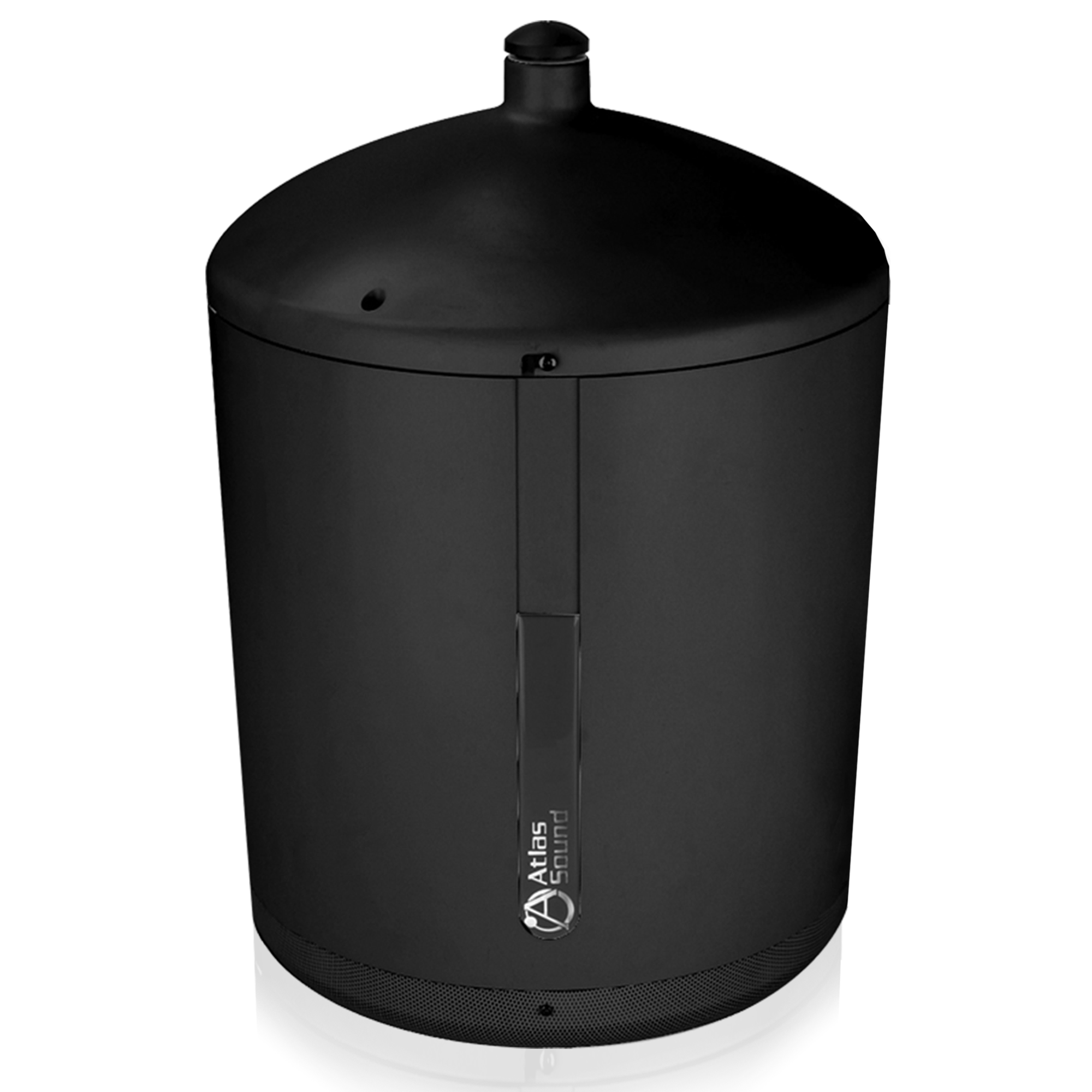

The AtlasIED PM8SUB-B matches the sonic quality of the high performance 8 Strategy II Series FAP8SUB driver. This speaker is the same device used in AtlasIEDs successful model FAP8SUB in-ceiling subwoofer package. Mounted down-firing in an attractive enclosure, the PM8SUB provides natural sounding, wide coverage for low height installations while delivering excellent low frequency response for both music applications.

Attaching a PM8SUB to most over head surfaces is a breeze. For open beam ceilings a 3 meter cable kit is included with a self gripping ferrule system. If down pipe installation from hard ceiling material is required, any 3/4" ceiling fan installation kit may be utilized. These kits are readily available under the FANTEC^TM brand from home improvement stores with various down pipe length options to provide installation ease regardless of ceiling angle (Up to 45°).

• Frequency Response 46Hz - 160Hz
• Sensitivity 92dB Average
• Speaker Type Subwoofer
• Impedance 7.5, 15, 30, 60W & 8Ω
• 8Ω RMS Power 150 Watts
• Dispersion Omni
• Crossover Three Pole Design 18dB / octave @ 120Hz
• Enclosure Volume 1075 cu in
• Height 16 5/8" (42.2148 cm)
• Diameter 12 1/4" (31.115 cm)
• Shipping Weight 21.00 lbs (9.53 kgs)
• Warranty Period 60 months from date of purchase

• Integrated 70.7V Transformer with Power Taps at 7.5, 15, 30, & 60 Watts with 8Ω Bypass
• 3 Meters of 2mm Cable & Mounting Hardware Included
• Compatible with Standard 3/4" Ceiling Fan Hardware
• Ideal Low Frequency Driver for High Ceiling Applications
