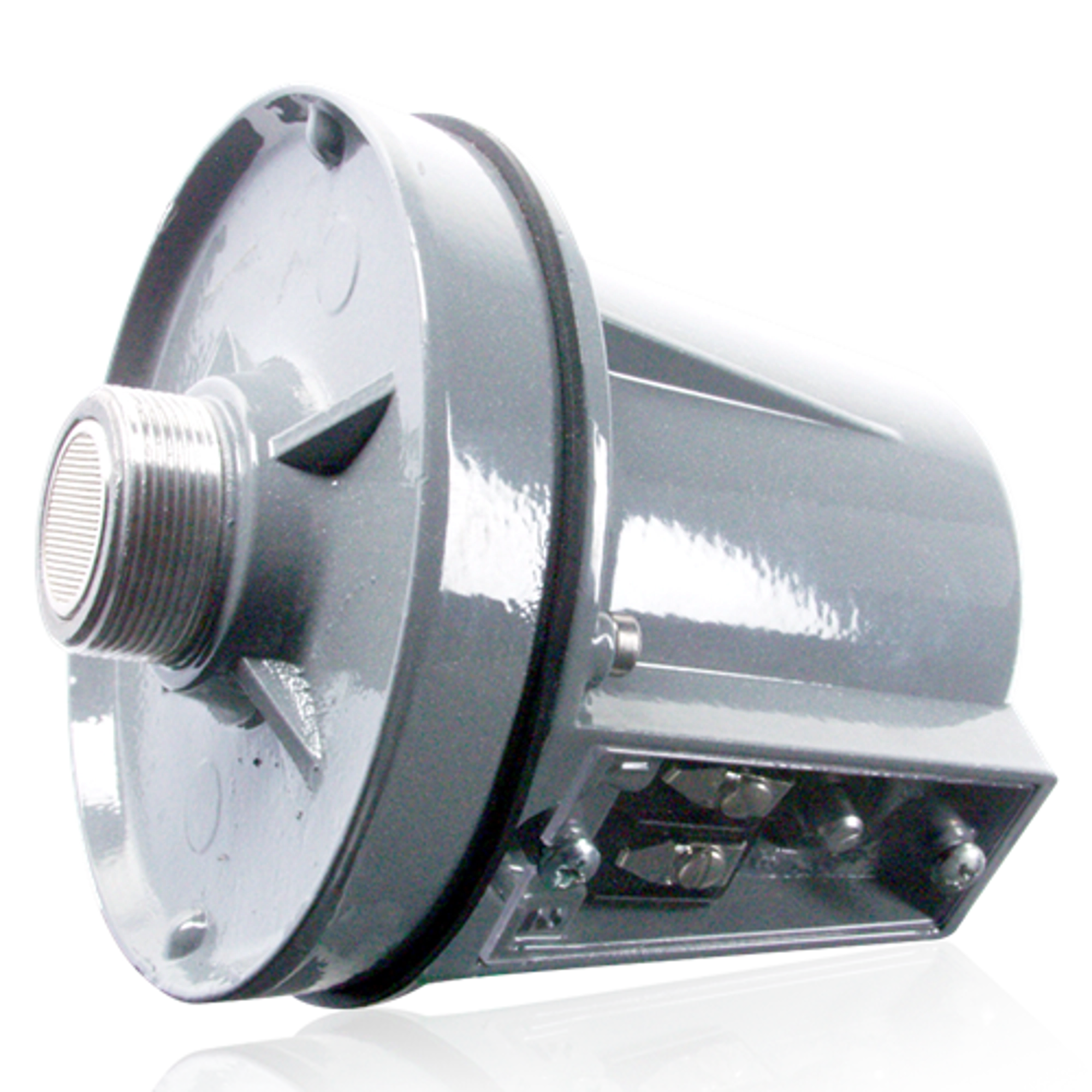

Atlas IED PD-30

30-Watt 8Ω Compression Driver for Large Format Horn Speakers

PD-30

Model PD-30 is fully environment-resistant for indoor or outdoor application and recommended for use in expansive and/or high-ambient sound-level areas. Unit has a power rating of 30 watts, a 1.5" voice coil and a plane wave frequency response of 300Hz - 3.9kHz.

Model PD-30 has a nominal impedance of 8 ohms.

Model PD-30 is terminated in standard 1 3/8"-18" thread male couplings for use with screw-on horns, or with AtlasIED Model DA-FH adapter for bolt-on type horns.

• Frequency Response 300Hz - 3.9kHz
• Sensitivity 113.6 (avg) 300 - 3,900Hz
• Power Rating 30W
• Depth 4 1/2" (11.43 cm)
• Shipping Weight 4.00 lbs (1.81 kgs)
• Warranty Period 60 months from date of purchase

• 30-Watt Power Rating
• Environment-Resistant Construction for Indoor/Outdoor Use
• Extended Frequency Response Range for Optimum Intelligibility
• Outstanding Sound Reproduction and Power-Handling For Signaling, Music and Public Address Systems

• Cutsheet
