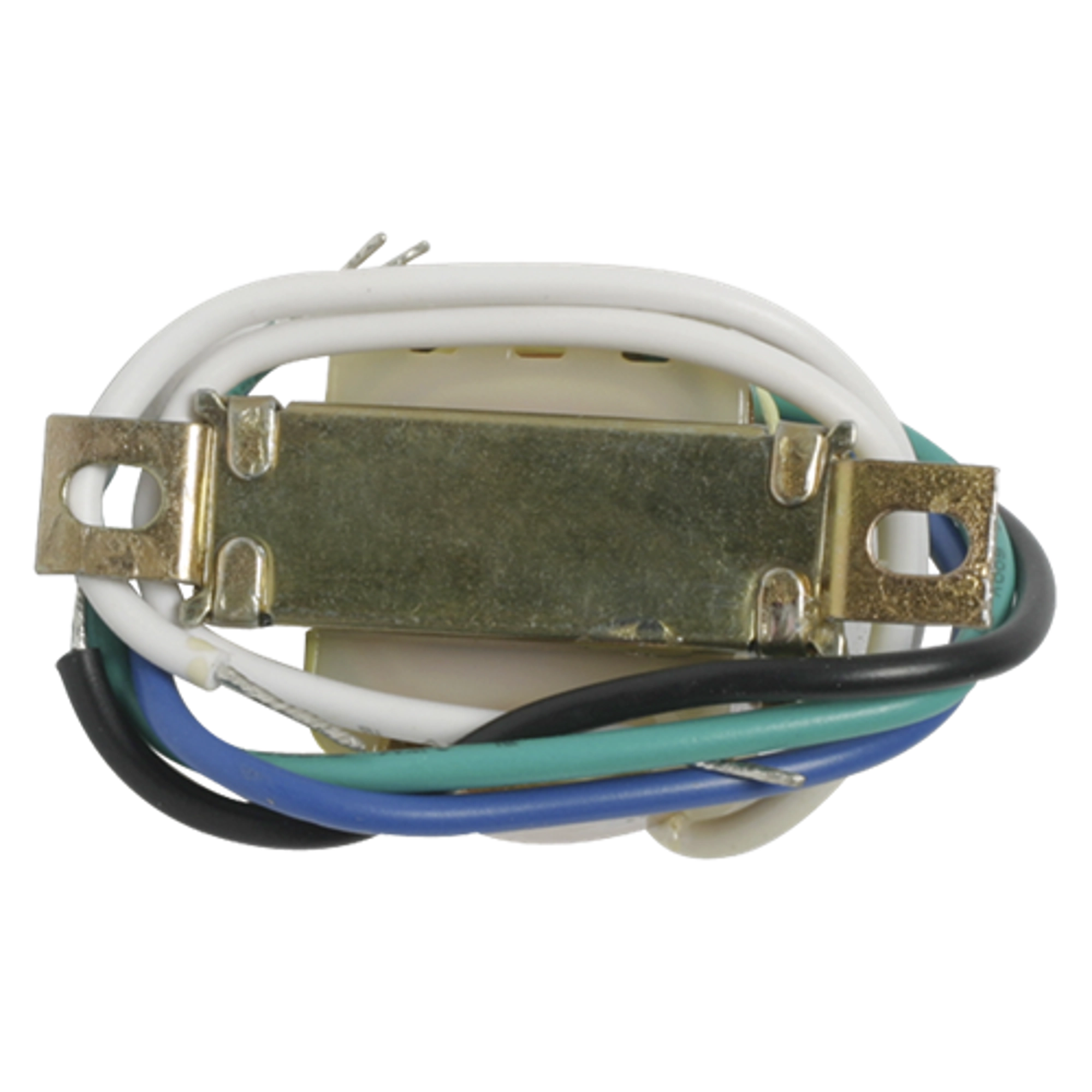

Atlas IED HX33-4525

Intercom Transformer 45 Ohm .5-1W

HX33-4525

HX-33-4525, specifically designed for use with intercom applications when connecting a 45 ohm speaker to a constant voltage system. The small size of these transformers makes them ideal for use in compact spaces. The insertion loss will not exceed 1.5dB and the frequency response is +2dB from 150Hz - 9kHz. The primary taps are .5 and 1 watt. Secondary impedance is 45 ohms.

• Height 1 3/16" (3.02 cm)
• Width 1 7/16" (3.65 cm)
• Depth 1/2" (1.19 cm)
• Shipping Weight 0.28 lbs (0.13 kgs)
• Warranty Period 60 months from date of purchase

• 25V Line Matching Transformer
• 0.5 & 1 W Taps
• Intercom & General PA
