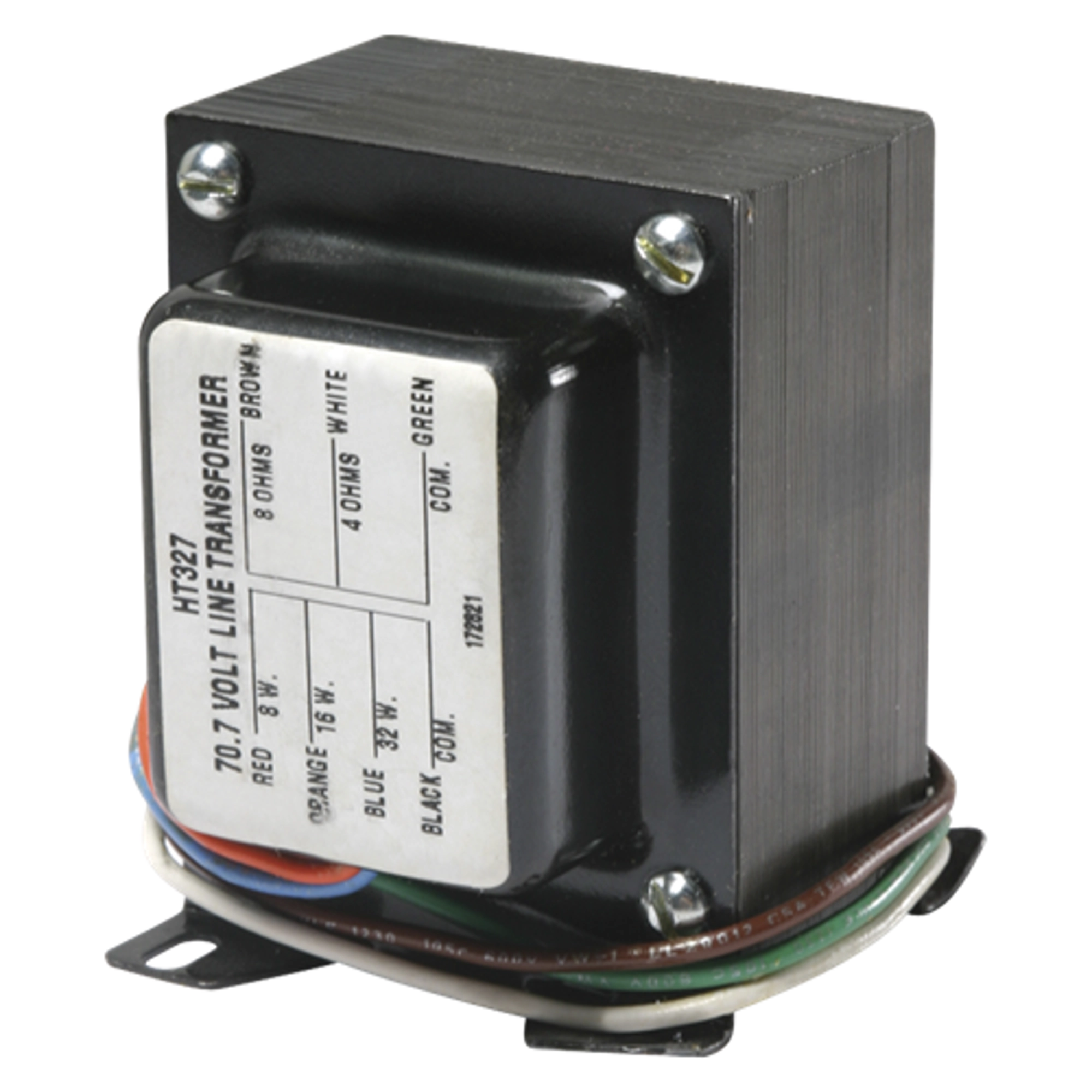

Atlas IED HT327

High-Quality Transformer 32W (70.7V)

HT327

The HT327 features high power handling with minimal insertion loss and wide frequency response to provide quality line matching of speakers in high power systems.

Unit is constructed of audio grade laminations and offers primary taps at 8, 16 and 32 watts with secondary impedance of 4 and 8 ohms.

Insertion loss does not exceed 0.6dB and the unit operates within a frequency range of

+1dB from 30Hz - 15kHz.

The transformer is designed for external mounting to surfaces other than the speaker.

• Frequency Response 30Hz - 15KHz
• Power Taps 8, 16 & 32
• Power Rating 32W
• Primary Voltage 70.7
• Height 3 1/4" (8.255 cm)
• Width 2 1/2" (6.35 cm)
• Shipping Weight 3.50 lbs (1.59 kgs)
• Warranty Period 60 months from date of purchase

• Constructed with Audio Grade Laminations
• Frequency Response is 30Hz - 15KHz
• High Power Handling Unit
• High Quality Matching Transformer with Only 0.6dB Insertion Loss
• Primary Taps of 8, 16, & 32 Watts
• Secondary Outputs Offer Both 4 & 8 ohm Impedance
