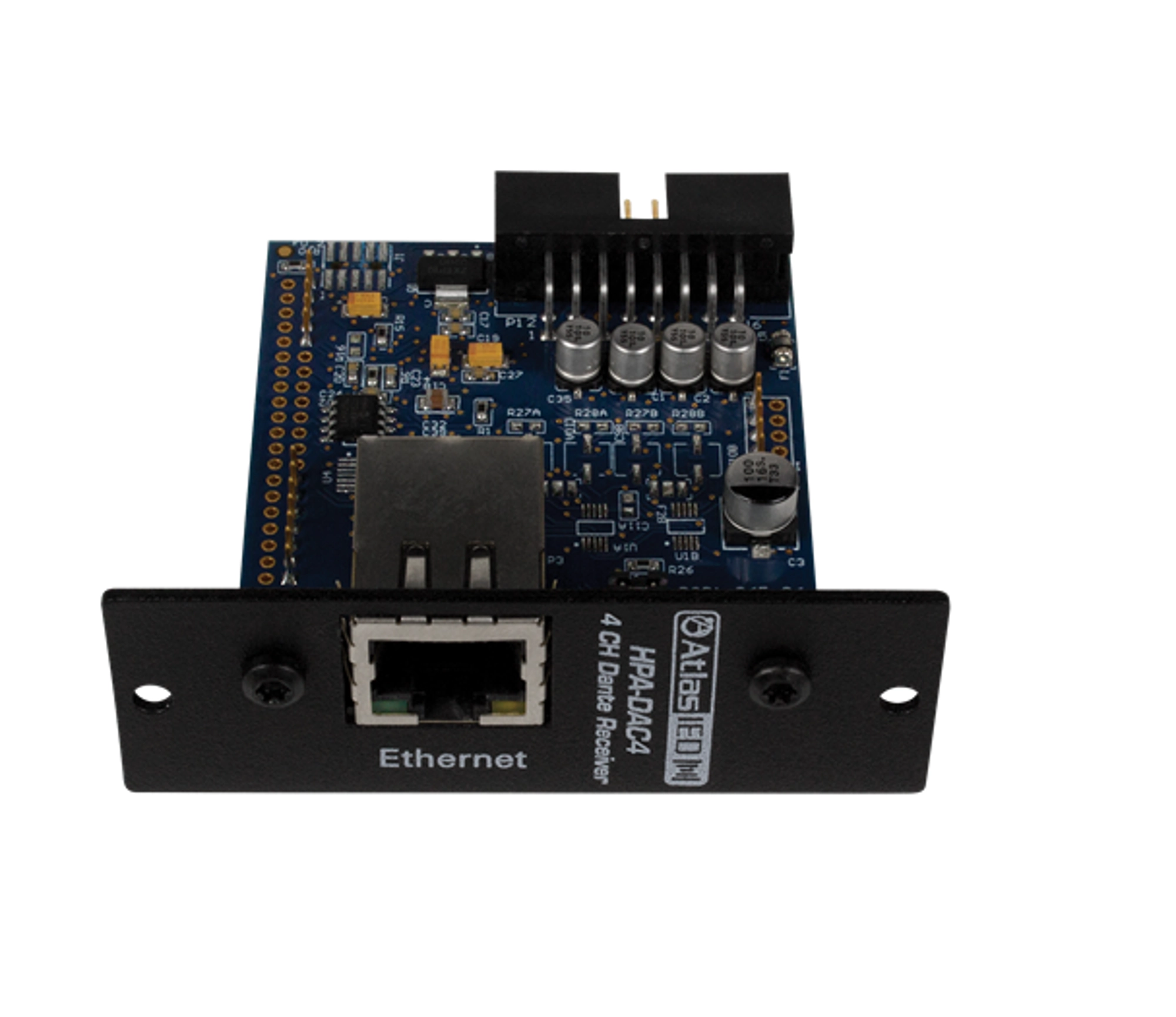

Atlas IED HPA-DAC4

Four-Input Dante^® Accessory Card for HPA Amplifiers

HPA-DAC4

The HPA-DAC4 accessory card is designed to work in conjunction with HPA Series 4-channel amplifiers. The HPA-DAC4 is a 4-input Dante receiver that features digital audio transportation over standard IP networks. The HPA Series 4-channel amplifiers come standard with four balanced line inputs and an accessory card slot to add an additional 4-inputs, giving the amplifier a total of 8-inputs.

Analog Input 1 and Dante Input 1 are isolated from each other and are electronically summed together forming a mixed output. Both Input levels to the amplifier channel are controlled by the Ch-1 level control. Channel 2, 3, and 4 inputs are configured the same as Channel 1.

• Connector Type RJ-45
• Gain Controls 0dBFS = 20dBu & 0dBFS = 10dBu PCB shunt selectable
• Frequency Response 20Hz - 20KHz +/- 1dB
• THD .06% @ 1kHz
• Maximum Output Level 7dBu
• Height 0.97" (2.46cm)
• Width 2.7" (6.8cm)
• Depth 2.5" (6.3cm)
• Weight 2.6oz (0.07kg)
• Warranty Period 12 months from date of purchase

• Dante® Network Audio Enabled
• 4-Channel Receiver
• Integrates with 4-Channel HPA Series Amplifiers
