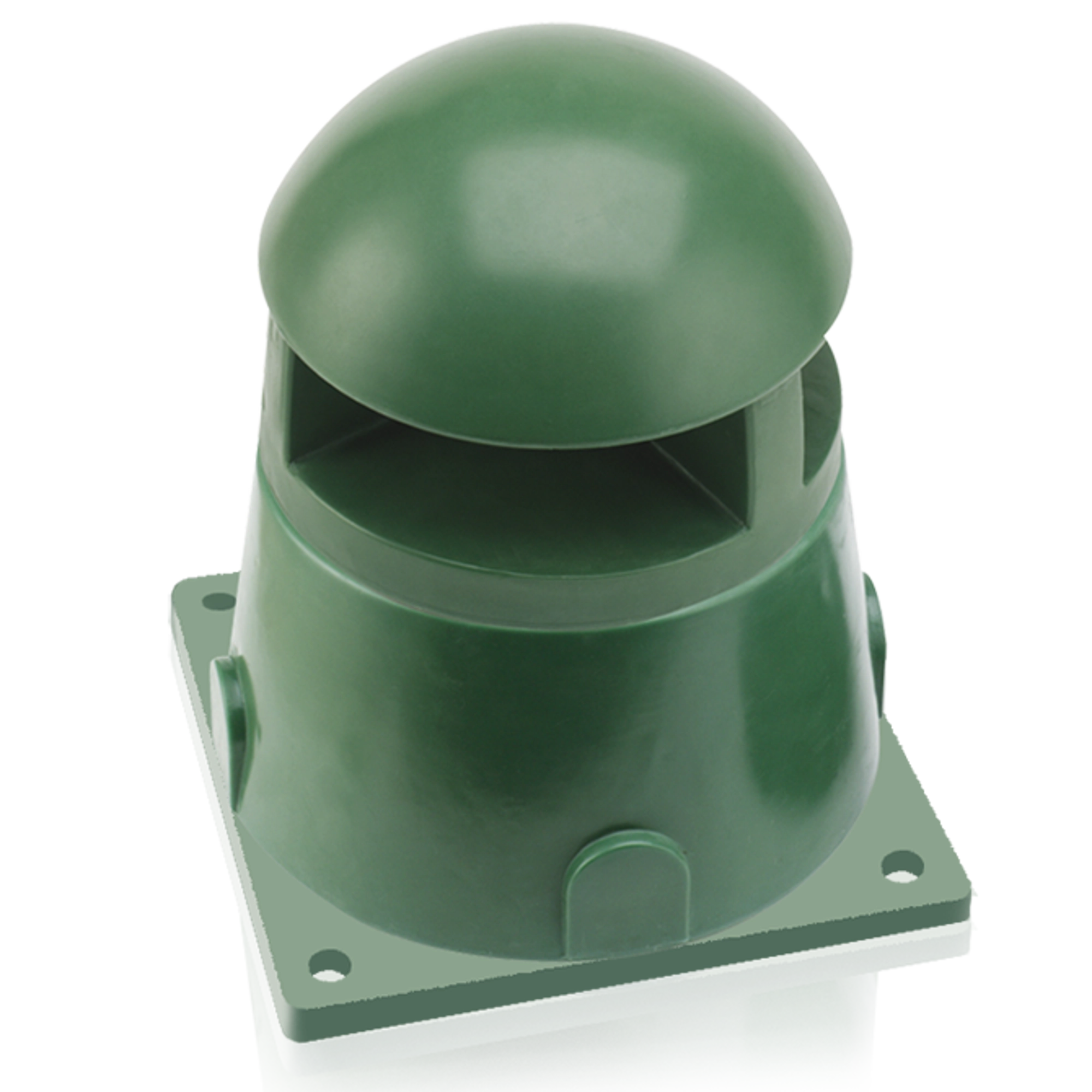

Atlas IED GST-G

All Weather Outdoor Landscape Speaker with Tall Base and 32W 70V Transformer

GST-G

The AtlasIED GST-G garden speaker, designed for theme parks, hotels, or any architecturally landscaped area, simplify installation and deliver deep, rich sound. The speaker is a coaxial 8", polypropylene/kevlar cone with rubber surround, 1.5" voice coil, 21 oz. magnet and a 1/2" mylar dome tweeter.

The AtlasIED GST-G is designed to blend into any environment. This model includes a deep base for in-landscape burial. The two-piece design allows for a two-phase installation. In phase one, the base is installed. Phase two, after initial construction is done, the system contractor can return to install the speaker/transformer.

This multiple step process protects the speakers from being damaged during the construction/landscaping process and also eliminates the potential for theft from the construction site.

The GST-G Garden Speaker base even has a protective cover to keep debris out during construction. Inside the enclosure is a durable 8" coaxial speaker with a great sounding 360-degree horizontal dispersion pattern.

The enclosure is made of stable polyethylene, which ensures performance in even the most temperamental and unpredictable climates.

Each component can also be ordered separatly:

     GSH-G Head Unit

     GSBT-G Tall Base

     GSBS-G Short Base

• Frequency Response 43Hz - 20kHz
• Sensitivity 89.5dB 1W/1m (Half Space Ref)
• Power Taps 8, 16 & 32 with 8Ω Bypass
• Speaker Type Inground
• Dispersion 360°H x 50°V
• Warranty Period 60 months from date of purchase

• Available in a Green Finish
• Convenient, Externally Adjustable 8, 16, and 32 Watt Taps in 70.7V Configuration with 8Ω Bypass Mode
• Deep Base for Landscape Installations
• Revolutionary two-piece design allows for two-phase installation

• Cutsheet
