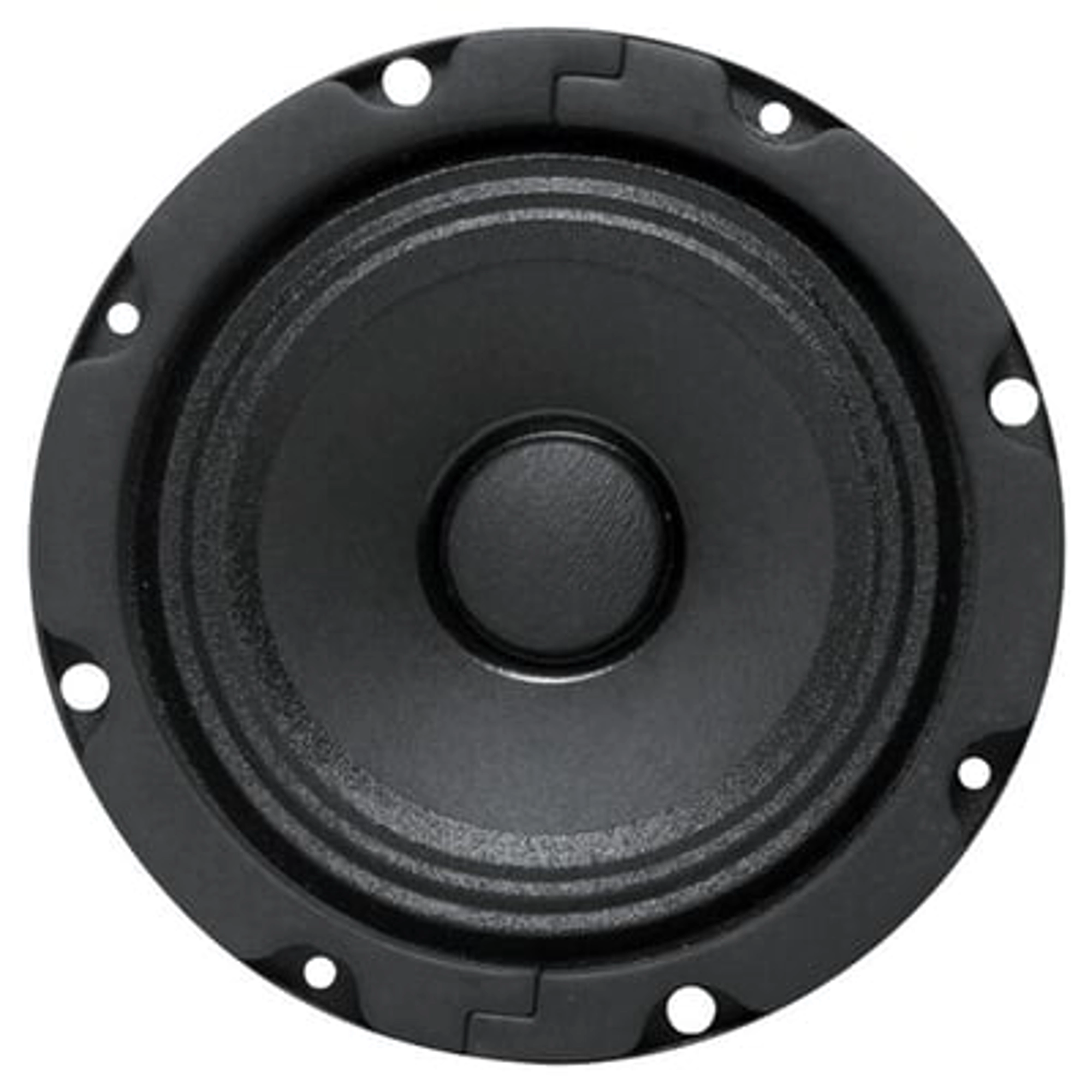

Atlas IED FC104T

4" In-Ceiling Speaker with 8-Watt 70V Transformer

FC104T

This compact, full-range, 4" (127mm) speaker is equipped with a damped, high-compliance cone which provides excellent low frequency reproduction and smooth extended response.

Model FC104T also offers a wide dispersion angle which reduces the number of speakers necessary to achieve total coverage in low-level distribution systems.

This new model features an all new transformer that provides tap setting from .5w to 8w providing easy system balancing.

• Speaker Type High Compliance
• Sensitivity 94dB (at 1W/1m)
• Frequency Response 150Hz - 17kHz
• Power Taps .5, 1, 2, 4, & 8W
• Dispersion 135º (-6dB, 2kHz Octave Band)
• Depth 4" (10.16 cm)
• Shipping Weight 22.00 lbs (9.98 kgs)
• Safety Listed 1480
• Warranty Period 60 months from date of purchase

• Efficient Wide-Range Frequency Response
• Ideal for Public Address and Background Music Installations
• Industry Standard, 10-Watt, 4" High-Compliance Loudspeaker
• Mounts a Large Selection of Atlas Sound 4" Grilles
• Offers Proven Performance with Wide-Angle Sound Dispersion
• Versatile 8W, 70.7 V Transformer with .5 to 8W Taps
• UL Certified, Safety Listed to UL1480

• Cutsheet
