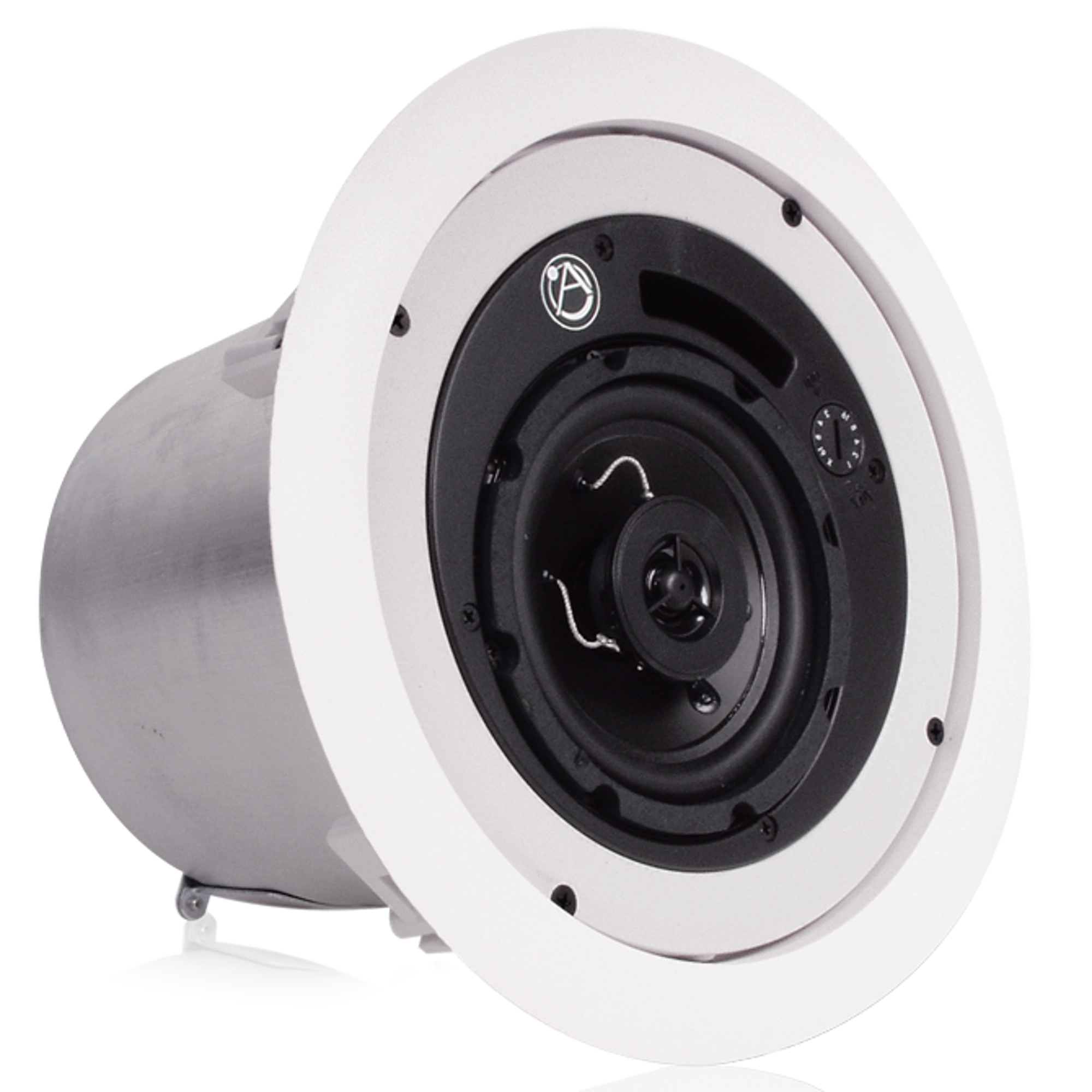

Atlas IED FAP42T

4" Coaxial In-Ceiling Speaker with 16-Watt 70/100V Transformer and Ported Enclosure

FAP42T

Sold as a pair. Add quantity 1 to your cart to purchase a pair of these speakers.

FAP42T combines superior coaxial speaker performance with wide dispersion and easy installation.

A low profile enclosure and wide coverage make the FAP42T a perfect choice for low ceilings. The FAP42T will satisfy the needs of owners, architects, contractors, and consultants by delivering true, high fidelity sound reproduction in an attractive and easy-to-install system.

The FAP42T is ideal for high-intelligibility voice, music, and signal reproduction in commercial, industrial, and institutional applications.

• Speaker Type Coaxial
• Sensitivity 88dB Average
• Power Taps 1, 2, 4, 8, 16 Watts & 8Ω
• Frequency Response 75Hz - 20kHz
• Dispersion 130
• Diameter 10 1/2" (26.67 cm)
• Certified to Safety Listing UL 1480
• Warranty Period 60 months from date of purchase

• 4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and is Convenient for Daisy Chaining Additional Strategy Full Range Speakers or Subwoofers
• Easy Installation in Drop Tile or Sheetrock Ceilings via C-ring/V-rail Tile Bridge and "Dog Leg" Mounting System (Included)
• Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
• Extended Low Frequency Response from the 285 Cubic Inch Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure
• Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
• Perfect Companion with the FAPSUB Subwoofer System When Sub Bass is Required
• Press-Fit Grille Blends Perfectly into Contemporary Architecture

• Cutsheet
