Atlas IED CS95-8

8 inch Recessed Round Stacking Enclosure

CS95-8

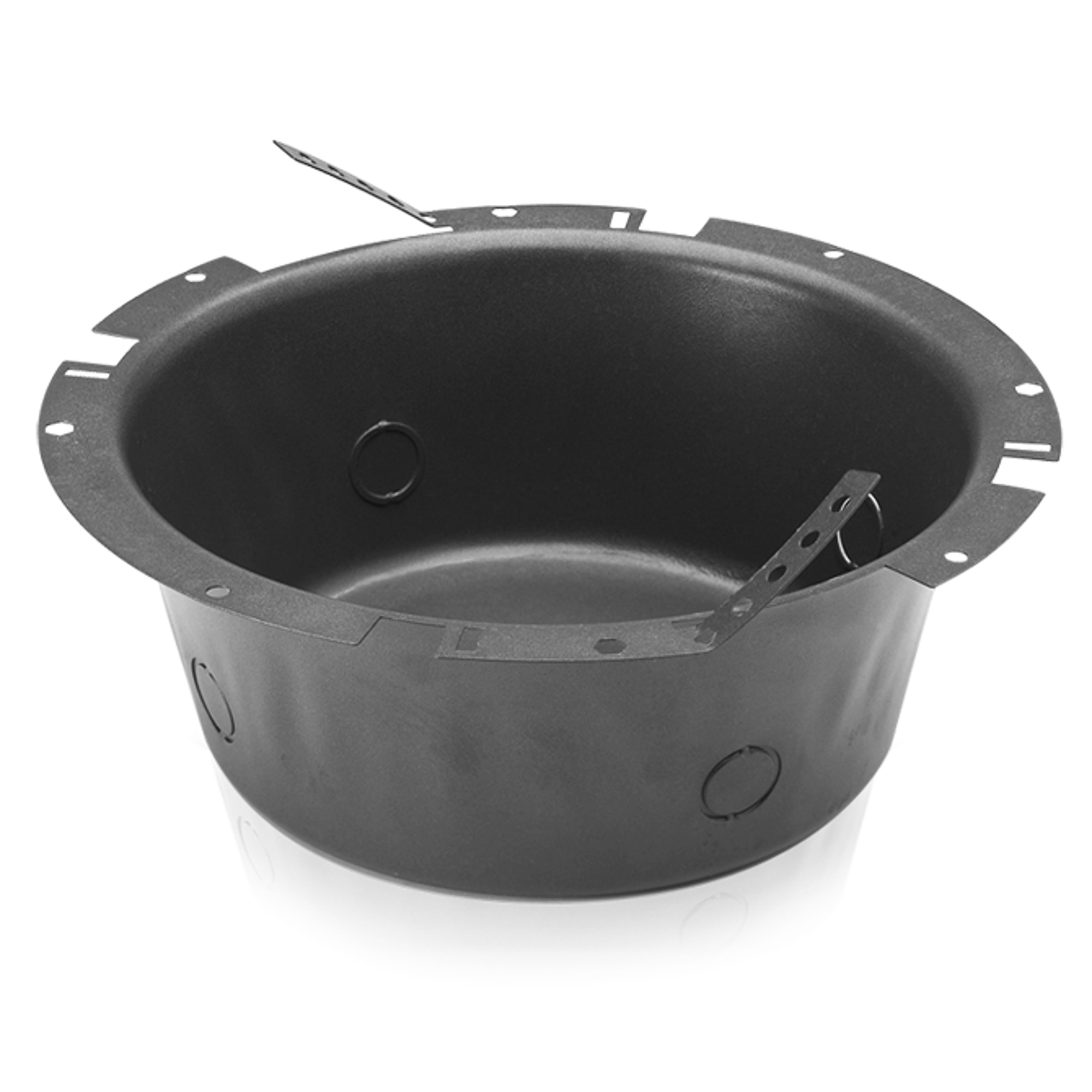

Ideal for contractors with limited storage facilities, this conically shaped enclosure nests to achieve reduced inventory space requirements and transportation costs.

Furnished with four combination conduit knockouts 1/2" 3/4" (13-19mm), four J-clips and two flexible perforated mounting straps. One-piece CRS construction, undercoated, patch-jute lined, and finished in epoxy.

The CS95-8 enclosure is a perfect for use with AtlasIED model SD72W,SD72WV or high performance 8" 8-watt coaxial model GD87W speaker/ transformer/baffle packages.

Note: Enclosure is not designed to mount other speaker packages with pre-mounted high performance transformers (HT-167, HT-327).

• Depth 4 1/4" (10.80 cm)
• Diameter 11 3/4" (29.85 cm)
• Shipping Weight 2.33 lbs (1.06 kgs)
• Mounts Baffle 51-8, 60-8(W), 61-8W, 62-8, 63-8, 67-8(W), G22-8, M222(W), P900, VP60-R
• Safety Listed 1480, 2043
• Warranty Period 60 months from date of purchase

• Cost Effective Enclosure System for General Use
• Perfect for SD72W or DLS4
• Stackable for Easy Storage

• Cutsheet
