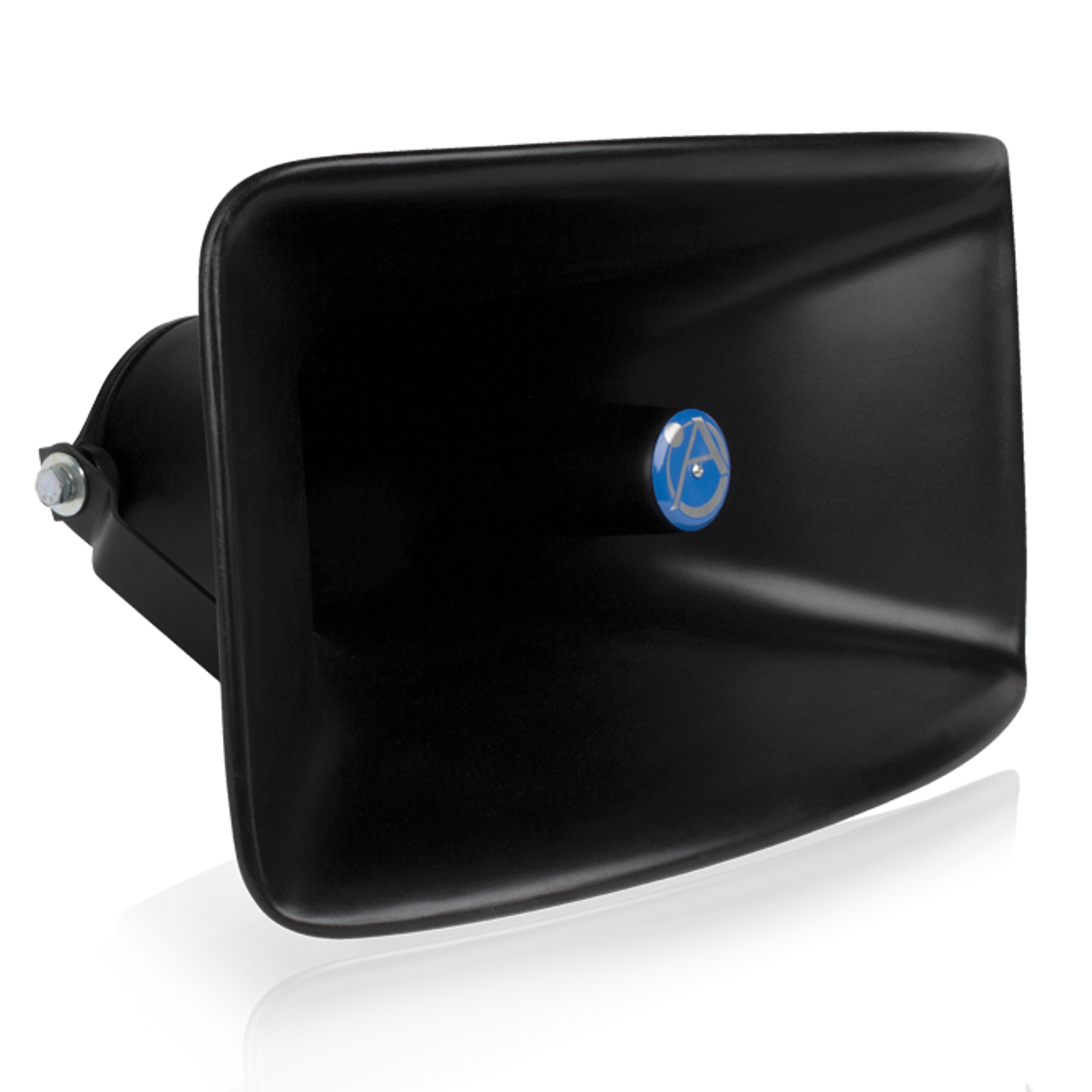

Atlas IED CJ-46

Wide Dispersion Reflex Sound Horn Black

CJ-46

The all-purpose Model CJ-46 wide-angle sound projector screw mounts to AtlasIED PD and SD Series compression drivers to provide maximum audio penetration through adverse ambient sound levels and coverage over long distances. For versatile mounting applications, Model CJ-46 features a heavy-duty steel mounting bracket with positive lock for horizontal and vertical positioning in single or stacked multi-unit clusters.

To meet application requirements, the prime sound dispersion axis may be changed from horizontal to vertical via a 90° bell rotation and four 1/4" screws. Model CJ-46 is manufactured of non-resonant fiberglass with a spun aluminum re-entrant section.

• Dispersion 120° x 60°
• Height 12" (30.48 cm)
• Width 22" (55.88 cm)
• Depth 17" (43.18 cm)
• Shipping Weight 14.50 lbs (6.58 kgs)
• Warranty Period 60 months from date of purchase

• Directional High-Efficiency Reflex Sound Projector with Wide Angle Dispersion
• Environment-Resistant Construction for Outdoor/ Indoor Applications
• Equipped with Standard 1 3/8" - 18 Male Threads for Use with Compression Driver Units
• Heavy-Duty Positive Locking Steel Mounting Bracket for Secure Positioning
