Atlas IED AZA804

800-Watt Networkable 4-Channel Power Amplifier

AZA804

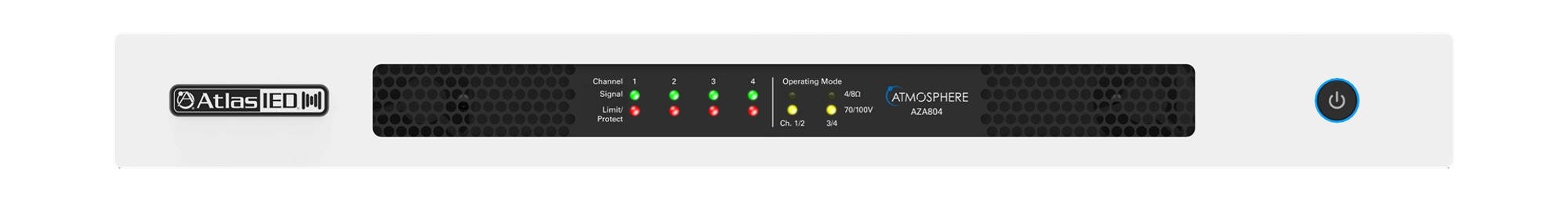

The AtlasIED Atmosphere AZA804 four-channel amplifier is designed to interface with the Atmosphere family of products, such as the AZM series of processors. The AZA amplifiers can be configured in pairs to deliver up to 100W per channel into both low and high impedance speaker loads (4O/8O/70V/100V).

The AZA804 is ready to use out of the box in four-channel, 70V mode, with no additional configuration or network connectivity required, making them easily paired for use with AtlasIED Atmosphere signal processors.

• Power Output 4 x 200-Watts @ 70.7V
• Power Output 4 x 200-Watts @ 100V
• Power Output 4 x 150-Watts @ 8Ω
• Power Output 4 x 100-Watts @ 4Ω
• Power Output 2 x 200-Watts @ 70.7V, 2 x 150-Watts @ 8Ω
• Power Output 2 x 200-Watts @ 100V, 2 x 100-Watts @ 4Ω
• Amplifier Topology Class AB Switching Hybrid -BASH
• Input Sensitivity 750mV Balanced, 0dBU
• Input impedance Balanced 40k
• Maximum Input Signal +14dBU Inputs 1-4, +7dBU Inputs 5-8 with Dante™
• THD 1% @ Rated Output
• Frequency Response 20Hz - 20kHz (DSP Filters Set to Flat)
• Signal to Noise Ratio >100dB Below Rated output (A-Weighted)
• Crosstalk 73dB @ 1kHz
• Voltage 110V - 120V & 220V - 240V
• Auto Switch Over, 50/60Hz
• Rack Units 1
• Height 1.75" (45mm)
• Width 19" (483mm)
• Depth 15.5" (394mm)
• Weight 13 lbs. (5.92kg)
• Warranty Period 36 months from date of purchase

• 70V, 100V, 8ohm, or 4ohm functionality, configurable in channel pairs
• Up to 200W per channel (4 x 200W)
• Four (4) balanced inputs
• Web interface to change output modes and additional monitoring/processing
• Optional Accessory Card Slot for a Four-Channel Dante Receiver (DPA-DAC4)
