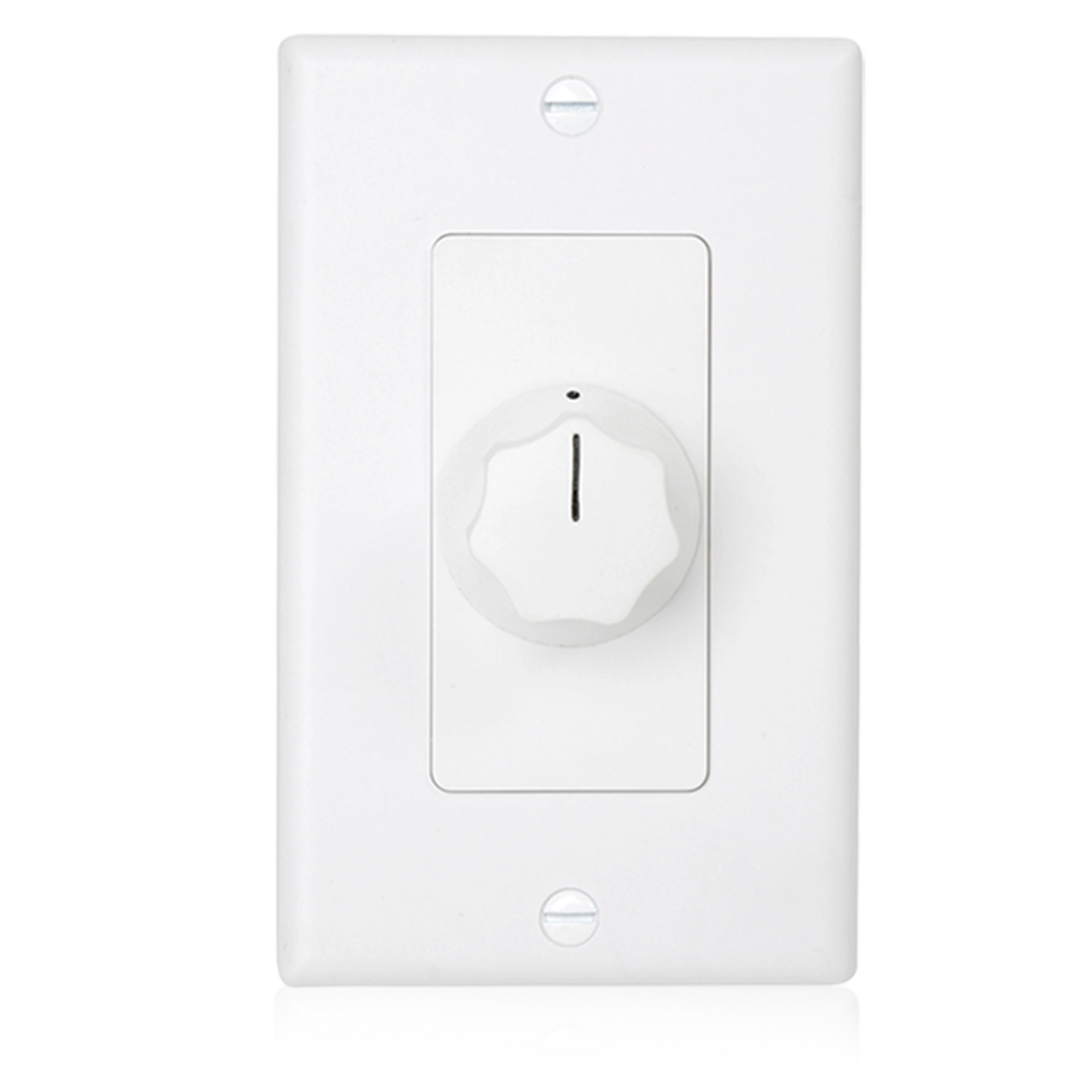

Atlas IED AT35D

Deluxe Decora Plate Mounted 70.7V 35W Attenuator, 3dB Steps

AT35D

Decora style High-quality auto transformer series provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block, and come complete with white and ivory plastic plates with matching skirted knobs.

• Plate Size 1 gang
• Plate Color White - Ivory
• Plate Type Decora
• Power Rating 35W
• Total Attenuation 27dB
• Height 4 1/2" (11.43 cm)
• Width 2 3/4" (6.985 cm)
• Depth 2 1/8" (5.3975 cm)
• Shipping Weight 1.20 lbs (0.54 kgs)
• Safety Listed 813, 2043
• Warranty Period 60 months from date of purchase

• Attractive Alternative to Commercial Series Attenuators
• Mount into Most 1-Gang E.O. Boxes
• White and Ivory Plastic Plates with Matching Skirted Knobs in Decora Style

• Cutsheet
