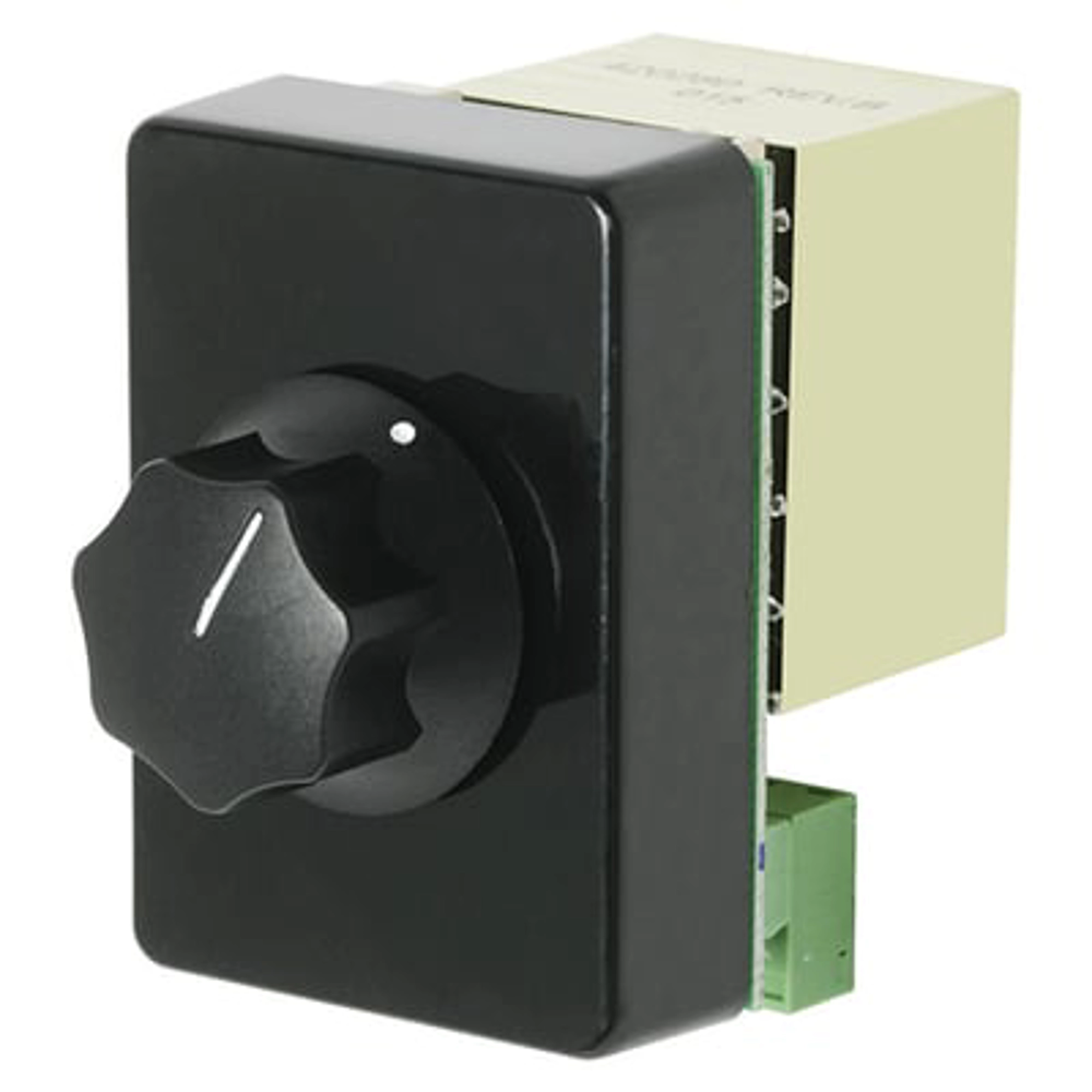

Atlas IED AT100-RM

Deluxe, Rack Mounted 70.7V 100W Attenuator, 3dB Steps

AT100RM

For attenuation convenience of rack-mounted equipment in cabinets and consoles, the AT attenuators are available without mounting plate for rack panel installation. Attractive matte black polycarbonate dial scale overlay with adhesive backing replaces the mounting plate. Includes skirted black knob. Overlay size is 29 sq. (51mm). (Dial scale overlays to retrofit existing installations are available, see hardware section Model HX23.)

• Power Rating 100W
• Total Attenuation 27dB
• Height 2 3/4" (6.985 cm)
• Width 1 3/4" (4.445 cm)
• Depth 2 1/2" (6.35 cm)
• Shipping Weight 1.50 lbs (0.68 kgs)
• Safety Listed 813, 2043
• Warranty Period 60 months from date of purchase

• Attractive Matte Black Polycarbonate Dial Scale Overlay with Adhesive Backing Replaces the Mounting Plate. Includes Skirted Black Knob.
• Mount Up to Six Attenuators on Atlas ATPLATE-052 Rack Plate

• Cutsheet
