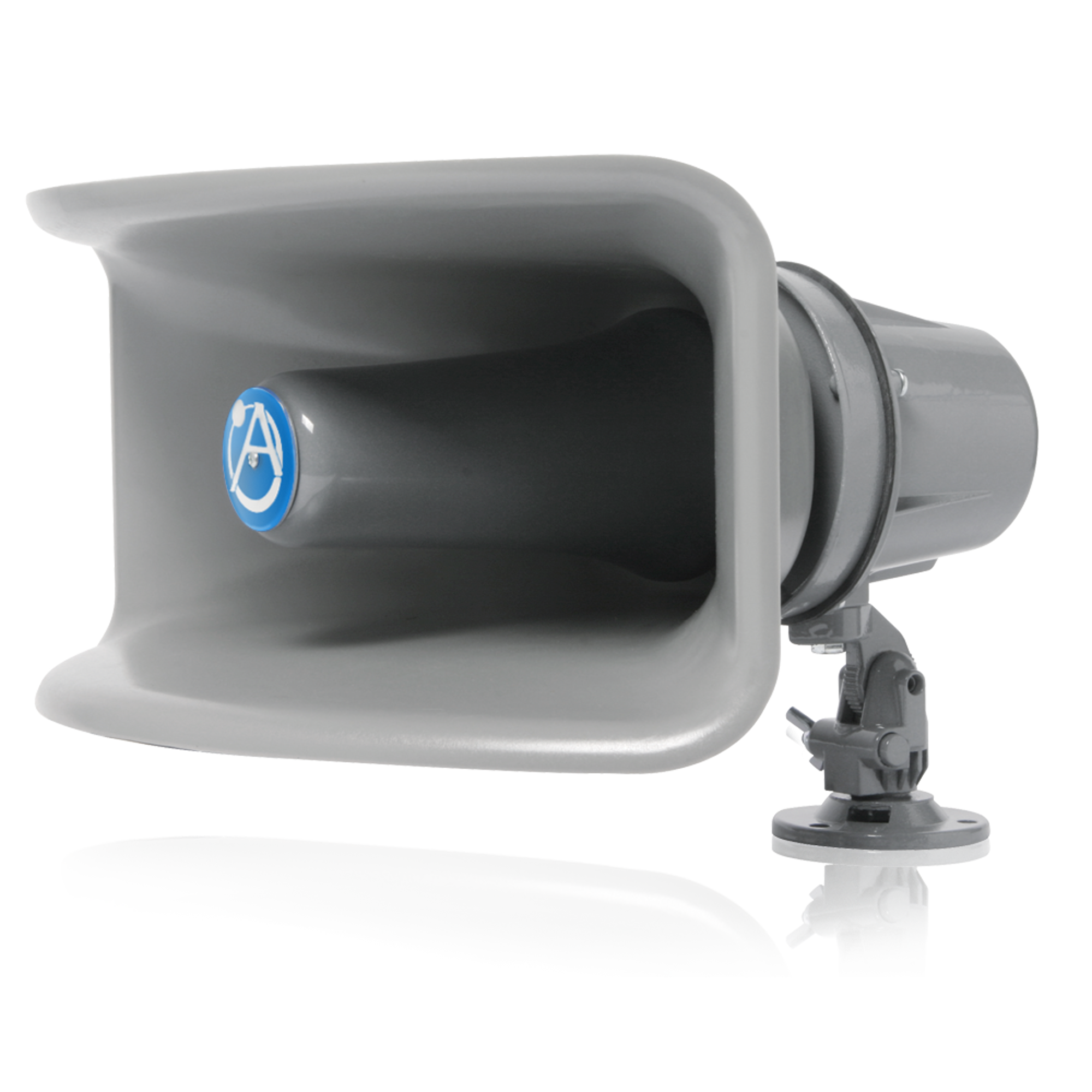

Atlas IED APC-30T

Wide Angle Horn Speaker with 30W 25V/70V/100V Transformer

APC-30T

APC-30T is a high-power 30 watt speaker with extended low frequency response. Unit is equipped with a wide-angle molded plastic bell for sound directivity. Transformer includes a screwdriver-adjust power selection with a 45 ohm tap for intercom and talk-back use.

For mounting, the APC-30T features the Omni-Purpose® bracket for vertical/horizontal positioning with provisions for surface/strap mounting to pillars and I-beams.

Finished in grey baked epoxy.

• Frequency Response 300Hz - 12kHz
• Sensitivity 109dB
• Power Taps 2, 3.8, 7.5, 15, 30W @ 70.7V
• Dispersion 70° x 95°
• Power Rating 30 Watts
• Height 8 1/4" (20.96 cm)
• Width 14 3/8" (36.51 cm)
• Depth 12 7/8" (32.70 cm)
• Shipping Weight 9.00 lbs (4.08 kgs)
• Color Pantone 430 C - RAL 7000
• Operating Temperature Range -40C to 70C
• Warranty Period 60 months from date of purchase

• High-Powered Compression Driver Projects Superior Voice and Tone Signaling
• Includes a 25, 70.7, 100V Transformer with a 45-Ohm Tap
• One-Step Method of Adjusting Bell from Horizontal to Vertical Positioning
• Wide-Angle Sound Dispersion for Maximum Horizontal Pattern Coverage
