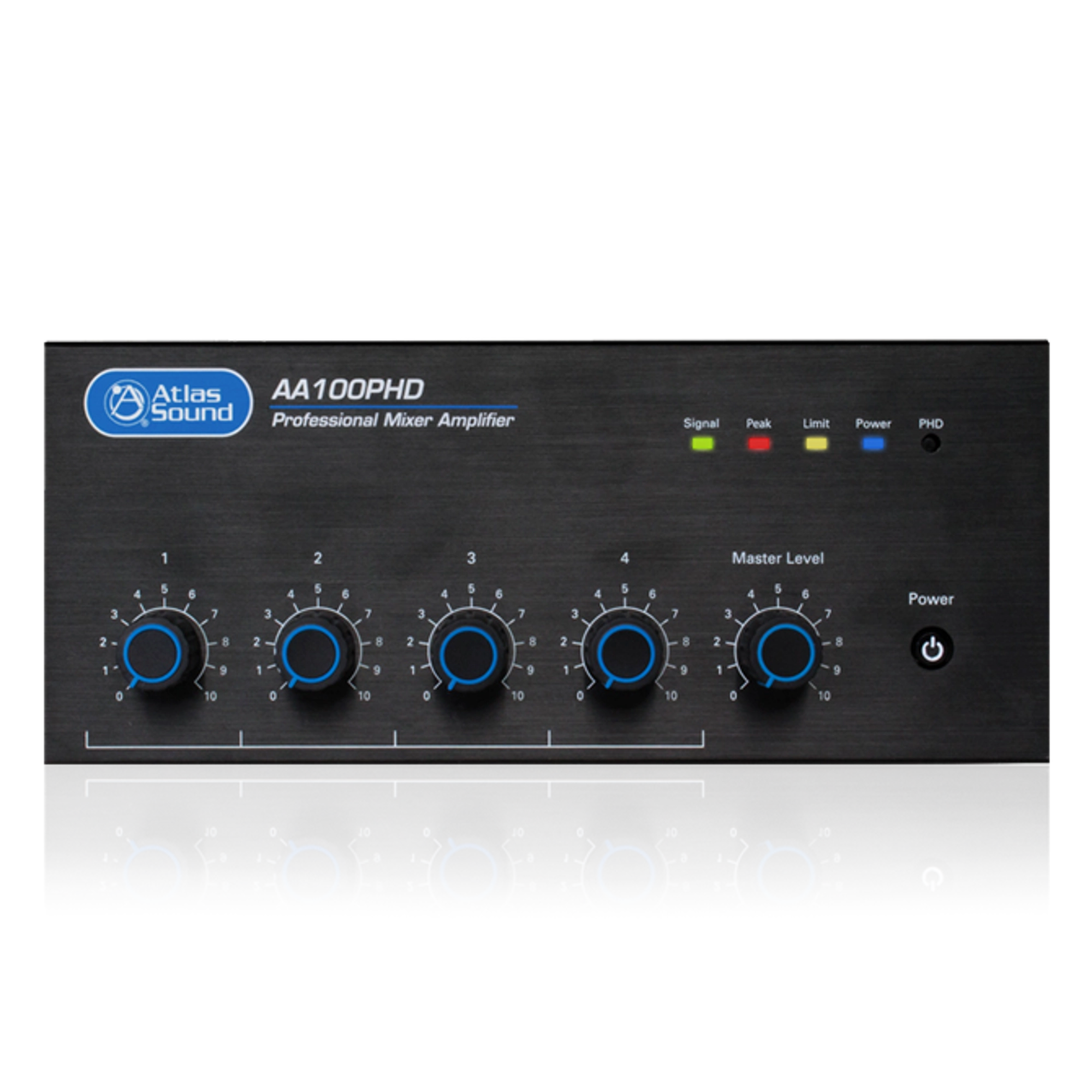

Atlas IED AA100PHD

4-Input, 100-Watt Mixer Amplifier with Automatic System Test (PHD)

AA100PHD

The AA100PHD is a four input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required.

• Frequency Response 50Hz - 15kHz
• Connector Type 4 Position Phoenix 3.5mm Pitch
• Power Output Max. Average Power @ 50Hz-15kHz with .5% THD, 4Ω 100W RMS
• Height 3.66" (93mm)
• Width 8.27" (210mm)
• Depth 10.87" (276mm)
• Weight 13lb
• Shipping Weight 15.2lb
• Voltage Compatibility 110V - 120V
• Warranty Period 36 months from date of purchase

• Rear Mounted DIP Switch Allows Mute Receive for Inputs 2 and 3
• Contact Closure Mute Terminals
• Variable Mute Sensitivity Control for Input 1
• Preamp In for External Processors
• Line Output
• Remote Input Select (RIS)
• Remote Level Control
• Input Assignable Zone 2 Output
• Two Unbalanced, Summing Line Level Inputs
• Two Balanced Mic/Line/Tel Inputs w/ Phantom Power
• Automated Diagnostic System Test (Push Here Diagnostic®)
• 100W into 25V/70.7V and 4? Loads
• Optional Rack Mount Kit Available, Model AARMK2-5
