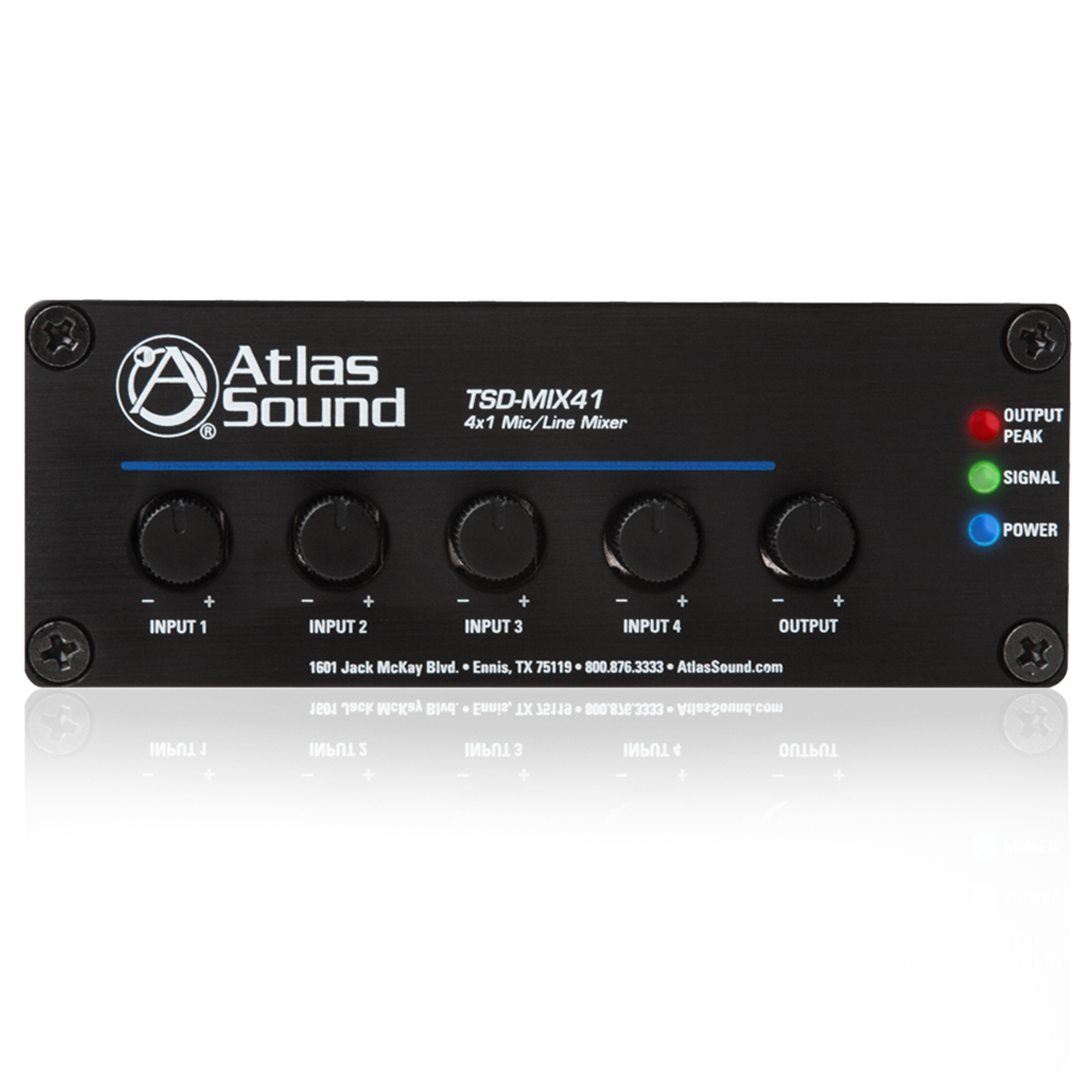

Atlas IED TSD-MIX41

4 x 1 Mic/Line Mixer

TSD-MIX41

The TSD-MIX41 4x1 mic/line mixer is ideal for applications where multiple mic or line sources need to be sub mixed or summed. In house of worship applications the TSD-MIX41 is especially useful for combining similar sources such as choir microphones to a single mixer channel. The unit also works well as a stand-alone mic/line mixer that can be easily interfaced with AtlasIED amplifiers. Other applications include restaurants, conference rooms, and schools.

Installer's Note: Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. This unit has a power requirement of 60mA so any of the available TSD power supplies can be used with the unit. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.

• Input impedance 1.2KΩ Balanced, 600Ω Unbalanced
• THD .06% & 1kHz
• Phantom Power 24VDC Defeatable
• Low Cut Filter 125Hz/12dB Defeatable
• Line Input Level 1V (0dBV) Balanced 2V (+6dBV) Balanced Output
• Mic Input Level 46dB Gain 10mV (-40dBV) Balanced
• Output impedance 300Ω Balanced, 150Ω Unbalanced
• Line Output Level 1V (0dBV) In
• Frequency Response 20Hz - 20kHz (+/-1dB)
• Signal to Noise Ratio Line to Line 85dBV
• Signal to Noise Ratio Mic to Line 78dBV
• 24VDC Power Requirements 60mA
• Height 1.5" (3.81 cm)
• Width 4" (10.16 cm)
• Depth 2.5" (6.35 cm)
• Weight 6oz., .165kg
• Voltage Compatibility 24V
• Warranty Period 36 months from date of purchase

• Four (4) Balanced Mic/Line Inputs
• Four (4) Professional Grade Microphone Preamps with Switchable 24V Phantom Power
• Up to 50dB Mic Gain Per Input
• 12dB/Octave Low Cut Filter @ 125Hz
• Balanced Line Output
• Input Peak & Signal Indicator LED's
• High Gain Output for Driving Long Balanced Lines
• Separate Ground Connections
• Removable Phoenix Style I/O Connectors
• Security Covers Included for All Front Panel Controls
• Power Supply Sold Separately
• Energy Efficient
