Atlas IED C803AT167

8" In-Ceiling 70V 16 Watt Speaker

C803AT167

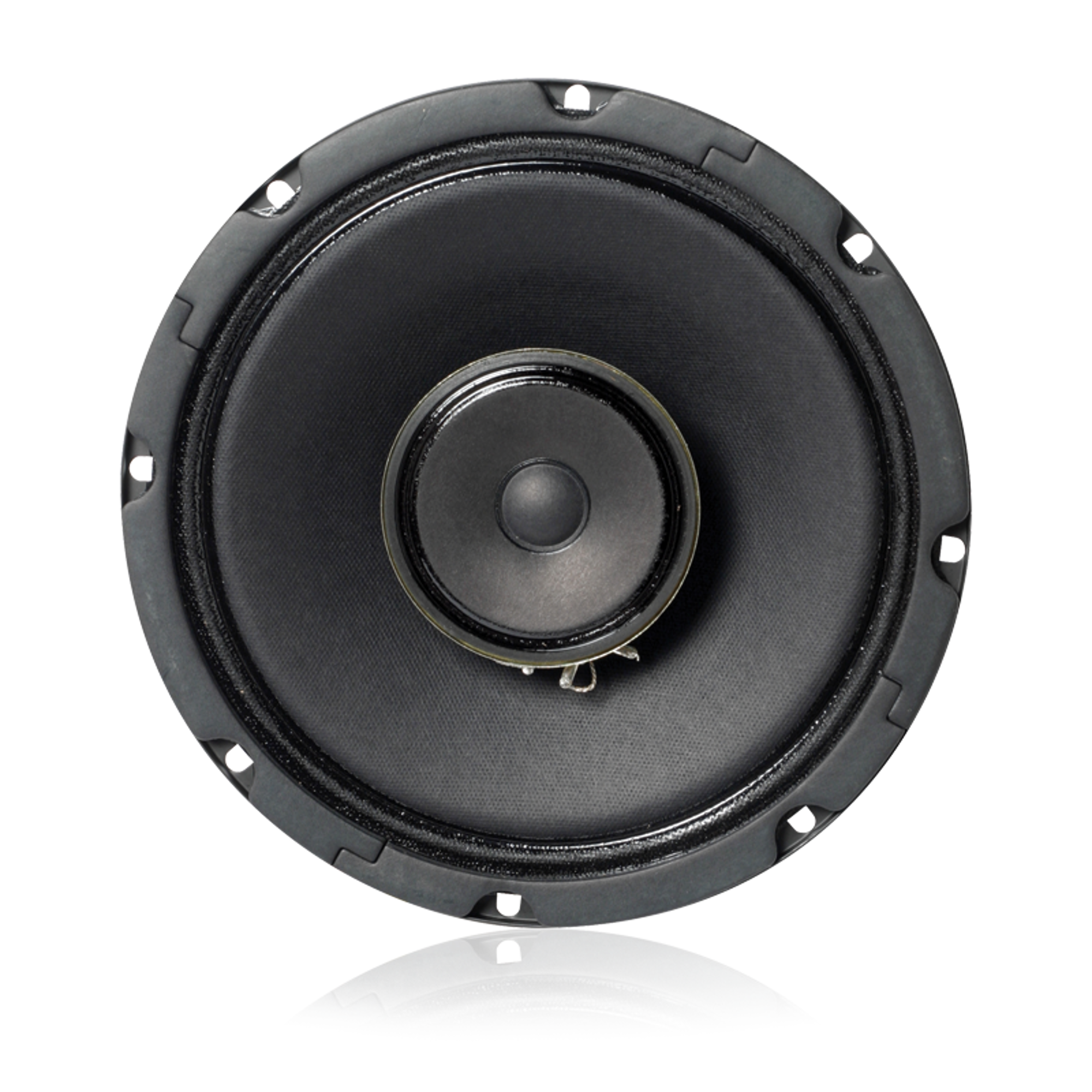

Model C803AT167, A high-quality 16-watt loud speaker with a factory-installed 70.7V 16W line-matching transformer

Model C803AT167 utilizes a post-mounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial speaker features a 40Hz - 15.5kHz, frequency response and a broad, uniform dispersion pattern of 120°. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems.

The C803A combines a full-size 8" (203mm) dia. low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet and the unit has a peak sensitivity of 98dB (at 1 watt, 1 meter).

Model C803A mounts a wide variety of AtlasIED baffles and enclosures, with the optimum sealed enclosure size being .36 cu. ft.

• Speaker Type Treated Paper
• Sensitivity 98dB (peak), 95dB (avg)
• Frequency Response 40Hz - 15kHz
• Power Taps 4, 8, & 16 Watts
• Dispersion 120°
• Depth 5 1/8" (13.0302 cm)
• Diameter 8" (20.32 cm)
• Shipping Weight 4.75 lbs (2.15 kgs)
• Safety Listed 1480
• Warranty Period 60 months from date of purchase

• Ideal for Multi-Purpose Commercial, Industrial, and Institutional Use
• Industry Standard 8" (203mm) Coaxial, 16-Watt, Loudspeaker
• Offers Proven Performance with Wide Frequency Response
• Post-Mounted Tweeter Adds Strength and a More Attractive Appearance

• Cutsheet
