Altronix WayPoint562

High Current Outdoor Power Supply/Charger

WayPoint562

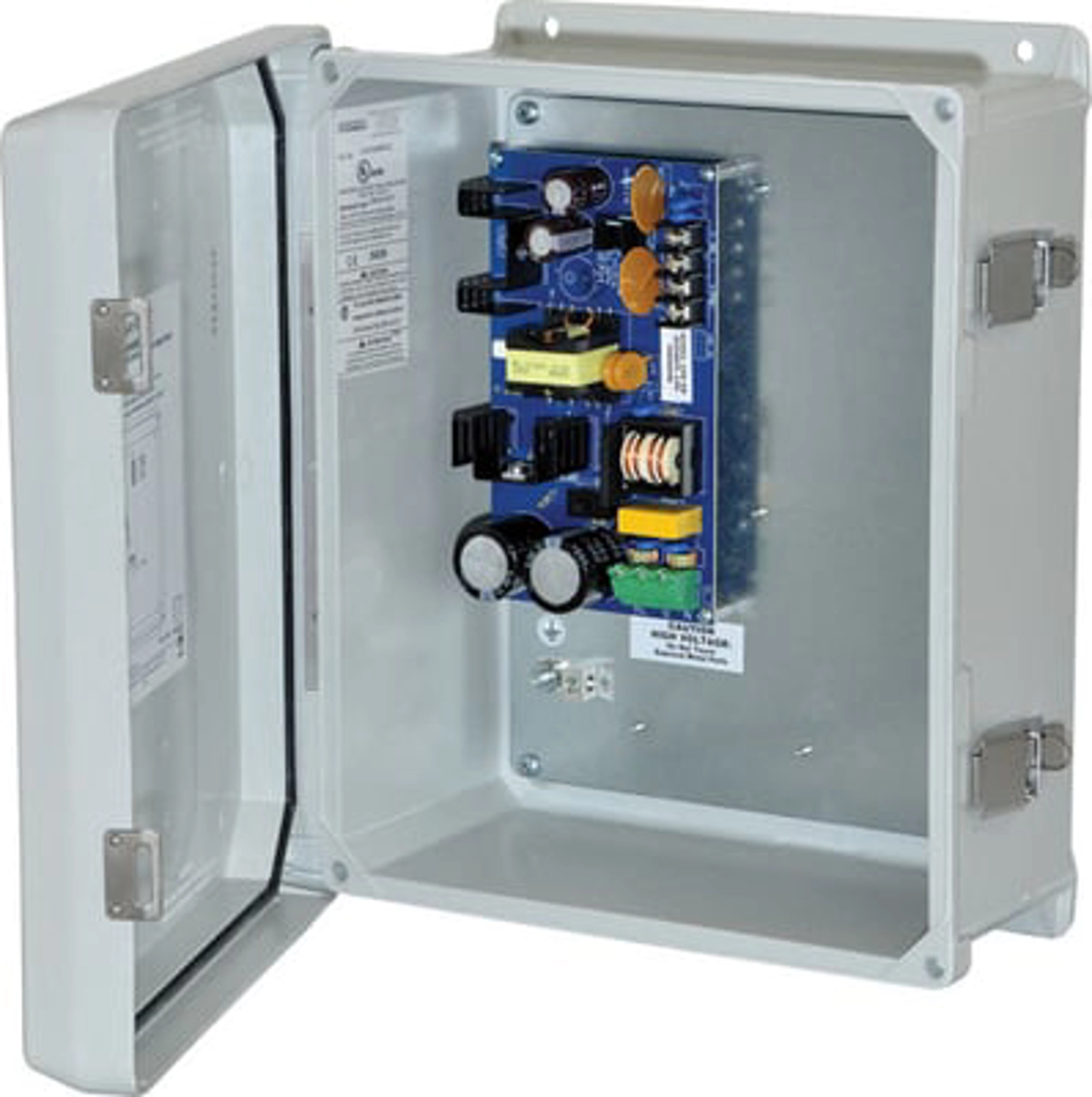

Altronix WayPoint562 provides 120W for NetWay Spectrum switches with 1Gb SFP ports. It converts 115VAC, 60Hz or 230VAC, 50Hz input into a 56VDC at 2.2A of continuous supply current (see specifications). It also features a built-in charger for sealed lead acid or gel type batteries. Lightweight molded fiberglass reinforced polyester enclosure is NEMA 4/4X, IP66-11 Rated for outdoor use. It features lockable stainless steel latches and integral flanges to simplify wall or pole mounting.

Input

• 115VAC, 60 Hz, 2.5A or 230VAC, 50Hz, 1.3A.

Output

• 56VDC/120W output.
• 2.2A continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Electrical

• Operating Ambient Temperature: - 20ºC to 50ºC.
• System AC input VA requirement: 300VA.

Battery Charging

• Type: Sealed lead acid or gel type
• Failover: Upon AC loss, instantaneous
• (Batteries are sold separately).
• Separate ventilated enclosure is required

Temperature

Operating Temperature:

• 60W: -40ºC to 75ºC (-40ºF to 167ºF);
• 75W: -40ºC to 70ºC (-40ºF to 158ºF);
• 100W: -40ºC to 55ºC (-40ºF to 131ºF),
• 120W: -40ºC to 45ºC (-40ºF to 113ºF).

Storage Temperature:

• -40ºC to 70ºC (-40ºF to 158ºF).
• Relative humidity: 85%, +/- 5%.

BTU/Hr. (approx.):

• 72 BTU/Hr.

.
