Altronix WayPoint3

1-Output Outdoor Power Supply Charger 12/24VDC

WayPoint3

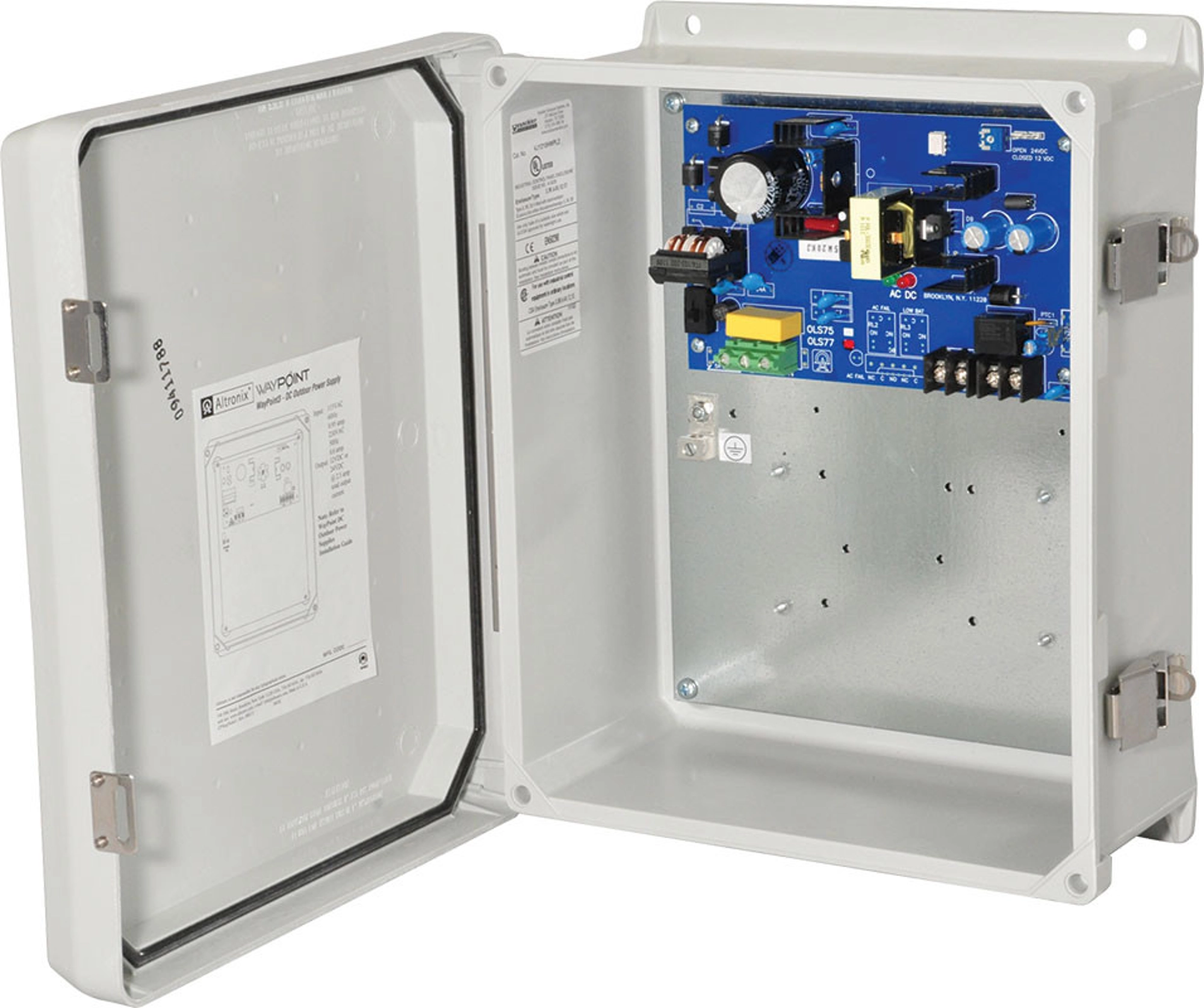

Altronix WayPoint3 DC Outdoor Power Supply/Charger provides 12VDC or 24VDC and is designed to be conveniently located where power is required. Lightweight molded fiberglass reinforced polyester enclosure is NEMA 4/4X, IP66-11 Rated for outdoor use and accommodates up to two (2) 12VDC/7AH batteries. It features lockable stainless steel latches and integral flanges to simplify wall or pole mounting.

Input

• 115VAC, 60Hz, 0.95A or 230VAC, 50Hz, 0.6A.

Output

• 12VDC or 24VDC selectable output.
• 2.5A continuous supply current.
• Filtered and electronically regulated output.
• Thermal overload and short circuit protection.

Battery Charging

• Capacity: 12VDC/7AH (1 or 2 within enclosure); Up to 40AH/65AH (Separate ventilated enclosure is required)
• Type: Sealed lead acid or gel type
• Failover: Upon AC loss, instantaneous
• (Batteries are sold separately).

Temperature

• Operating: - 40° C to 60° C (-40° F to 140° F).
• Storage: - 40° C to 70° C (-40° F to 158° F).
• Relative Humidity: 85% +/- 5%.

BTU/Hr. (approx.):

• 12VDC: 15 BTU/Hr.
• 24VDC: 31 BTU/Hr.

System AC input VA requirement:

• 115VAC: 109.25VA.
• 230VAC: 138VA.

• AC and DC power LED indicators.
• Ease of installation saves time and eliminates costly labor.
• Includes battery leads.
