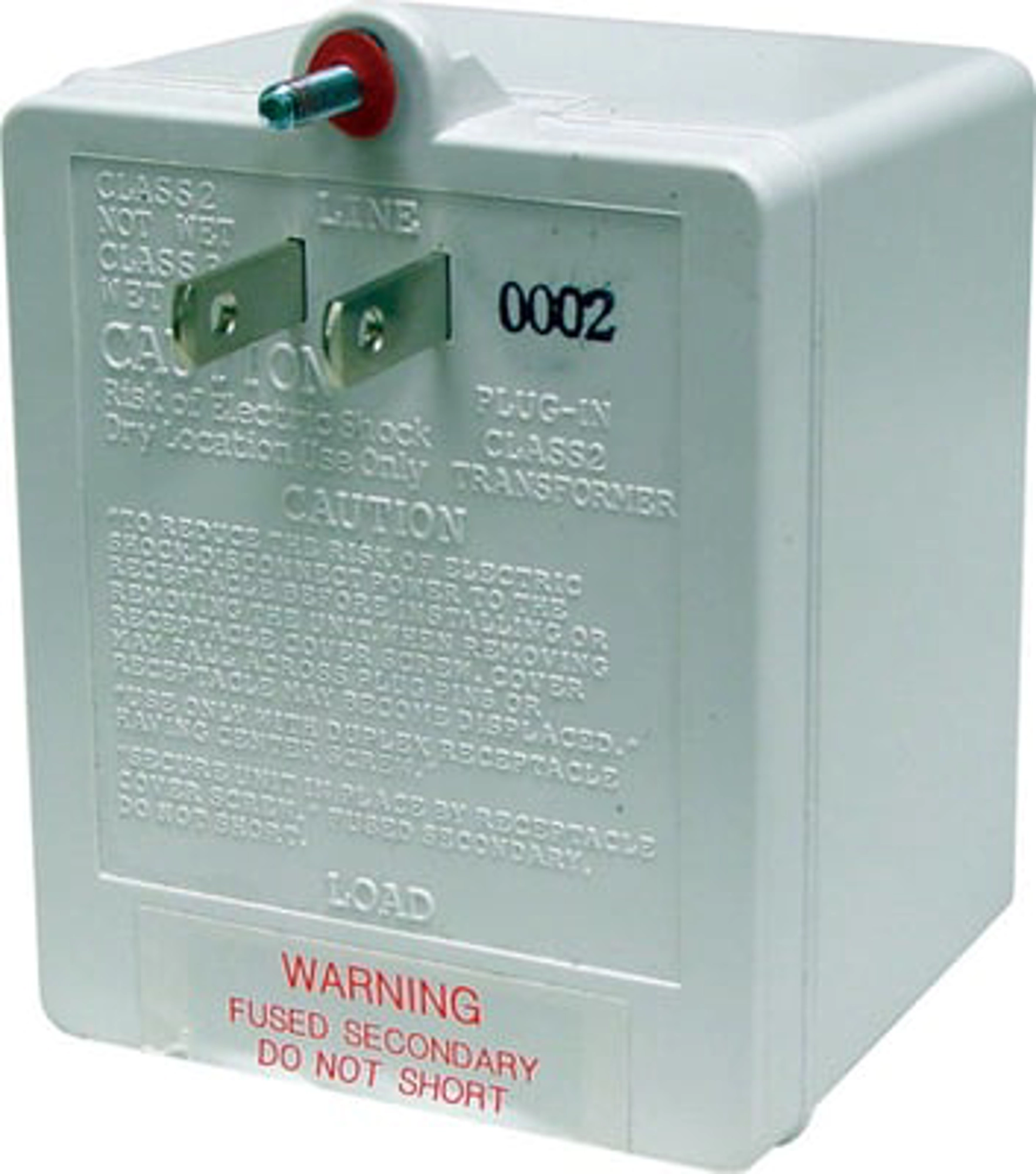

Altronix TP2440

24VAC Plug-In Transformer

TP2440

Altronix TP2440 transformer provides 24VAC with a total of 1.67A output current.

Input

• 115VAC 50/60 Hz, 0.48A.

Output

• 24VAC/40VA (1.67A) output.

Temperature

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.
• BTU/Hr. (approx.): 21 BTU/Hr.
• System AC input VA requirement: 55.2VA.

• Cutsheet
