Altronix T2M7LXK3D

8-Door Altronix/Mercury Access and Power Integration Kit - Trove2M2 with AL1024ULXB2, ACMS8CB, PDS8CB, VR6, RSB1

T2M7LXK3D

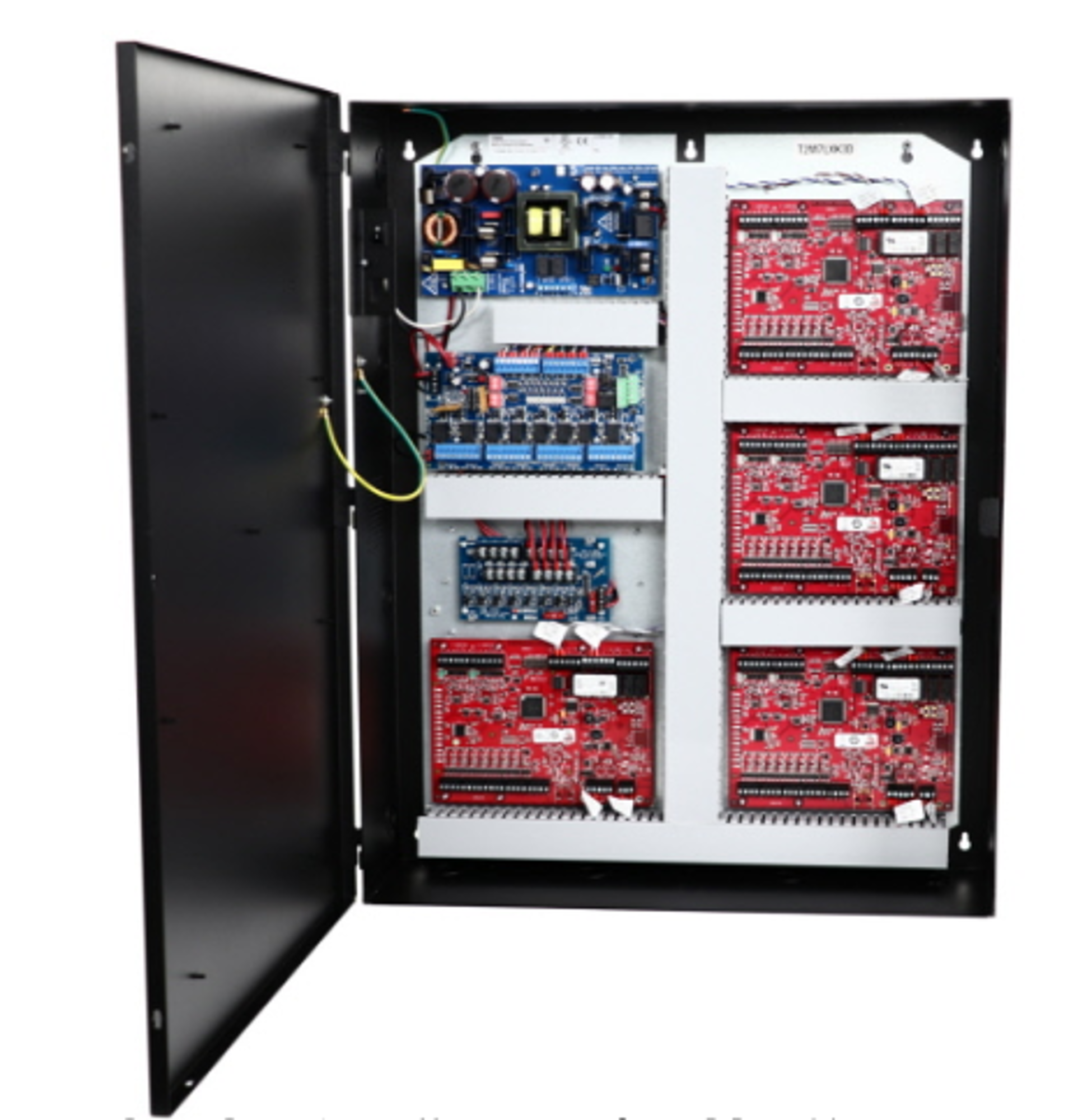

Altronix T2M7LXK3D is a 8-door access and power integration kit which includes Altronix power and sub-assemblies along with factory installed wire management and wire assemblies that are pre-configured with terminal blocks for Mercury* hardware. This unit provides ample power and dual voltage outputs to support Mercury platform controllers and locking devices. The T2M7LXK3D accommodates four (4) Dual Reader Interface Modules. Trove Plus simplifies field installations and provides reliable, robust critical power and control for the most demanding applications.

*Also compatible with these authentic Mercury partners:

AccessNsite, Avigilon, BadgePass, BluBox, Feenics, Genetec, Identicard, IMRON, Johnson Controls, Kastle, Keri Systems, LockState, Maxxess, Midpoint Security, NLSS, Open Options, Panasonic i-PRO MonitorCast, Quintron, RS2, S2 Security, Schneider Electric, Vanderbilt

AL1024ULXB2 Power Supply/Charger

Input

• Voltage: 115VAC, 60Hz, 4.2A max.
• Main Fuse: 5A / 250V.

Output

• Voltage: 24VDC.
• Current: 10A @ 24VDC continuous max.
• Other: Overvoltage protection. Filtered and regulated.

Battery Charging

• Capacity: 12AH /12VDC (2 within enclosure), 40 AH / 65 AH (requires separate enclosure).
• Type: Sealed lead acid or gel type.
• Failover: Upon AC loss, instantaneous.
• (Batteries are sold separately).

Supervision

• AC Failure: Form C contacts.
• Battery: Form C contacts.

Indicators LED

• Input: 115VAC is present.
• DC Output: Powered.
• Battery: Discharged or not connected.

VR6 Voltage Regulator

Input

• Voltage: 24VDC from AL1024ULXB2.

Output

• Voltage: 12VDC.
• Current: 6A continuous.
• Other: Surge suppression.

Indicators LED

• Input: 24VDC is present.
• Output: Powered.

ACMS8CB Dual Input Access Power Controller

Input

• Voltage: 24VDC from AL1024ULXB2 and 12VDC from VR6.
• Input PTC: 9A.

Outputs

• Voltage: 12VDC or 24VDC individually selectable.
• Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form C relay outputs:
• a) Fail-Safe and/or Fail-Secure power outputs.
• b) Form C Relays rated 28VAC or VDC @ 2.5A Rated.
• c) Auxiliary power outputs (unswitched).
• d) Any combination of the above.
• Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
• Individual outputs may be set to OFF position for servicing.

Outputs Ratings

• PTCs: 2.5A.

Indicators (LED)

• Red LEDs: Outputs are triggered (relays energized).
• Blue LED: FACP disconnect is triggered.
• Individual voltage LEDs:
• Green: 12VDC.
• Red: 24VDC.

PDS8CB Dual Input Power Distribution Module

Input

• Voltage: 12VDC from VR6 and 24VDC from AL1024ULXB2.
• Input PTC: 9A.

Outputs

• Voltage: 12VDC and/or 24VDC.
• Any of the eight (8) power outputs are selectable to follow power Input 1 or Input 2.
• Individual outputs may be set to OFF position for servicing.

Outputs Ratings

• PTCs: 2.5A.

Indicators (LED)

• DC Output: Eight (8) individual output LEDs.
• Green: 12VDC
• Red: 24VDC.

Environmental

Temperature

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).

Relative Humidity

• Relative Humidity: 85% +/- 5%.

BTU/Hr. (approx.):

• 145 BTU/Hr.
