Altronix SMP3ET

1-Output Power Supply Charger with Enclosure and Plug-In Transformer 6/12VDC 2.5A

SMP3ET

Altronix SMP3ET power supply/charger converts a low voltage AC input into a 6VDC or 12VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.

Input

• 16VAC from TP1640 plug-in transformer.

Output

• 6VDC or 12VDC selectable output.
• 2.5A continuous supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.

Battery Charging

• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• Maximum charge current 0.3A.
• Battery short circuit protection (circuit breaker).
• (Batteries are sold separately).

Visual Indicators

• AC input and DC output LED indicators.

Features

• Includes battery leads.

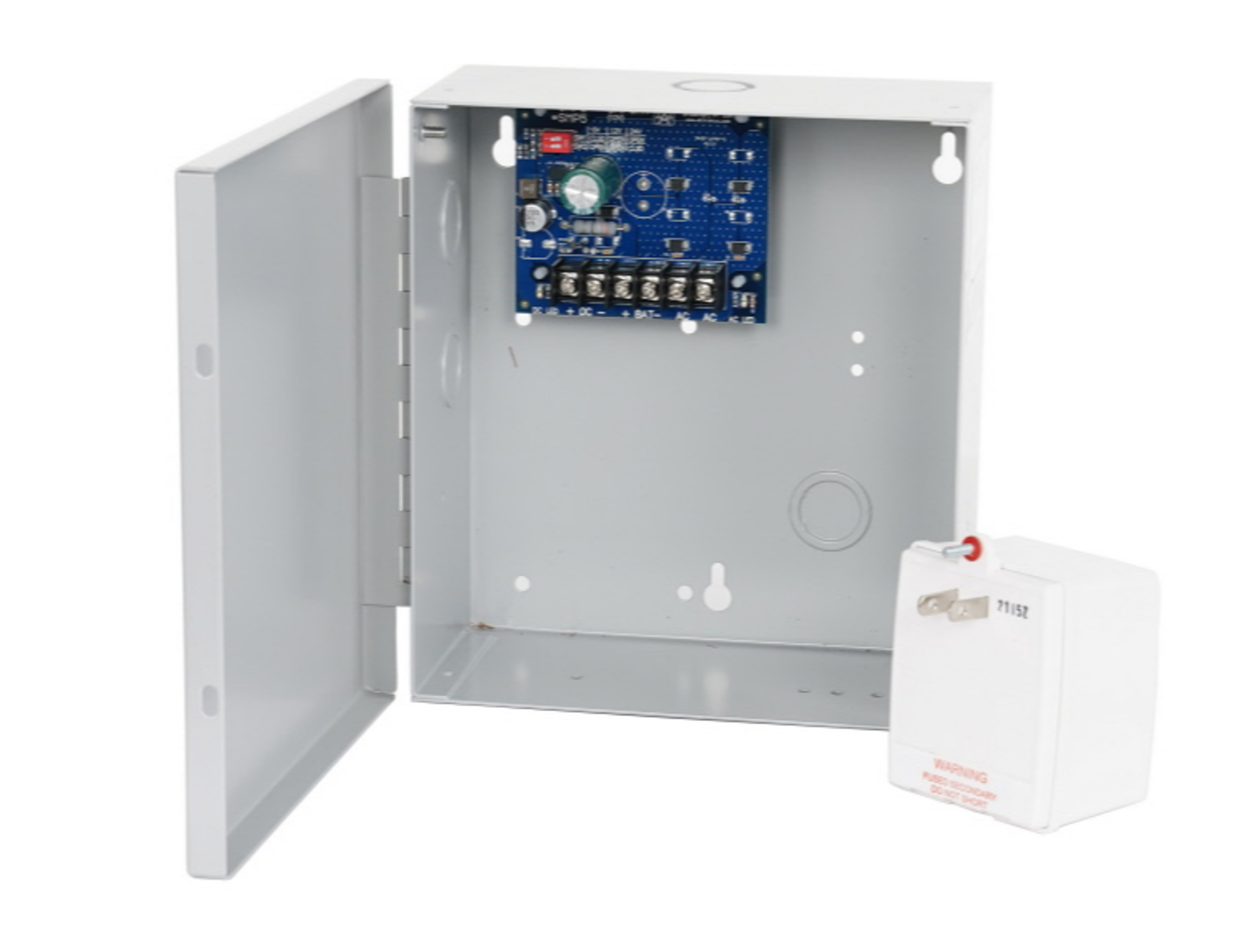

• Power supply/charger with enclosure and TP1640 plug-in transformer (16.5VAC/40VA).
• Includes four (4) nylon fasteners.
• Fits one (1) 12VDC/7AH or two (2) 12VDC/4AH batteries.

Temperature

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity: 85% +/- 5%.

BTU/Hr. (approx.):

• 6VDC: 8 BTU/Hr.
• 12VDC: 15 BTU/Hr.

System AC input VA requirement:

• 6VDC/12VDC: 276VA.
