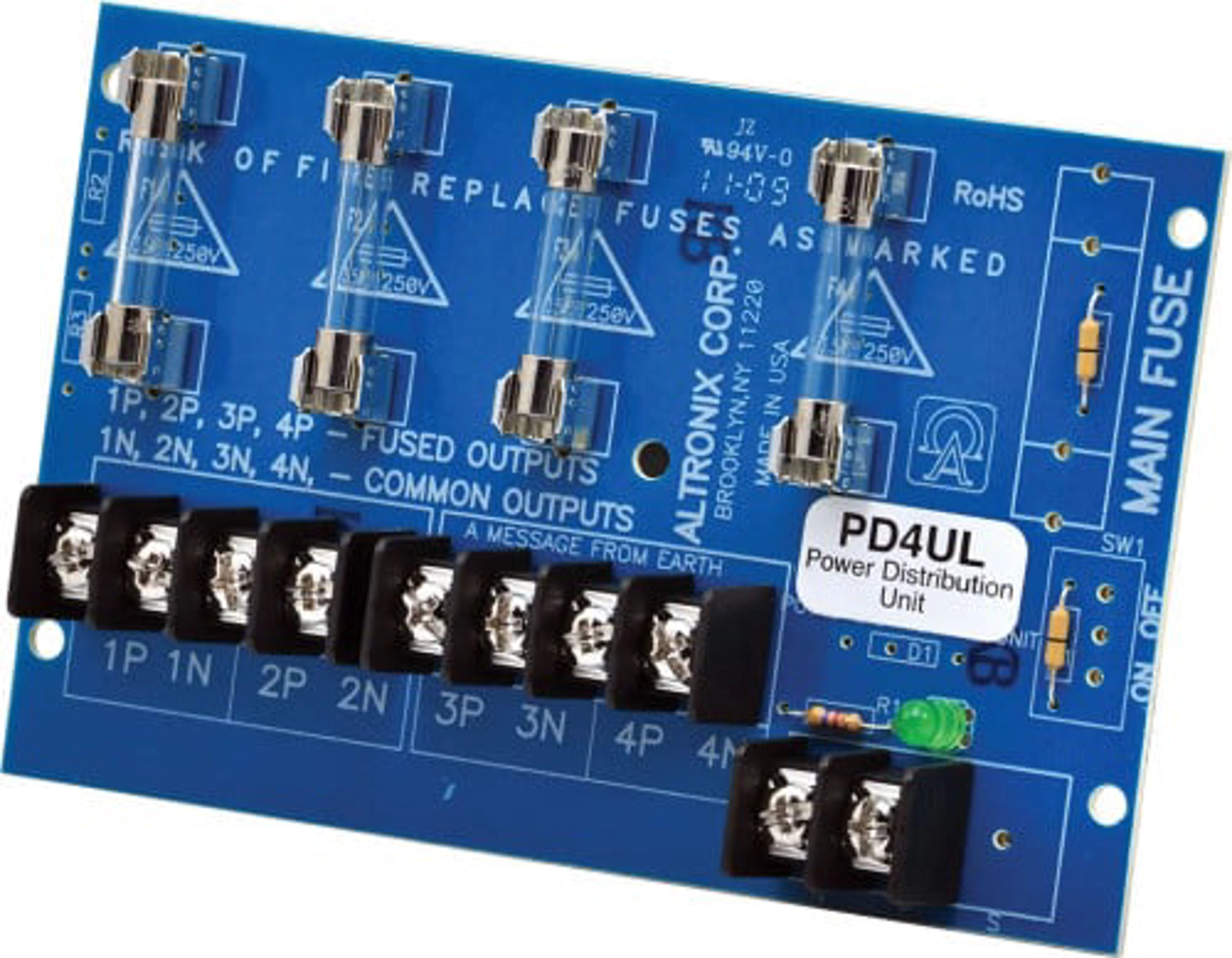

Altronix PD4UL

4-Output Power Distribution Board Individually Fused UL Listed

PD4UL

Altronix PD4UL UL Listed Sub-Assembly power distribution module is designed to convert a single AC or DC input into four (4) individually fuse protected outputs.

Input

• 12VDC or 24VDC up to 10A (total output current should not exceed max current rating of power supply employed).

Output

• Four (4) fuse protected outputs.
• Fuses rated @ 3.5A/250V.
• Surge suppression.

Temperature

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity 85% +/- 5%.

• Power LED indicator.
