Altronix NetWaySP8X

SKU: ALT-NETWAYSP8X

MPN: NETWAYSP8X

Description

8-Port Hardened PoE+ Switch Dual Gigabit SFP Uplink with Power Supply Charger with Indoor Enclosure 115w Budget

Add to Wishlist

Send to a friend!

8-Port Hardened PoE+ Switch Dual Gigabit SFP Uplinks with Power Supply Charger with Indoor Enclosure

NetWaySP8X

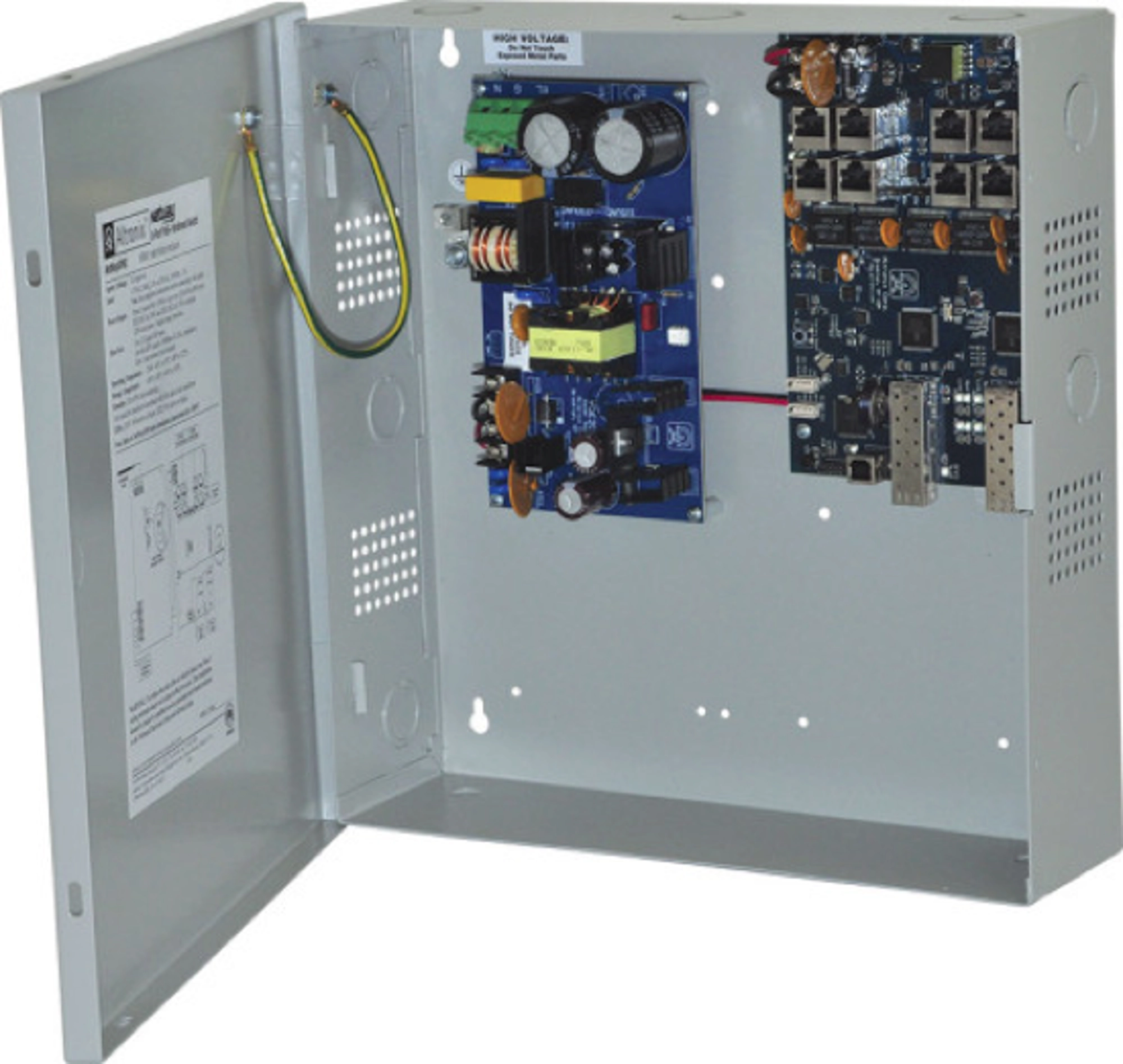

Altronix NetWaySP8X PoE+ Indoor Hardened Switch provides two (2) 1Gb SFP (Fiber) ports and eight (8) PoE+ (30W) or two (2) 60W ports, passing data for PoE/PoE+ compliant devices. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control, and report power and diagnostics from anywhere.

Input

115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A.
Fusing: 5A/250V.

Power Output

Maximum Power: Eight (8) ports PoE+ (30W) ports or up to two (2) 60W ports.
IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
115W total power.
Integral surge protection.

Fiber Port

Two (2) Gigabit SFP ports.
Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).

Ethernet Ports

Six (6) 10/100 Mbps and two (2) 10/100/1000 Mbps ports.
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5 or better structured cable.
Distance: up to 100m.
Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.

Battery Charging

Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).

Indicators (LED)

Individual PoE On LEDs for each port.
Individual IP Link status, 10/100Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.

VLAN

Multiple management VLAN assignment.
802.1Q Tagged VLAN. Up to 10 VLAN groups. ID Range 2-4095.

LINQ Technology

Remote network management allows for camera/device reset and monitoring.
Provides local and/or remote access to critical information via LAN/WAN.
Email and Windows Dashboard Alert notifications report real-time diagnostics.
Event log tracks history.

Temperature

Operating:

60W: - 40° C to 75° C ( - 40° F to 167° F).
75W: - 40° C to 70° C ( - 40° F to 158° F).
100W: - 40° C to 55° C ( - 40° F to 131° F).
115W: - 40° C to 45° C ( - 40° F to 113° F).
Storage: - 40° C to 85° C ( - 40° F to 185° F).
Relative Humidity: 85% +/- 5%
BTU/Hr. (approx.): 61 BTU/Hr.

Operating Altitude

- 304.8 to 2,000m.
