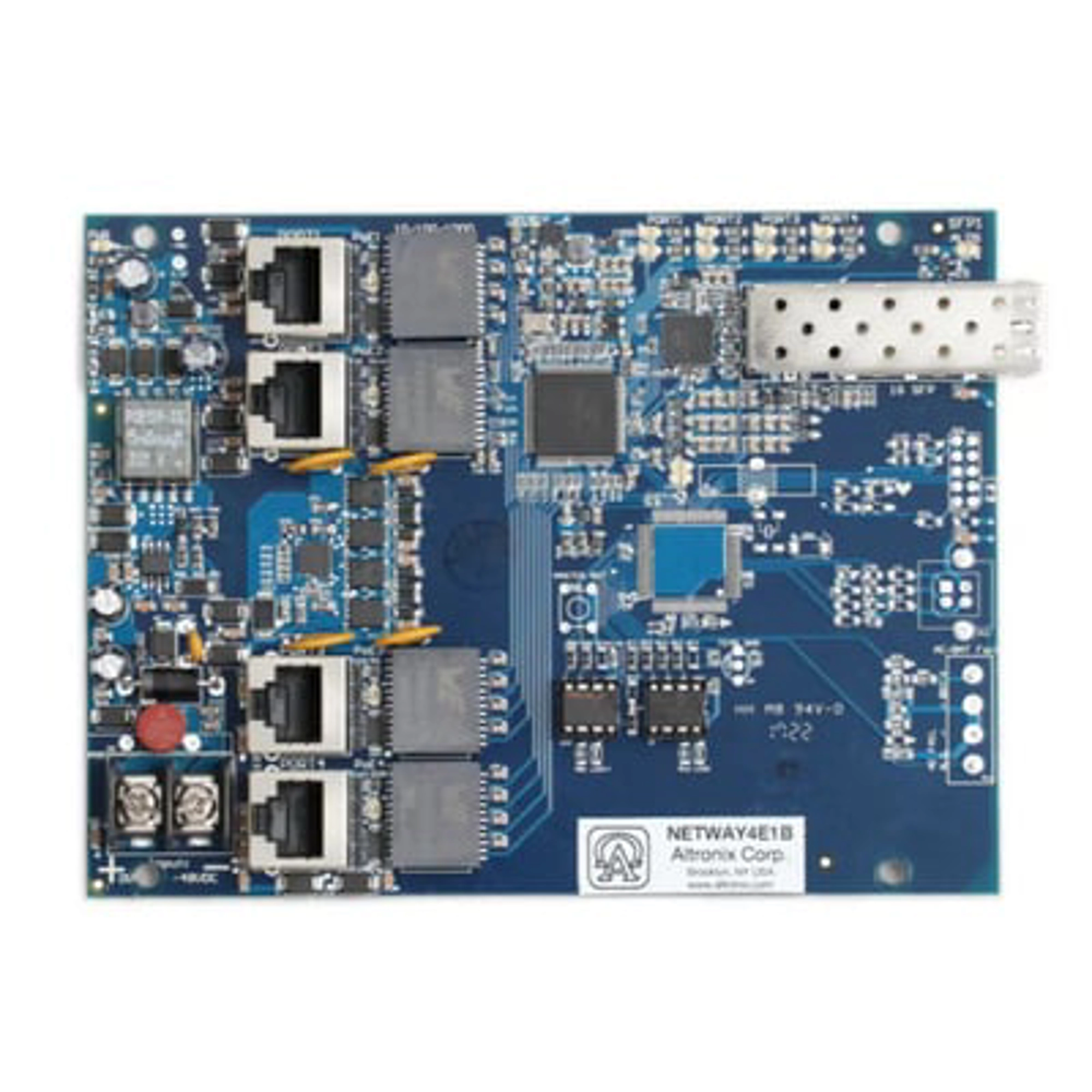

Altronix NetWay4E1B

4-Port PoE+ Hardened Switch Board

NetWay4E1B

Altronix NetWay4E1B PoE+ Switch provides a 1Gb SFP port and four (4) PoE+ (30W) ports. Cameras/edge devices may be located up to 100m from the unit.

Input

• Voltage: 48V-56V (UL Listed ITE power supply)

Power Output

Maximum Power:

• Four (4) 10/100/1000 Mbps.
• PoE/PoE+ (up to 30W) ports.
• IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant.
• 120W total power.
• Integral surge protection.

Fiber Port

• One (1) Gigabit SFP port.

Indicators (LED)

• Individual PoE On LEDs for each port.
• Individual IP Link status, 10/100Base-T/active LEDs for each port.
• ALOS LED indicates fiber connection for SFP port.
• Heartbeat LED indicates proper operation of the unit.

Temperature

• Operating (120W): -40ºC to 75ºC (-40ºF to 167ºF).
• Storage: -40ºC to 85ºC (-40ºF to 185ºF).
• Relative Humidity: 85% +/-5%.

Operating Altitude

• - 304.8 to 2,000m.

weight: 0.75 Lbs.(0.34 kg).
