Altronix NetWay1DWP

1-Output Outdoor PoE+ Injector with Enclosure

NetWay1DWP

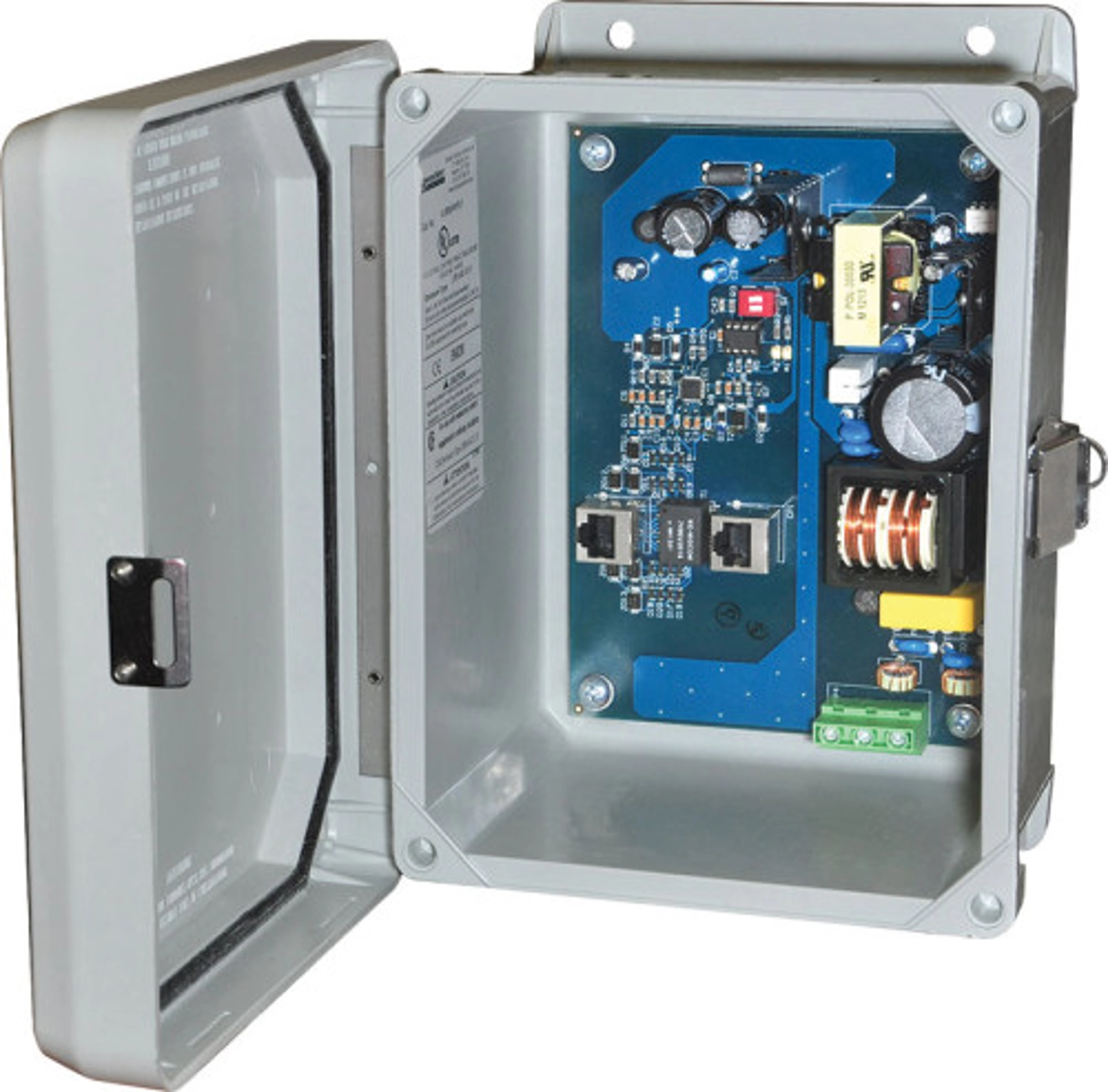

Altronix NetWay1DWP outdoor single port midspan injector provides PoE (30W), PoE (15W) or (60W). The unit is ideal for use with outdoor IP cameras and PTZs, WiMAX modems and WLAN access points. NetWay1DWP features a lightweight NEMA 4/4X IP66-11 rated enclosure that can be wall or pole mounted. The unit operates at 115VAC or 230VAC input. Model NetWay1DWPH features enclosure with three (3) 5/8" wiring inlets and includes NEMA rated wire glands.

Input

• 115VAC, 60Hz, 1.2A or 230VAC, 50/60Hz, 0.75A.

Power Output

• Maximum power: Hi-PoE (60W). Power product using all 4 pairs for 60W.
• IEEE 802.3at (30W) & IEEE 802.3af (15W) compliant.
• Integral surge protection.

Ethernet

• Connectivity: RJ45, auto-crossover.
• Wire type: 4-pair Cat5e or higher cable.
• Distance: up to 100m.
• Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.

Indicators (LED)

• LED 1: PoE active..
• LED 2: AC Power present.
• Yellow and Green LEDs (by RJ45 jack):
• IP Link status, 10/100Base-T/active.

Temperature

Operating:

• 30W: - 30° C to 70° C ( -22° F to 158° F).
• 60W: - 30° C to 55° C ( -22° F to 131° F).

Storage:

• - 30° C to 85° C ( -22° F to 185° F).
• Relative Humidity 85% +/- 5%.

System AC input VA requirements:

• 115VAC: 138VA.
• 230VAC: 172.5VA.

Operating Altitude

• - 304.8m. to 609.6m.
