Altronix eFlow6N8

8-Output Power Supply Charger with Enclosure 12/24VDC 6A

eFlow6N8

Altronix eFlow6N8 is a power supply/charger that converts a 120VAC 60Hz input into eight (8) fuse protected selectable 12VDC or 24VDC outputs with a total of 6A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.

Input

• 120VAC, 60Hz, 3.5A.
• Input fuse: 5A/250V.

Output

• Eight (8) fuse protected outputs.
• 12VDC or 24VDC @ 6.0A supply current.
• Outputs are rated at 2.5A.
• Auxiliary Power-Limited output rated @ 1A (unswitched).
• Over Voltage Protection.

Battery Charging

• Built-in charger for sealed lead acid or gel type batteries.
• Maximum charge current: 1.54A.
• Automatic switch over to stand-by battery when AC fails.
• Transfer to stand-by battery power is instantaneous with no interruption.
• (Batteries are sold separately).

Supervision

• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
• Battery fail & presence supervision (form "C" contacts).
• Low power shutdown. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge.

Fire Alarm Disconnect

• Supervised Fire Alarm disconnect (latching or non-latching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.

Electrical

Temperature:

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity: 85% +/- 5%.

BTU/Hr. (approx.):

• 12VDC: 37 BTU/Hr.
• 24VDC: 74 BTU/Hr.
• System AC input VA requirement: 420VA.

Visual Indicators

• Green AC Power LED indicates 120VAC present.
• AC input and DC output LED indicators.

Additional Features

• Short circuit and overload protection.

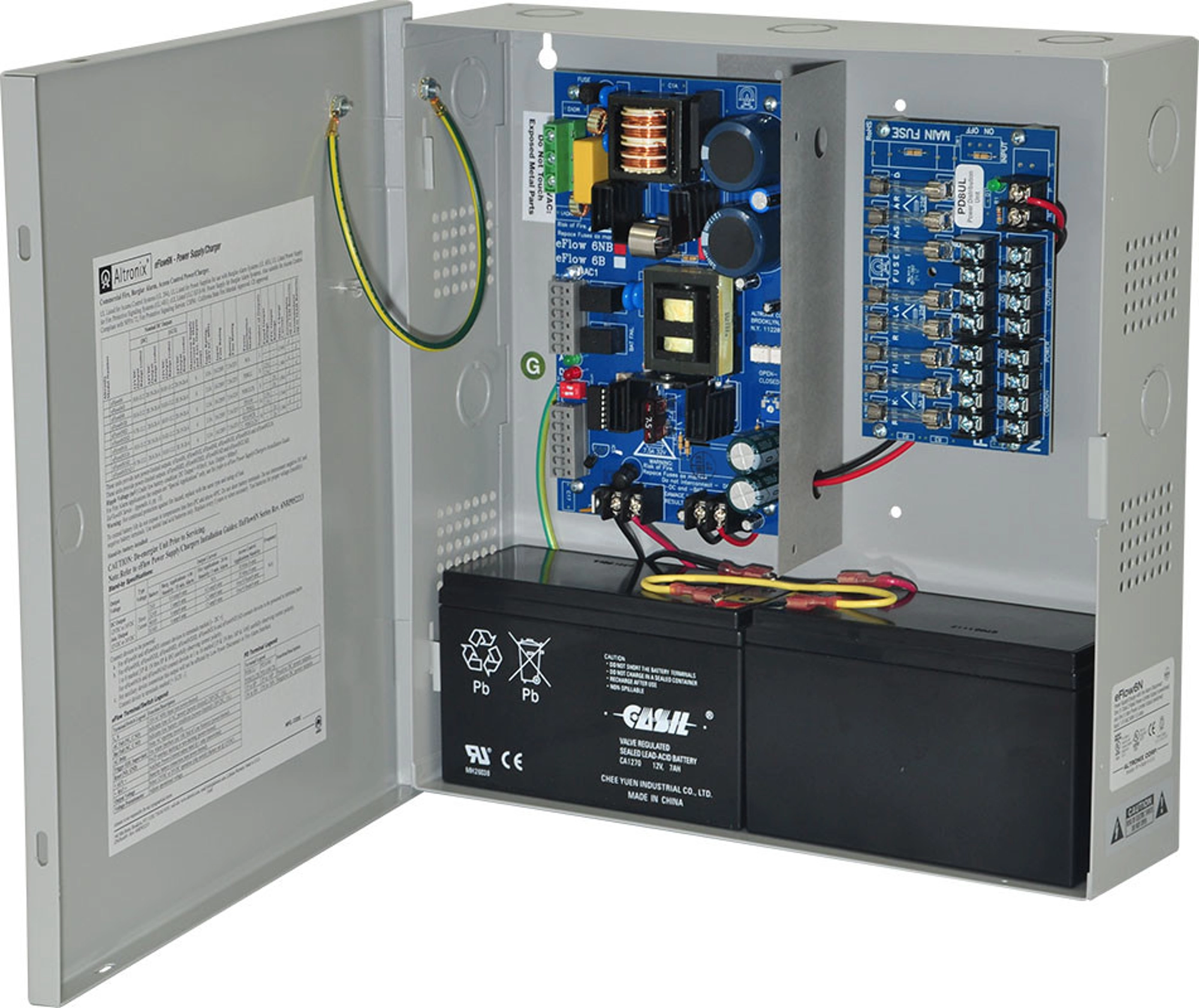

• Unit is complete with power supply, enclosure, battery leads and cam lock.
