Altronix SMP7PM

1-Output Supervised Power Supply Charger Board 12/24VDC 6A

SMP7PM

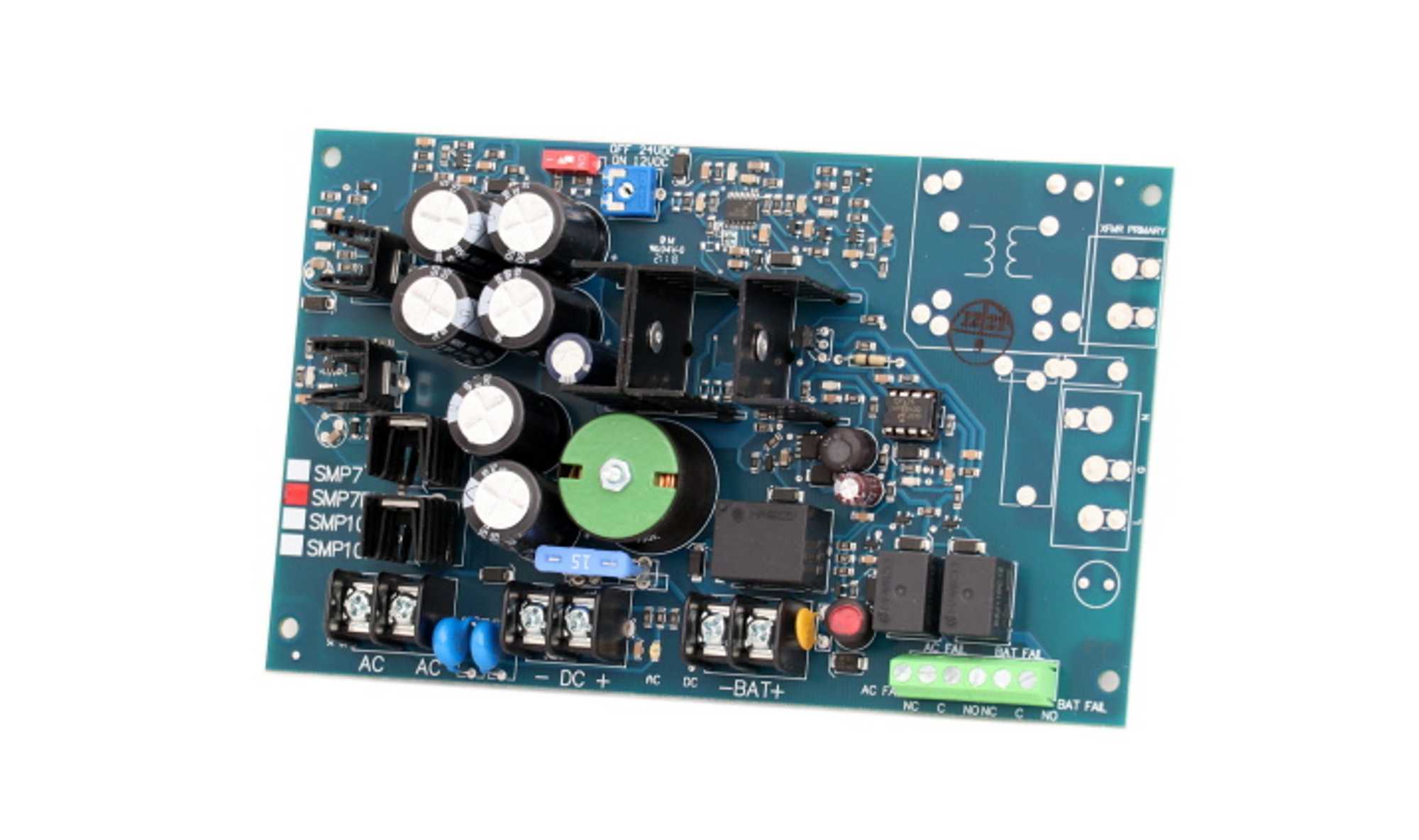

SMP7PM supervised power supply/charger converts a low voltage AC input into a 12VDC or 24VDC output. This unit has a wide range of applications for access control, security and CCTV system accessories that require additional power.

.

Input

• Input 28VAC.

Output

• 12VDC or 24VDC selectable output.
• 6A supply current.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.

Battery Charging

• Built-in charger for sealed lead acid or gel type batteries.
• Maximum charge current 0.7A.
• Zero voltage drop when switching over to battery backup.
• (Batteries are sold separately).

Supervision

• AC fail supervision (form "C" contacts).
• Battery presence and low battery supervision (form "C" contacts).

Visual Indicators

• AC input and DC output LED indicators.

Electrical

Temperature:

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity: 85% +/- 5%.

BTU/Hr. (approx.):

• 12VDC: 37 BTU/Hr.
• 24VDC: 75 BTU/Hr.
• System AC input VA requirement: 184VA.

.

• Cutsheet
