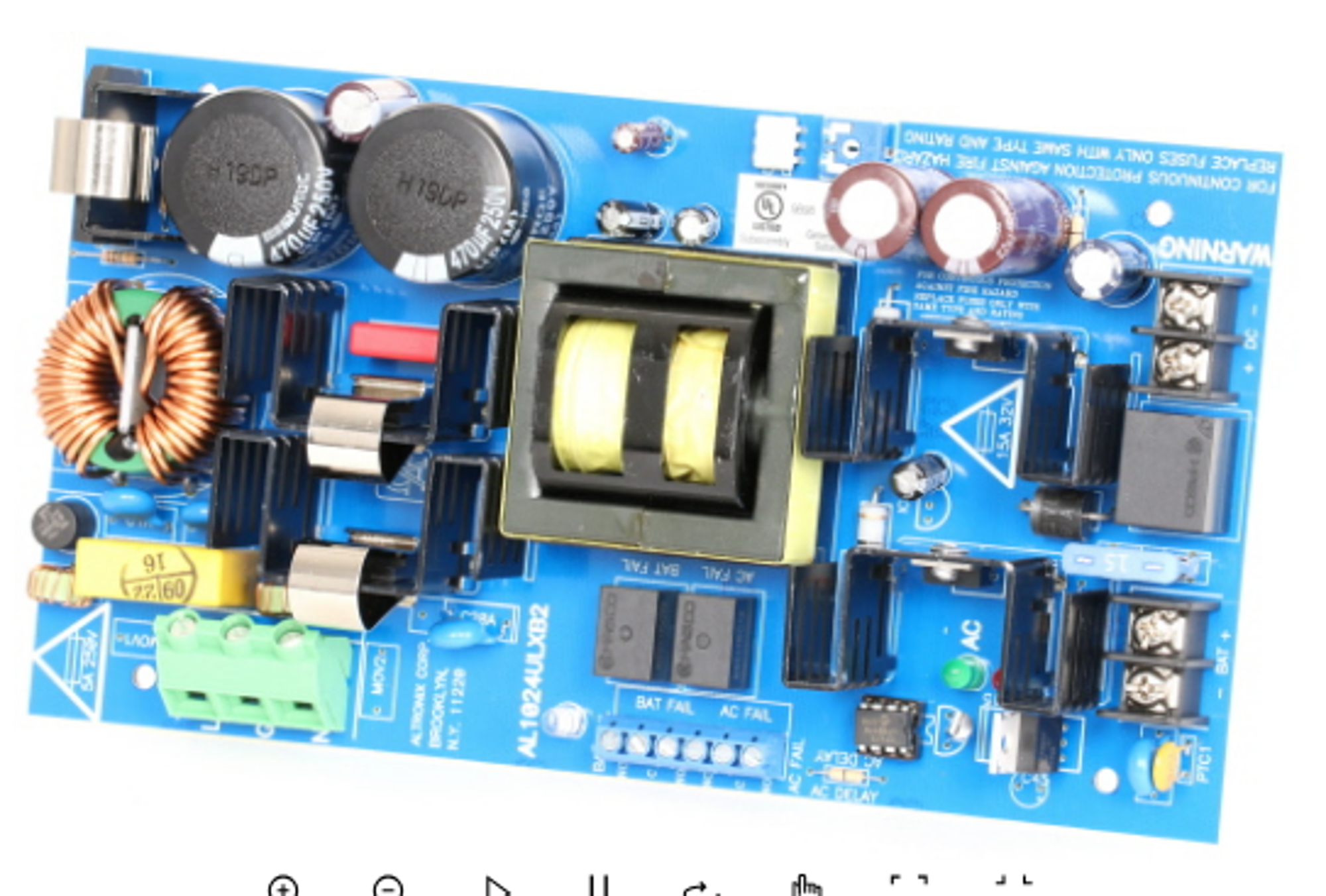

Altronix AL1024ULXB2

Power Supply Charger, Single Fused Output, 24VDC @ 10A, 115VAC, Board

AL1024ULXB2

Altronix AL1024ULXB2 UL Listed Sub-Assembly power supply/charger converts 115VAC, 60Hz input into a single 24VDC non power-limited output. It also offers a suite of features that includes AC fail supervision, battery presence, and low battery supervision.

Input

• Input 115VAC / 60Hz, 4.2A.

Output

• 24VDC output (UL 1481).
• 8A continuous supply current with 10A supply current during alarm (UL 1481).
• 24VDC @ 10A (UL 294).
• Filtered and electronically regulated output.
• Maximum Ripple: 250mV P/P.
• Short circuit and thermal overload protection.

Battery Charging

• Type: Sealed lead acid or gel type
• Fuse Rating: 15A/32V
• Failover Upon AC loss, instantaneous
• (Batteries are sold separately).

Supervision

• AC fail supervision (form "C" contacts).
• Low battery and battery presence supervision (form "C" contacts).

Indicators (LED)

• Input: 115VAC is present
• DC Output: Powered

Electrical

Temperature:

• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity: 85% +/- 5%.
• BTU/Hr. (approx.): 123 BTU/Hr.
