Altelix NP171409VPFA1C
SKU: ALX-NP171409VPFA1C
MPN: NP171409VPFA1C
Description

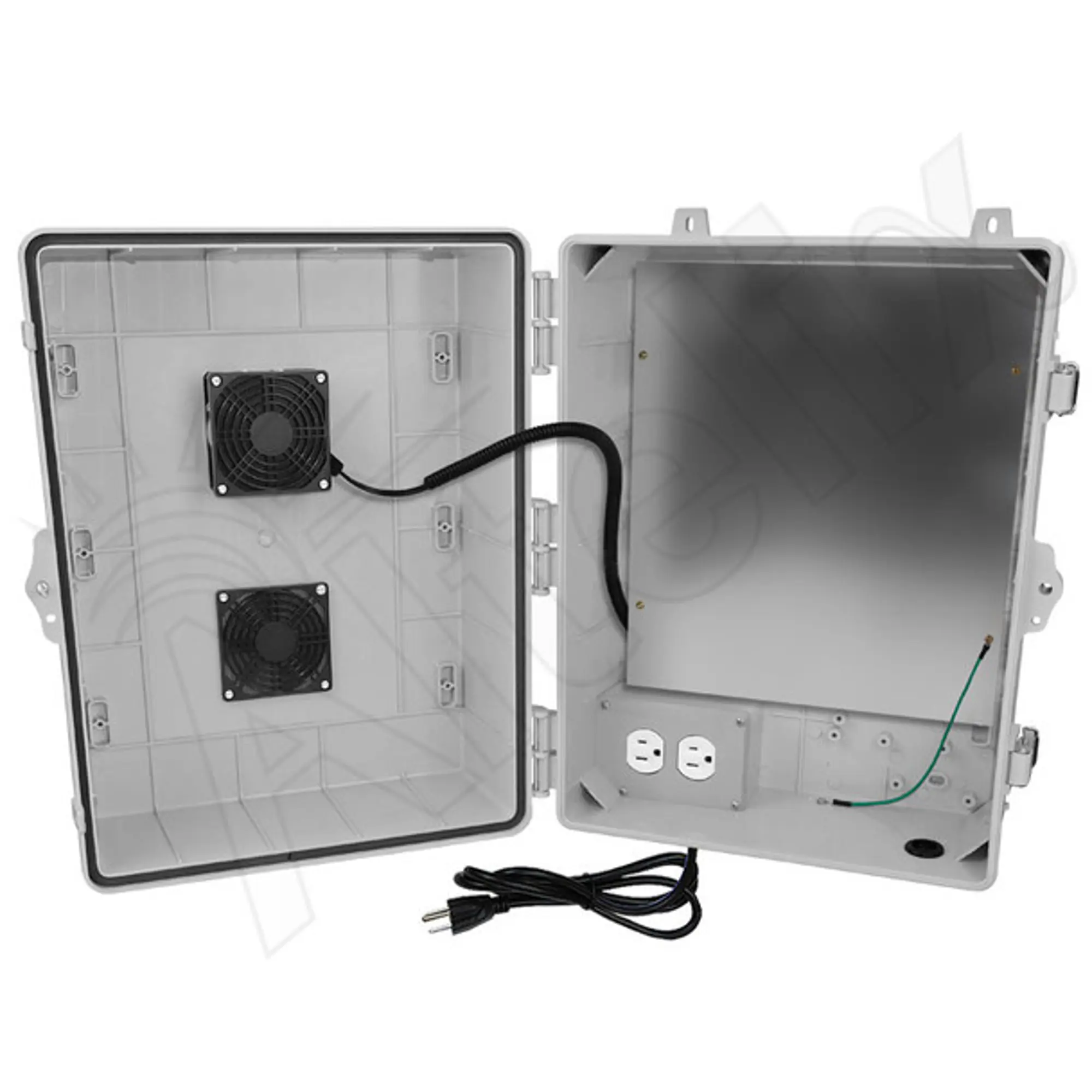

Enclosure 17x14x9 Polycarbonate + ABS Vented with Aluminum Equipment Mounting Plate, Cooling Fan, 120 VAC Outlets & Power Cord
Send to a friend!
SKU: ALX-NP171409VPFA1C
MPN: NP171409VPFA1C
Enclosure 17x14x9 Polycarbonate + ABS Vented with Aluminum Equipment Mounting Plate, Cooling Fan, 120 VAC Outlets & Power Cord
Send to a friend!
NP171409VPFA1C
The Altelix NP171409VPFA1C NEMA enclosure is simple to install because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet.
Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be removed and the power receptacle hard-wired by a qualified installer.
Available with (2) or (4) 120VAC Power Outlets
This enclosure is available with either (2) or (4) internal pre-wired 120VAC power outlets used to provide power to installed equipment. Mounted to the bottom of the enclosure they do not interfere with area used for installing equipment.
Increased Interior Space
This enclosure features an extra deep gasketed lid, over 4 inches deep. With the generous size of this enclosure and extended lid the NP171409VPFA1C can accommodate a wide range of equipment.
Cooling Fan Ventilation
The NP171409VPFA1C features dual vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlets leaving them available for internal equipment use. Rain shrouds on the front door keep rain water from entering the enclosure.
Aluminum Equipment Mounting Plate
Included with this enclosure is a 1.5mm thick aluminum plate for mounting and securing equipment. The plate can be easily drilled and modified by the installer to suit unique site requirements.
Note: this enclosure is also available with a non-metallic PVC equipment mounting plate (see NP171409VMFA1C) and without an equipment mounting plate (see NP171409VFA1C).
Secure Your Equipment
These NP series enclosures feature dual stainless steel quick release latches. A stainless steel security screw with keys and a provision for a padlock are also provided.
Polycarbonate + ABS Protection Built to Last
This enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. This enclosure can be easily drilled and modified by the installer to suit unique site requirements.
Complete with Cable Grommets and Wire Management Accessories
This enclosure includes an assortment of cable grommets and cable glands that can be installed in the knock-out holes for a weather resistant seal. Also included in the accessory kit are wall anchors, zip ties, wire management loops, hook-n-loop tape, ground wire, (2) door locking keys and more.
Multiple Mounting Options
This enclosure features (4) external mounting feet which can be used for wall mounting or with our optional pole mounting kit. Mounting points are also provided inside the enclosure. These can be easily drilled out and used for applications requiring a more secure installation.
Customization
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
