NMHS-500-16

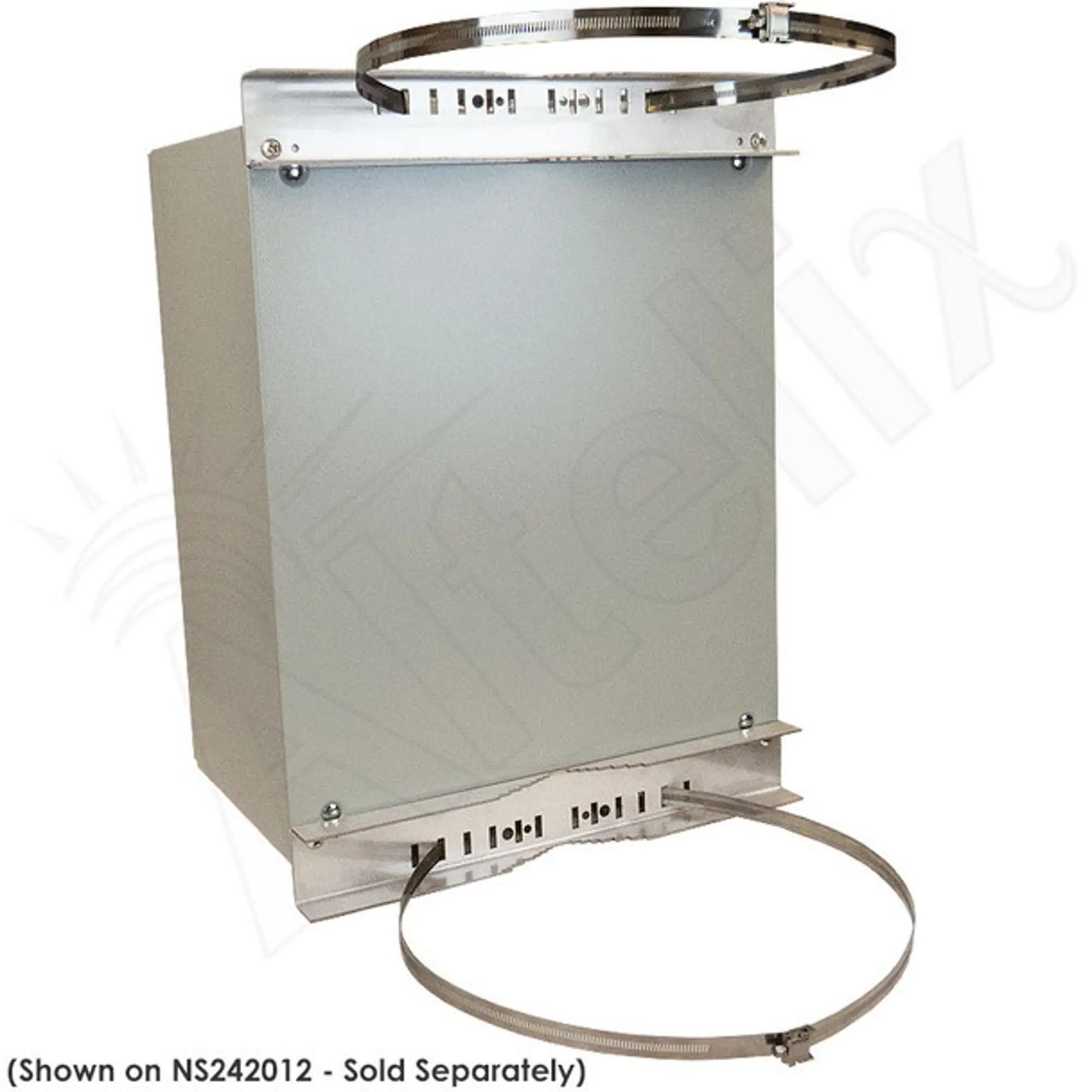

The Altelix NMHS-500-16 Pole Mount Kit attaches to the rear of the Altelix NF162012, NFC242009 and NS242012 series NEMA enclosures. These heavy-duty galvanized steel brackets allow the enclosures to be mounted to poles 1.7 to 16 inches (44.4 to 406.4mm) in diameter using the included heavy duty 304 stainless steel adjustable bands. The mounting bracket features multiple locations to thread the stainless steel bands so that small to large poles can be accommodated.
Heavy-Duty Construction
The NMHS series pole mounts kits are designed for rugged all weather installations. The (2) included mounting brackets are constructed from 14 gauge (0.08 inch thick) galvanized steel. To mount to the pole this kit includes (2) heavy duty 19 gauge 304 stainless steel adjustable bands. 40% wider then standard adjustable bands, these 0.7 inch (18mm) wide bands feature a heavy-duty European worm gear design which is stronger than standard hose clamp gears.
The NMHS-500-16 kit includes:
The NMHS-500-16 is for use with the following enclosures:
