Alarm Controls KP-300

Name: Pioneer Music Company
Address: United States
Telephone: 8003620315

SKU: ALC-KP-300

MPN: KP-300

Description

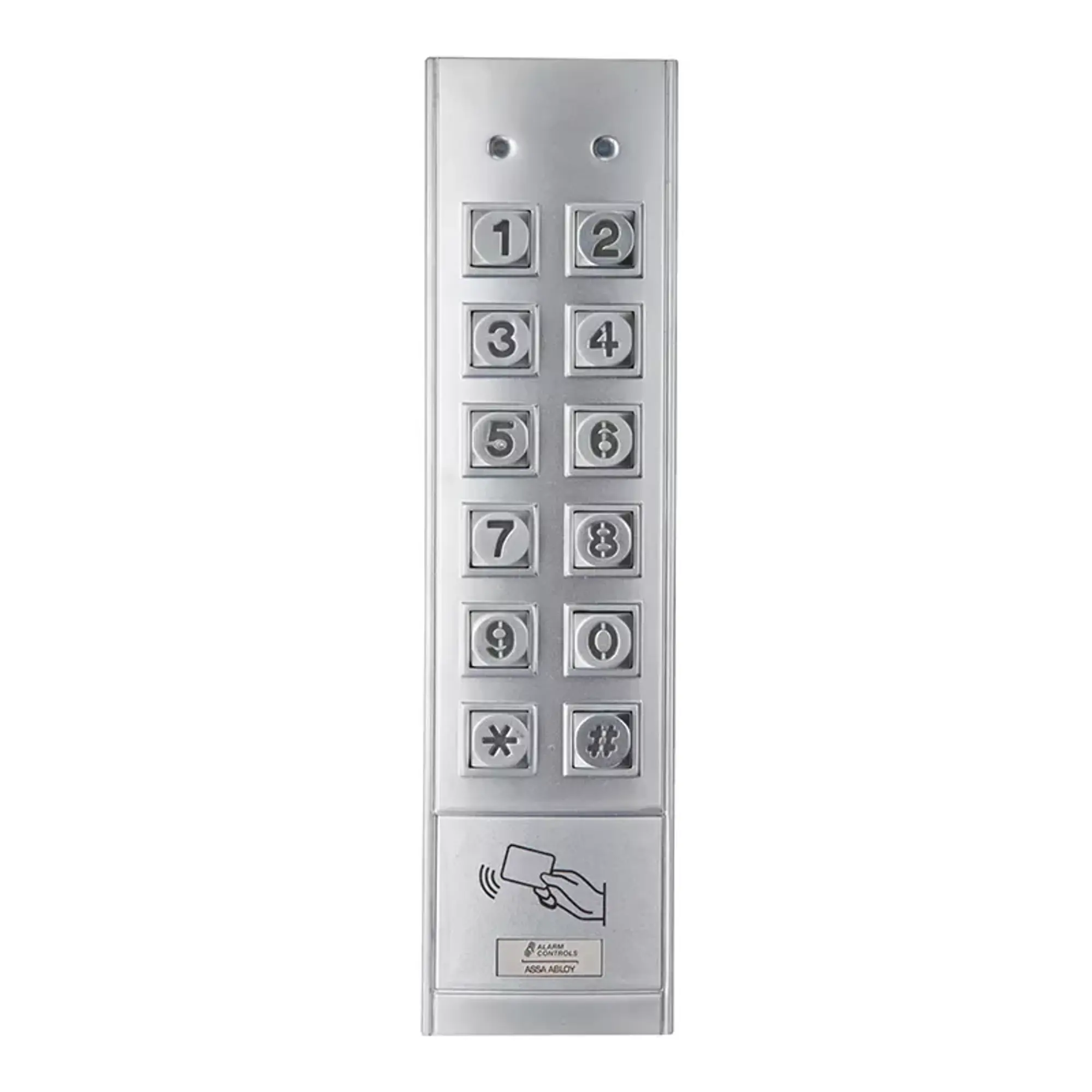

Mullion Mount weather resistant keypad with built-in card reader

Send to a friend!

Input Operating Current : 60mA at rest; 95 mA active
Input Operating Voltage : 12 VDC nominal, 11-15 VDC
Contact Action : N/O and N/C dry contacts
Outputs : Output Relay 1: SPDT rated 2A at 24 VDC max Output Relay 2: SPDT rated 1A at 24 VDC max

Narrow stile mullion mount with die cast zinc alloy housing
10-digit operation (10 digits plus * and # keys)
Operates with card only, user code and card, or user code only
Multiple outputs allow control of up to two devices (1000 users on output 1, 100 on output 2)
All users can be programmed for card and/or codes at the device
50 Visitor cards and/or codes can be programmed for one time use or with time limit at the device
Programmable passage and false-code lockout mode capabilities
Built-in tamper switch
Green and yellow LEDs for status and programming feedback
Fail safe or fail secure capable
Die-cast metal keys with audible and visible key press; Keys are backlit for visibility in dark areas
For indoor or outdoor applications
