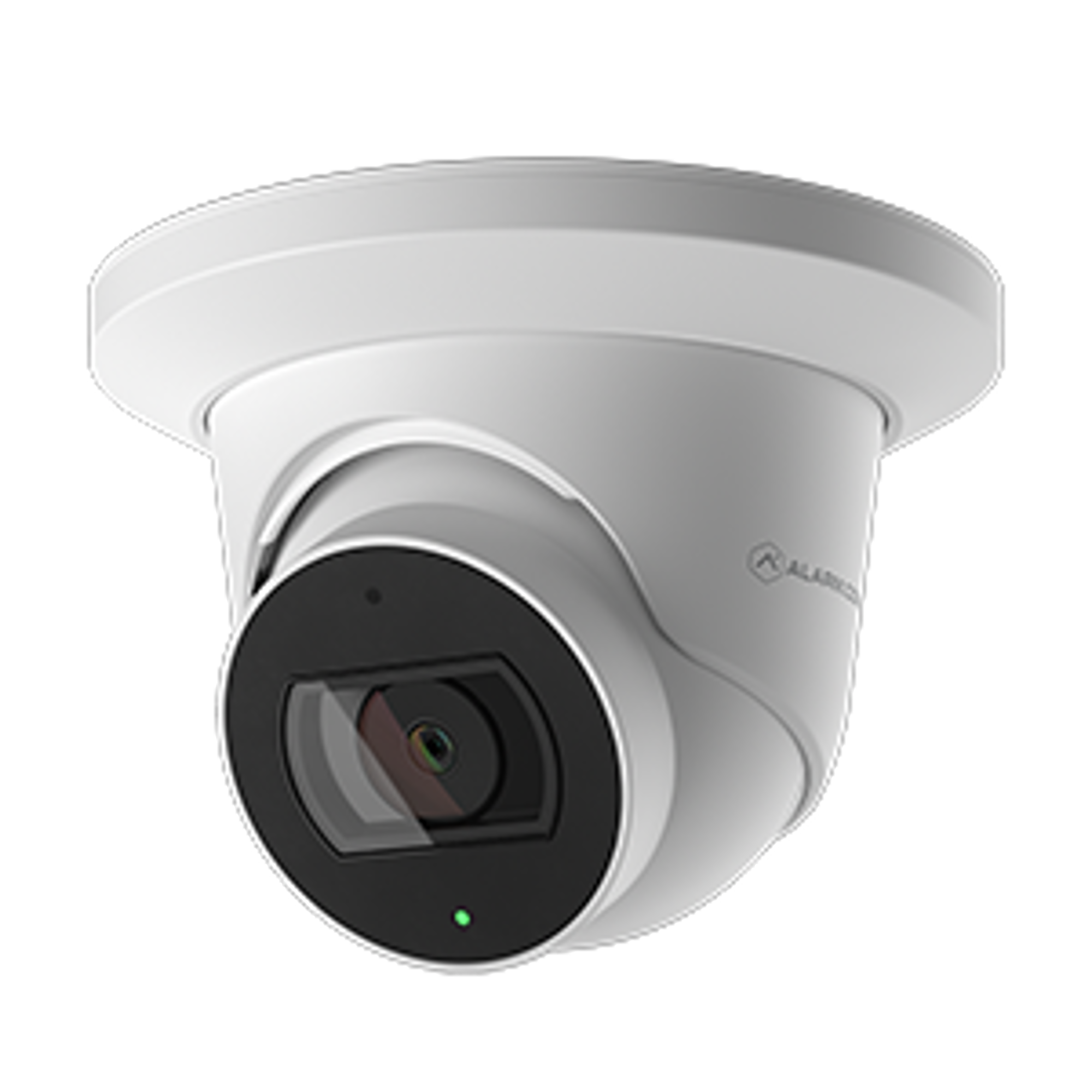

Alarm.com ADC-VC838PF

4MP Varifocal Indoor/Outdoor IP Turret Camera

ADC-VC838PF

The VC838PF is a PoE turret camera with a motorized varifocal lens, offering greater installation flexibility in indoor and outdoor environments and allowing users to remotely widen and narrow the cameras field of view without any loss of quality. As part of the commercial Pro Series line, the camera enables intelligent analytics for object detection and business activity tracking. In addition to cloud clip storage, the VC838PF supports 24/7 recording to an optional onboard microSD card and/or the Commercial-Grade Stream Video Recorder.

Business Activity Analytics

Occupancy + People Counting

Measure occupancy and foot traffic. Receive a notification when real-time occupancy reaches a specified threshold.

People Counting

Measure foot traffic through a certain area. Count how many people cross a virtual line in one direction.

Queue Monitoring

Monitor people waiting in line. Receive a notification when the number of people in line or average wait time reaches a specified threshold.

Crowd Gathering

Monitor large groups. Receive a notification when the crowd size reaches a specified threshold.

Heat Mapping

Visualize where people spend the most time within an area during a specified date and time range using a heat map.

Onboard Recording with Smart View

Record encrypted, 24/7 HD footage locally on the camera with a microSD card. View live and recorded video on the Alarm.com website and mobile app from anywhere, using the SmartView video timeline to search for important events such as person detected or door accessed, and jump straight to the corresponding footage.

• Supported Resolutions: 2688 x 1520*, 1920 x 1080, 1280 x 720, 640 x 360
• Local Recording: SVR and Onboard Recording
• Image Sensor: 1/2.7" progressive scan CMOS
• Lens & Field of View: 3.2mm (W) - 9.8 mm (T), F1.8 - F3.3, 116° - 34°
• Iris: P-iris
• Remote Varifocal Control: Focal length, manual focus adjustment, autofocus
• Low-light Sensitivity: 0 lux with IR
• IR Range: Up to ~95' (30m)
• Image Adjustments: Flip, Brightness, Contrast, Saturation, Sharpness, Exposure
• Ethernet Connection: 10/100 Mbps RJ-45
• Operating Temperature: -22 - 122 (-30 - +50)
• Operating Humidity: 20% - 100% non-condensing RH
• Power: 12VDC ± 10% or PoE (802.3af)
• Dimensions: (DxH): 5.4" x 3.8" (13.8cm x 9.7cm)
• Weight: 13.3 oz. (376.5g)
• Ingress Protection: IP66
• Compliance: FCC, IC, C-Tick, CE Class B, UL, RoHS, WEEE

• 4 MP WDR and HDR video
• Business Activity Analytics
• Onboard Recording with Smart View
• Video Analytics with Object Detection
• Power over Ethernet
• IR night vision
• IP66-rated waterproof & dust-tight

• Cutsheet
