Alarm.com ADC-CSVR2008P-0x0TB

8-Channel Commercial Stream Video Recorder 8 PoE

ADC-CSVR2008P-0X0TB

Alarm.com Commercial Video is a powerful, easy-to-use solution for commercial properties that integrates with the Alarm.com for Business platform. As part of the platform, recorded video is automatically tagged with important events, like a door being accessed or an alarm activation. This allows you to quickly jump to footage of the event using the Alarm.com mobile app or websiteanytime, anywhere.

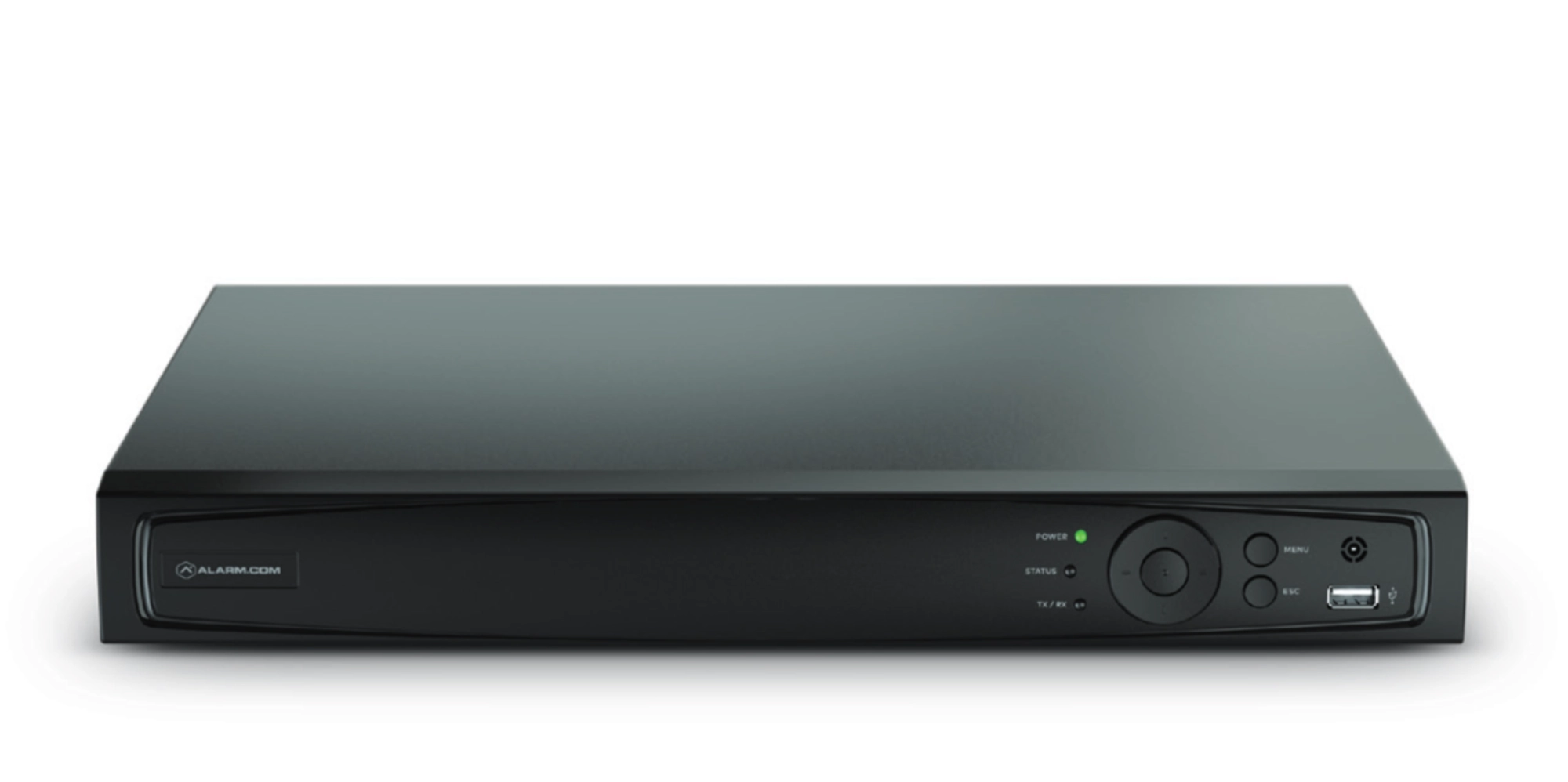

The CSVR2008P Pro Series Commercial SVR is a cloud-managed storage solution for 24/7 local video recording. Continuously record up to 16 camera streams at up to 4MP resolution when using Alarm.com Pro Series cameras. The CSVR2008P offers a built-in PoE switch to power and connect Alarm.com PoE cameras.

• Recording Channels: Up to 16 cameras
• Video Input: 16 channels @ up to 4MP (2688 x 1520)
• Local Display Capabilities: Live View, Playback, Clip Export, Archive Export
• Local Display Output: 2x HD Out, up to 3840 x 2160
• Local Clip Export: 1x USB 3.0 (front), 2x USB 3.0 (rear)
• Internal Storage: Up to 2x 3.5" HDD, SATA 6 Gb/s, up to 16TB each
• Dimensions (WxDxH): 14.4" x 12.5" x 1.9" (36.6cm x 31.6cm x 4.8cm)
• Operating Temperature: 32 - 104 (0 - +40)
• Compliance: FCC Class A, IC, CE, UL Listed
• Included Accessories: AC power adapter, Ethernet cable, Rack mount ears, and Hardware
• Requirements: Power: Standard Electrical Outlet ; Network: Ethernet connection to broadband internet
• PoE Power Budget: 120 W
• Max Power Consumption: 200 W
• Ethernet Connectivity: 1x Client RJ45 10/100/1000 Mbps, 8x Camera PoE 802.3af RF45 10/100 Mbps
• Max Weight: 8.7 lbs (3.9 kg)
• Available 802.3af PoE RJ45 Ports for Cameras: 8

• Simplified networking with dedicated camera PoE ports
• Local storage on one hard drive (1x3TB=3TB total hard drive storage)
• Rack-compatible (1U) industrial design
• Outputs for up to 2 4K monitors
• USB 3.0 outputs for fast video clip export
