Alarm.com ADC-AC-X1100-4PSE

Name: Pioneer Music Company
Address: United States
Telephone: 8003620315

SKU: ADC-ADC-AC-X1100-4PSE

MPN: ADC-AC-X1100-4PSE

Description

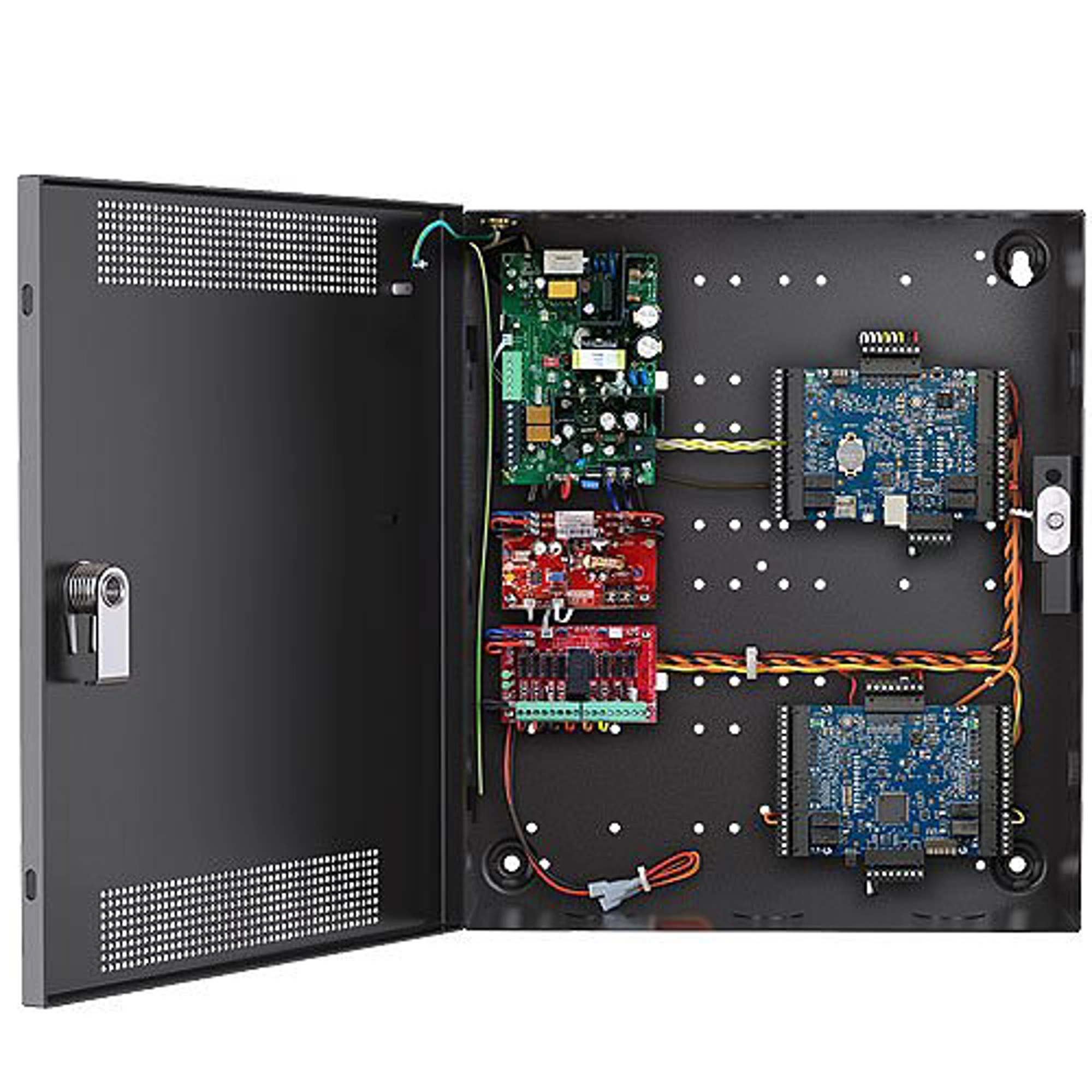

HID Aero X1100 Four Door Controller & Power Kit

Send to a friend!

Controller specifications The interface is for use in low-voltage, Class 2 circuits only, The installation of this device must comply with all local fire and electrical codes
Input power 12 to 24 VDC ±10%, 1.9 A max (Controller); 12 to 24 VDC ±10%, 1.5 A max (Expansion Module)
Output power 12 VDC ±10%, 500 mA max each reader
Communication Shielded 2-wire RS-485
Inputs per device Two dedicated reader inputs Four programmable inputs One dedicated input for each of the following: Tamper, AC Fail, and Battery Fail
Outputs per device Four relay outputs 5 A (NO) and 3 A (NC) @ 30 VDC, Two-wire LED control, Single-wire buzzer output
Certifications -FCC, CE, UL 294 Certified (Controller); UL 294 recognized, CE compliant, FCC Class A, ICES-003 (Expansion Module)
Dimensions (W x L x H) 6.46 5.51 1.02 (16.4 14.0 2.6 cm)
Temperature 32°F to 158°F (0°C to 70°C) Operational, -67°F to 185°F (-55°C to 85°C): Storage
Operating humidity 5% to 85% (non condensing) RH
Kit specifications:
Dimensions 20 16 4.5 (50.8 40.64 11.43 cm)
Weight 20 lbs. (9.1 kg)
Input voltage 120 / 208 / 230 VAC 50/60 Hz
Main outputs 2 A 12 VDC, 2 A 24 VDC
Auxiliary output 1.5 A Class II power limited
F8P distributed outputs 2 A Class II power limited
Battery charge current 0.7 or 1.60 A Selectable
System BTU/hour 34 12 V, 41 24 V
Efficiency 85% 120 VAC 60 Hz in, full load
Certifications UL294, UL603, UL1076, ULC S318, S319, CSA C22.2#107.1, CSA 22.2 #60950, RoHS Lead-free, CE Approved
Operating temperature -4
