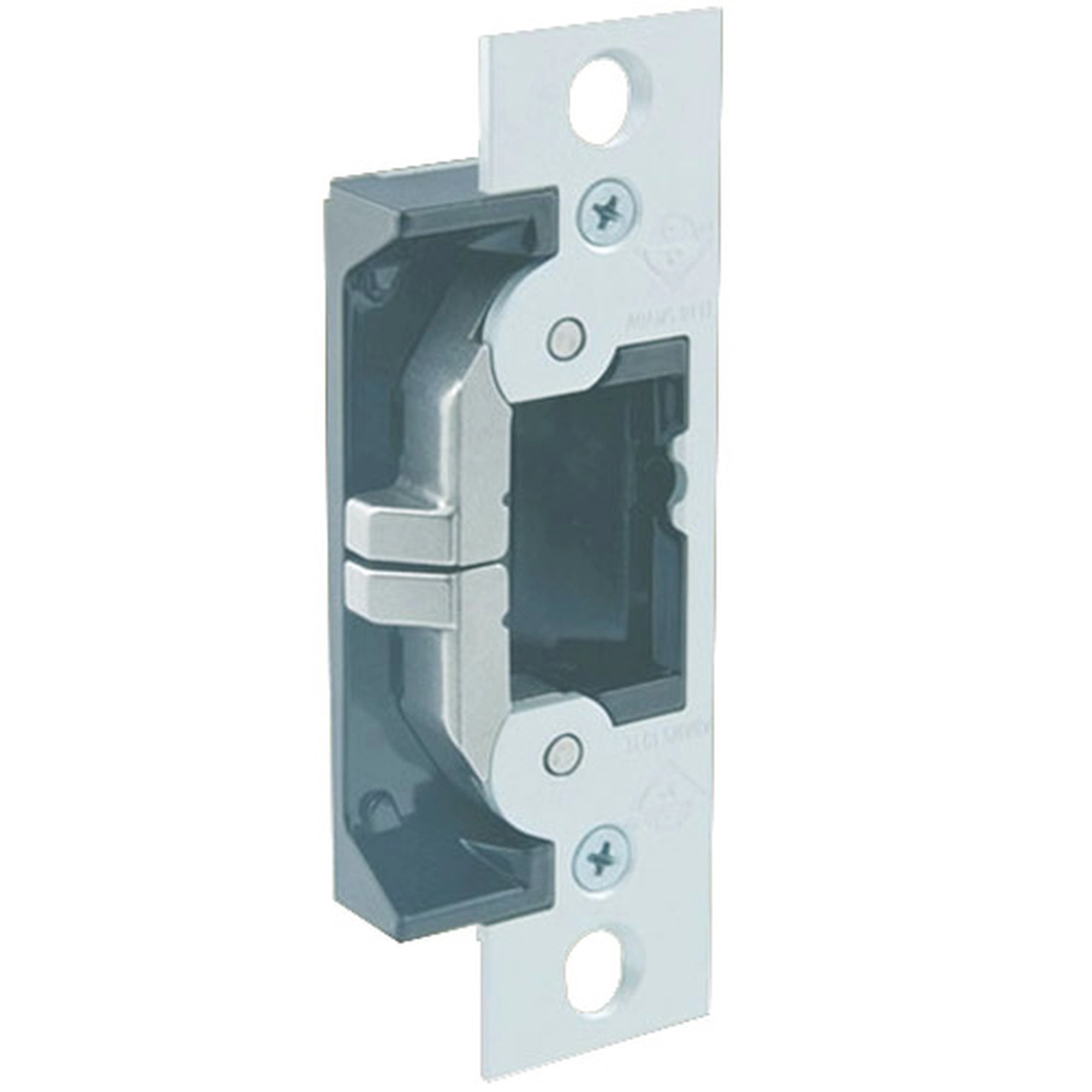

Adams Rite 7440-628

Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. For use in aluminum, hollow metal, or wood applications. Open electrically under 25 lbs [11.3 kg] of preload. Preload is pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes. Function: This non-handed strike features an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. The strike releases electrically with up to 25 lbs of door preload. Single solenoid operates on 12/16/24 VDC power. Remote electrical control of narrow stile aluminum doors equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.

Flat Faceplate, 628 Clear Anodized

UltraLine® 7400 SeriesElectric Strikes for Adams Rite Deadlatches, Cylindrical Locks

Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. For use in aluminum, hollow metal, or wood applications.

Open electrically under 25 lbs [11.3 kg] of preload. Preload is pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes.

Function

This non-handed strike features an ultra-compact design and adjustable stainless steel keepers with over 1,500 lbs [680.4 kg] of holding force in fail secure mode. The strike releases electrically with up to 25 lbs of door preload. Single solenoid operates on 12/16/24 VDC power.

Remote electrical control of narrow stile aluminum doors equipped with an Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical lockset with 1/2" [12.7 mm] to 5/8" [15.9 mm] latchbolt projection. Electrical actuation unlocks the keeper, releasing the latchbolt so the door may be opened without operating the latch itself.

Certifications:

• ANSI/BHMA A156.31 Electric Strikes and Frame Mounted Actuators, Grade 1

Features: Case:

• 1-13/32" x 3-3/8" x 1-1/16" deep
• [35.7 mm x 85.7 mm x 27 mm deep]

Strike Lip:

• Basic 7400 strike has lip of proper length for 1-3/4" [44.5 mm] thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this standard relationship, lip extension kits are available.
• Lip extension kits not available on 7401, 743

Strike Opening:

• 5/8" adjustable x 1-7/16" x 1/2" deep [15.9 mm adjustable x 36.5 mm x 12.7 mm deep]. Bolt retaining keeper is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical locksets.

Latchbolt Projection:

• 1/2" to 5/8"
• [12.7 mm to 15.9 mm]

Preload:

• 7400 Series Electric Strikes open electrically under 25 lbs [11.3 kg] of preload. Preload is pressure exerted on doors by air conditioning systems, warping or misaligned hardware which can disable common electric strikes.
• Using jaw inserts of various sizes, the Ultraline 7400 Series electric strikes are adjustable to compensate for door and frame related preload and security problems.

Faceplate:

• Available in a variety of architectural finishes.

Standard Package:

• Individually boxed with mounting screws, mounting tabs, adhesive shims to accommodate jamb or stile extrusion thickness greater or less than nominal 1/8" [3.2 mm], an adjustable keeper shim pack and two plug-in voltage adapters for 12/24 VDC.

Shipping Weight:

• 2 lbs [0.91 kg].

Electrical: Voltage:

• Field selectable to match power source of 12/24 VDC. VA7400-16VDC voltage adapter required when using 16 VDC power, available separately. Equipped with a quick connect plug-in type connector.

Current Draw:

• .44A at 12 VDC
• .46A at 16 VDC*
• .23A at 24 VDC
• *Requires 16 DC adapter (P/N VA7400-16VDC)

Fail Safe | Fail Secure:

• Field selectable fail safe/fail secure

ANSI GradeGrade 1 FinishUS28 Satin Anodized Aluminum Locking StateSelectable Fs Or Fse Frame MaterialWood Or Hollow Metal Product TypeCylindrical Or Narrow Stile Mortise Latch Sales CategoryElectric Strike Max Latch Length - InchMaximum 5/8 Inch Throw Voltage and Duty INTSelectable 12/24V Ac/Dc Int MountingFor Centerline Installations Pull Strength - Lbs2001 - 3000 Lbs. Warranty3 Year Limited ULUl Burglary Resistance Voltage and Duty CONTSelectable 12/24V Dc UNSPSC Code31162407 Product LineUltraLine Product NameUltraLine 7400 Electric Strike Brand NameAdams Rite Manufacturer Part Number7440-628 Product Model7440 Product Series7400 Compatible Door Frame TypeAluminum, Metal, Wood Holding Strength1500.03 lb Security ConfigurationFail Safe, Fail Secure Door HandlingNon Handed Holding Strength (g)680400 Product MaterialStainless Steel ColorClear Anodized Input Current (A)0.23, 0.44, 0.46

• This 7440 Electric Strikes are Designed for Adams Rite Deadlatches or Cylindrical Locksets with 1/2 Inch to 5/8 Inch Latchbolt Projection
• Electrical Actuation Unlocks Strike Jaw, Releasing Latchbolt So Door Can be Opened without Operating Latch Itself
• Field Selectable at Time of Installation
• Basic 7400 Strike has Lip of Proper Length for 1-3/4 Inch Thick Door that Closes Flush with Jamb Edge
• This Non-Handed Strike Features an Ultra-Compact Design and an Adjustable Stainless Steel Split-Jaw with Over 1500 Pound of Holding Force in Fail-Secure Mode
• The Strike Releases Electrically with up to 30 Pound of Door Preload
• Strikes are Equipped with a Quick Connect Plug-In Type Connector
• Ultraline Electric Strike
• Fail-Safe/Fail-Secure: Field selectable at time of installation
• Case: Approximately 1 x 3-3/8 x 1-1/16 deep
• For Steel and Wood Door jambs
• For Adams Rite Deadlatches or Cylindrical Locksets with 1/2" to 5/8" Latchbolt Projection
• Strike Lip: Basic 7400 electric strike has lip of proper length for 1-3/4 thick door that closes flush with jamb edge. Where door thickness or jamb shape differs from this configuration, lip extension kits are available. Not available on 7401
• Strike Opening: 5/8 adjustable x 1-7/16 x 1/2 deep. Bolt retainer jaw is stainless steel. Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical latches
• Opens Electrically Under 35Lbs. Of Preload
• Warranted Free From Defects In Workmanship And Materials Under Normal Use And Service
• Faceplate: Measures 1-1/4 x 4-7/8. 7400 has flat faceplate; 7401 is radiused to match nose on inactive leaf in a pair of aluminum stile glass doors. Available in a wide range of architectural finishes
• Voltage: Field selectable to match power source of 12, 16, or 24 VDC
• 16 DC requires adapter (P/N VA 7400-16VDC)
• 4603 Rectifier is required to convert low voltage AC current to DC current of same voltage. Please contact factory when using in AC mode
• Basic 7400 strike has lip of proper length for 1-3/4" [44.5 mm] thick door that closes flush with jamb edge.
• Bolt retaining keeper is stainless steel
• Strike accepts bolt of Adams Rite 4500, 4700 (discontinued), or 4900 Deadlatch or cylindrical locksets.
