SKU: TXL-VX-5M20-B-RIAW-C128
MPN: VX-5M20-B-RIAW-C128

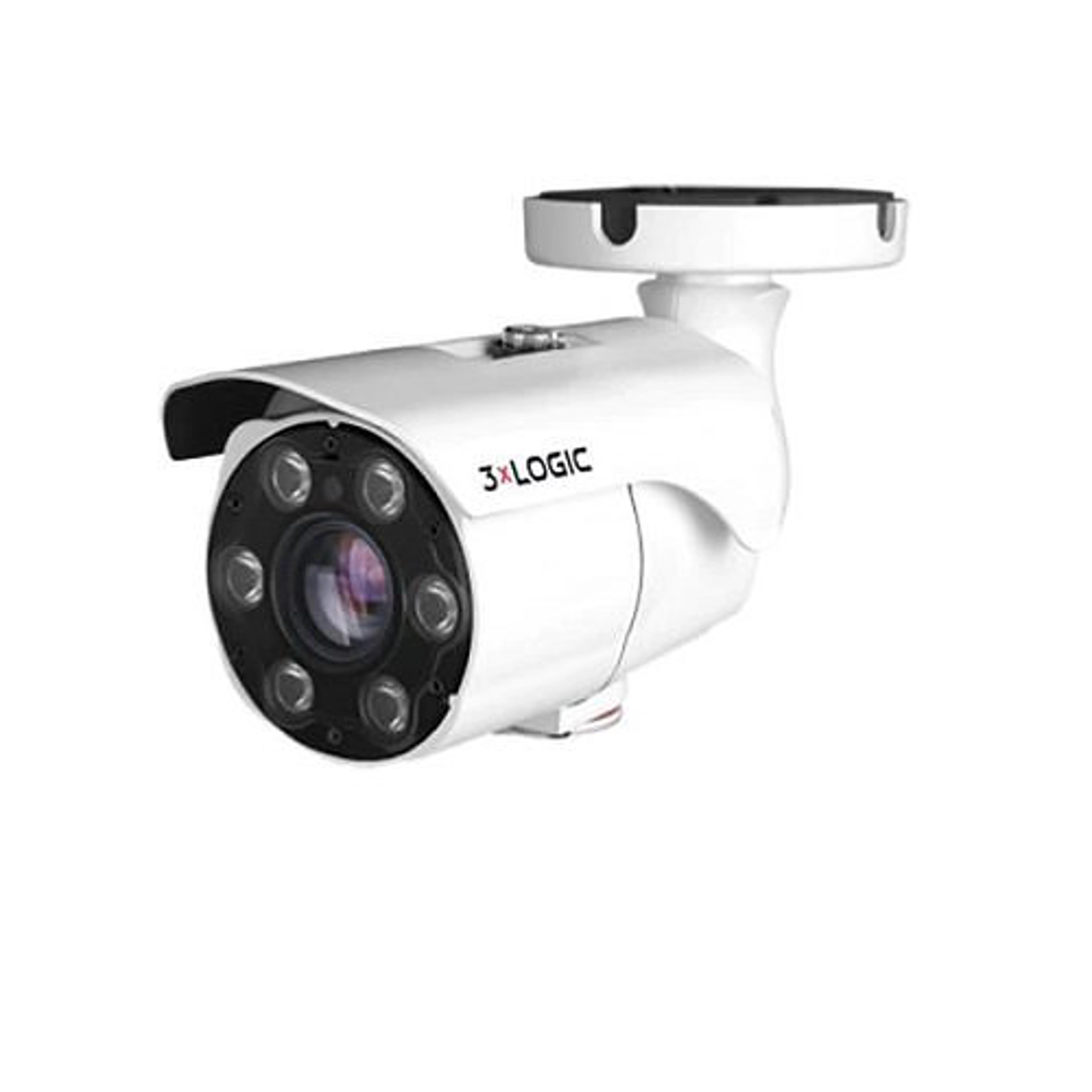

VISIX 5MP Outdoor Bullet with Remote Focus (6-50mm), IR, Audio and Alarm I/O. IP67/IK9 rated. VIGIL Cloud enabled with 128GB SD card.
Send to a friend!
| Night Vision Distance | 164.04 ft | Night Vision Distance (mm) | 50000 | Wide Dynamic Range | Yes |
| Color Supported | Color | Effective Camera Resolution (Pixel) | 5000000 | Maximum Video Resolution | 2592 x 1944 | Minimum Illumination (lux) | 0 |
| Maximum Operating Temperature | 122°F (50°C) | Maximum Operating Temperature (°F) | 122 | Minimum Operating Temperature | -40°F (-40°C) | Minimum Operating Temperature (°F) | -40 | Operating Humidity | 90% |
| Longest Shutter Speed | 1/15 Second | Minimum Illumination | 0 lux | Shortest Shutter Speed | 1/32000 Second |
| Brand Name | 3xLOGIC | Manufacturer | 3xLOGIC Inc. | Manufacturer Part Number | VX-5M20-B-RIAW-C128 | NDAA Compliant | Yes | Product Line | VISIX | Product Model | VX-5M20-B-RIAW-C128 | Product Name | Visix VX-5M20-B-RIAW-C128 Network Camera | Product Type | Network Camera | Weight (Approximate) (g) | 900 |
| Network (RJ-45) | Yes |
| Focal Length | 50 mm | Lens Included | Yes | Maximum Focal Length | 50 mm |
| Features | Alarm Triggering, Audio Compression, Built-in IR LED, Day/Night, HTTPS Encryption, Motion Detection, Wide Dynamic Range | Impact Protection Rating | IK09 | Indoor/Outdoor | Outdoor | Ingress Protection Rating | IP67 | Package Contents |
|
| Remote Management | Yes |
| Color | White | Color Family | White | Depth | 9.7" | Depth (mm) | 247.2 | Durability | Impact Resistant, Vandal Resistant, Weather Resistant | Form Factor | Bullet | Height | 3.8" | Height (mm) | 96.7 | Product Color | White | Weight (Approximate) | 1.98 lb |
| Input Voltage | 12V DC | Input Voltage (V DC) | 12 |
| Mount Type | Junction Box Mount, Pole Mount |
| Minimum Focal Length (mm) | 6 |
| Recording Formats | HD | Storage Type | Memory Card |
| Connectivity Technology | Wired | Effective Camera Resolution | 5MP | Field of View | D:52.4°~7.6°, H:44.8°~6.7°, V:24.3°~3.8° | HD Recording | Yes | Lens Type | Varifocal | Maximum Aperture | f/1.6 | Maximum Focal Length (mm) | 50 | Maximum Frame Rate | 30 fps | Minimum Focal Length | 6 mm | Night Vision | Yes | Optical Zoom | 8.3x |
| Analog Video Signal Format | CVBS | Maximum Frame Rate (fps) | 30 |
| Limited Warranty | 4 Year |
